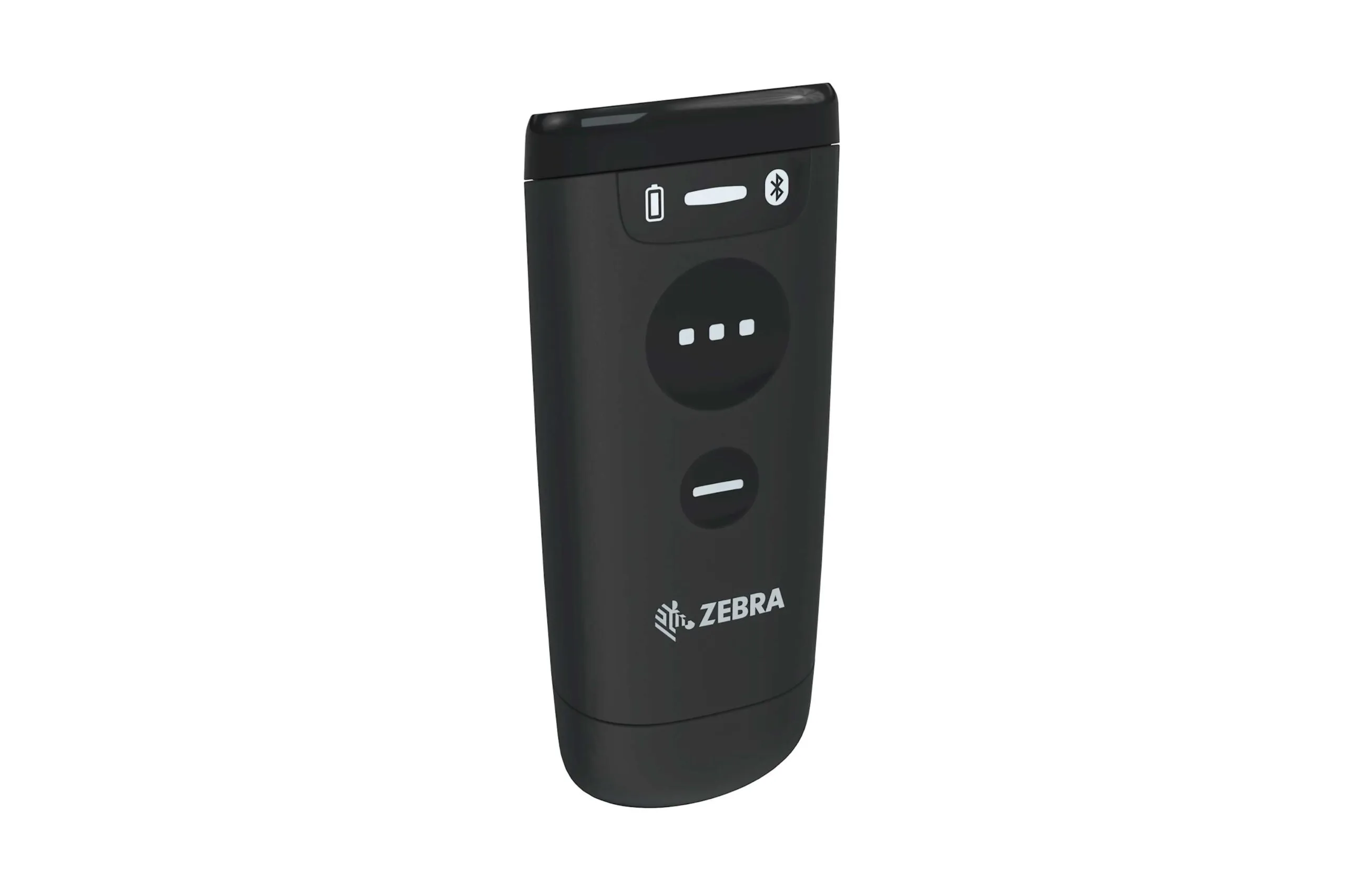

General Purpose Handheld
CS60 Series
Companion Scanner
The CS60 Series Companion Scanner features a groundbreaking design that easily converts between corded and cordless operation, handheld and hands-free, as your needs change. As a cordless scanner, the CS60 is small enough to tuck in a pocket and offers the latest mobile technology including contactless charging. As a corded scanner, the CS60 offers compact scanning for the checkout counter, self-service kiosk and more.
Key Features
CS60 Series
Corded & Cordless
Converts between corded and cordless operation as your needs change, for superior investment protection
Bluetooth 5.0
Certified BT 5.0 device with Class 1 Bluetooth for up to 330 ft./100 m roaming range
Contactless Charging
Qi wireless charging support for effortless, cable-free charging
1280x960 Sensor
High-resolution megapixel imaging sensor captures 1D/2D barcodes instantly
IP65 Sealed
IP65 rated sealing protects against dust and water jets for all-day reliability
Pocket-Sized
Ultra-compact 4.3 x 1.8 x 0.9 in. design weighing just 2.9 oz fits in any pocket
Technical Specifications
CS60 Series
| Scanner Type | 2D Imager (1280 x 960 pixels) |
| Connectivity | Bluetooth 5.0 with BLE; USB host interface |
| Decode Range (UPC 13 mil) | 1.8 in/4.6 cm to 19.5 in/49.5 cm |
| Bluetooth Range | Class 1: up to 330 ft/100 m |
| Drop Spec | 6.0 ft/1.8 m to concrete |
| Sealing | IP65 |
| Weight | Cordless: 2.9 oz / 83 g; Corded: 2.0 oz / 56 g |
| Dimensions (Scanner) | 4.3 x 1.8 x 0.9 in / 10.9 x 4.6 x 2.3 cm |
| Battery | 745 mAh lithium polymer (18 hrs / 13,000 scans) |
| Symbologies | All 1D/2D including QR, Data Matrix, PDF417, Aztec |
| Warranty | 3 years |
Full Specifications
CS60 Series
| Physical Characteristics | |
| Dimensions | Scanner: 0.9 in H x 1.8 in W x 4.3 in D (2.3 cm x 4.6 cm x 10.9 cm). Standard cradle: 4.5 in H x 3.1 in W x 4.2 in D (11.3 cm x 7.8 cm x 10.7 cm) |
| Weight | CS60 corded: 2.0 oz / 56.0 g. CS60 cordless: 2.9 oz / 83.0 g. Standard cradle: 4.9 oz / 138.0 g |
| Input Voltage Range | Scanner and standard cradle: host power 4.5 to 5.5 VDC; external power supply 4.5 to 5.5 VDC |
| Current | Operating at nominal voltage (5.0 V): 400 mA (typical). Standby (idle): 90 mA (typical). Standard cradle: 450 mA (typical) standard USB; 600 mA (typical) BC 1.2 USB |
| Color | Midnight Black |
| Supported Host Interfaces | USB certified |
| Keyboard Support | Supports over 90 international keyboards |
| FIPS Security Certification & TAA Compliance | FIPS 140-3 compliance certification; Trade Agreements Act (TAA) compliant (specific configurations required) |
| User Indicators | Direct decode indicator, good-decode LED, beeper (adjustable tone and volume), haptic feedback on decode, capacitive trigger with haptic and audible feedback, dedicated battery indicator, dedicated Bluetooth LED |
| Performance Characteristics | |
| Motion Tolerance (handheld) | Up to 20 in/51 cm per second for 13 mil UPC in optimized mode |
| Light Source | Aiming pattern: 525 nm circular green LED |
| Illumination | (1) warm white LED |
| Imager Field of View | 45° H x 34° V nominal |
| Imaging Sensor | 1280 x 960 pixels |
| Minimum Print Contrast | 20% minimum reflective difference |
| Pitch Tolerance | +/- 60° |
| Skew Tolerance | +/- 60° |
| Roll (Tilt) Tolerance | 0° to 360° |
| Minimum Element Resolution | Code 39 - 5.0 mil |
| User Environment | |
| Operating Temperature | 32° to 122 °F / 0° to 50 °C |
| Storage Temperature | -40 °F to 158 °F / -40 °C to 70 °C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop Specification | Designed to withstand multiple drops from 6.0 ft/1.8 m to concrete |
| Tumble Specification | Designed to withstand 250 tumbles from 1.5 ft/0.5 m (1 tumble = 0.5 cycles) |
| Sealing | Scanner: IP65 |
| Electrostatic Discharge (ESD) | Scanner and cradle: ESD per EN61000-4-2, +/-15 kV air discharge, +/-8 kV direct discharge and +/-8 kV indirect discharge |
| Ambient Light Immunity | 0 to 10,037 foot-candles / 0 to 108,000 lux |
| Radio Specifications | |
| Bluetooth Radio | Bluetooth standard version 5.0 with BLE: Class 1 330 ft (100 m) and Class 2 33 ft (10 m), Serial Port and HID profiles |
| Adjustable Bluetooth Power | Adjustable output power reduction from minus 10 dBm in 8 steps |
| MFi | MFi certified (specific configuration required) |
| Battery | |
| Battery Capacity/Type | 745 mAh lithium polymer battery |
| Scans per Battery Charge | 13,000 scans |
| Operating Time per Full Charge | 18 hours |
| Charge Time - Standard USB | Full charge: 6 hours |
| Charge Time - USB BC 1.2 | Full charge: 3 hours |
| Regulatory | |
| Environmental | EN 50581:2012; EN IEC 63000:2018 |
| Electrical Safety | IEC 62368-1 (Ed. 2); EN 62368-1:2014/AC:2015 |
| LED Safety | IEC 62471:2006 (Ed.1.0); EN 62471:2008 (LED) |
| EMI/RFI | EN 55032:2015/AC:2016 (Class B); EN 55035:2017; EN 61000-3-2:2014 (Class A); EN 61000-3-3:2013; CFR Title 47, Part 15, Subpart B, Class B |
| Environmental Compliance | RoHS (Directive 2011/65/EU; Amendment 2015/863); REACH (SVHC) 1907/2006 |
| Accessories | |
| Cordless Accessories | Standard cradle, spare battery, 4-slot scanner ShareCradle, 4-slot battery ShareCradle, lanyard and Qi Pad |
| Corded Accessories | Gooseneck Intellistand (weighted-balance and standard), adapter, corded USB converter |
| Symbology Decode Capability | |
| 1D | Base 32 (Italian Pharmacode), Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN |
| 2D | Aztec, Composite Codes, DataMatrix, Dotted DataMatrix, Dotcode, Han Xin, MaxiCode, PDF417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm |
| OCR | OCR-A, OCR-B, MICR, US Currency |
| Decode Ranges (typical, Near/Far) | |
| Code 39: 5 mil | 2.4 in/6.1 cm to 9.5 in/24.1 cm |
| Code 39: 20 mil | 2.5 in/6.4 cm to 26.0 in/66.0 cm |
| Code 128: 5 mil | 2.8 in/7.1 cm to 9.0 in/22.9 cm |
| PDF 417: 6.7 mil | 2.4 in/6.1 cm to 8.0 in/20.3 cm |
| UPC: 13 mil (100%) | 1.8 in/4.6 cm to 19.5 in/49.5 cm |
| DataMatrix: 10 mil | 2.9 in/7.4 cm to 8.0 in/20.3 cm |
| QR: 20 mil | 1.2 in/3.0 cm to 14 in/35.6 cm |
| Warranty | |
| Warranty | Three (3) years from date of shipment against defects in workmanship and materials, subject to Zebra's hardware warranty statement. The Qi Pad is warranted for one (1) month. See www.zebra.com/warranty for the full statement. |
Ideal Applications
CS60 Series
- Retail checkout
- Healthcare patient ID
- Inventory management
- Self-service kiosk
- Warehouse receiving
