Ultra-Rugged

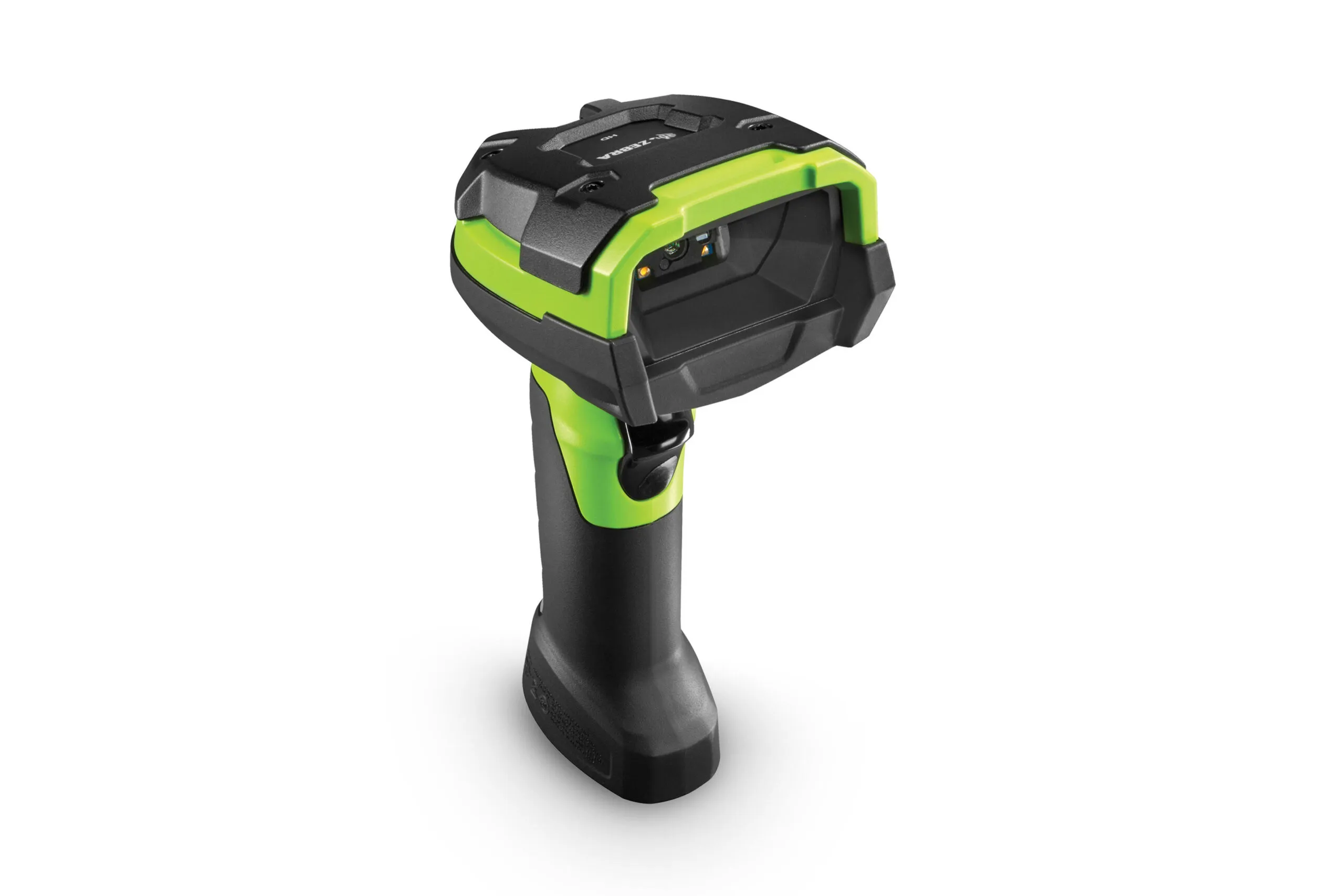

DS3600 Series
Ultra-Rugged Scanner
The DS3600 Series delivers unstoppable performance for the unique challenges of manufacturing, warehouse and outdoor environments. These ultra-rugged scanners withstand the harshest conditions, read at astonishing speeds and provide workers with non-stop, full-shift power. The featured DS3600-KD adds the versatility of an integrated color display and keypad — an indestructible device that combines the simplicity of a scanner with the flexibility to do more. Available in SR, ER, KD, DP, HD and HP configurations for every use case.
Key Features
DS3600 Series
Ultra-Rugged Build
Withstands multiple 10 ft./3 m drops to concrete and 7,500 tumbles at 3.3 ft./1 m
IP65 & IP68 Sealed
Fully sealed against dust and water for harsh industrial environments
Extended Range
ER models scan barcodes up to 70 ft./21.4 m away
Multi-Configuration
Available in SR, ER, KD, DP, HD and HP configurations
Cordless Freedom
Bluetooth 4.0 with up to 300 ft./100 m range from cradle
Hot-Swappable Battery
PowerPrecision+ battery with hot-swap capability for zero downtime
Technical Specifications
DS3600-KD Configuration
Key specifications for the DS3600-KD — the keypad-and-display model in the DS3600 Series.
Scanner Type
1D/2D imager, 1280 x 960 px sensor
Display
2 in. QVGA color display (320 x 240), Corning Gorilla Glass
Keypad
Backlit 19-key alphanumeric keypad with blue and green shift keys
Battery
PowerPrecision+ 3,100 mAh rechargeable lithium-ion
Scans per Charge
More than 60,000
Drop Spec
Multiple 10 ft./3 m drops to concrete at room temperature
Environmental Sealing
Scanner: IP65 and IP68; FLB cradle: IP65
Operating Temperature
-4 °F to 122 °F / -20 °C to 50 °C
Bluetooth Radio
Bluetooth Class 1, Version 4.0 (LE), Serial Port (SPP)
Radio Range
Outdoor line of sight: Class 1 min. 300 ft. (100 m); Class 2 min. 30 ft. (10 m)
Host Interfaces
USB, RS232, keyboard wedge; Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP, standard TCP/IP
Weight
18 oz / 510 g (including battery pack)
Full Specifications
DS3600-KD Detailed Specifications
Physical Characteristics
| Dimensions | 7.5 in. H x 3.1 in. W x 5.6 in. D 19 cm H x 7.8 cm W x 14.3 cm D |
| Weight | 18 oz / 510 g (including battery pack) |
| Input Voltage Range | Host power: 4.5 V DC min. and 5.5 V DC max. External power supply: 11.4 V DC min. and 12.6 V DC max. |
| Color | Industrial green |
| Display | 2 in. QVGA color display (320 x 240), Corning Gorilla Glass |
| Backlight | LED-backlit display |
| Keypad | Backlit 19-key alphanumeric keypad with blue and green shift key functions |
| Ambient Light Sensor | Automatically adjusts the brightness of the display and keypad backlight |
| Supported Host Interfaces | USB, RS232; keyboard wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP and standard TCP/IP |
| Battery | PowerPrecision+ 3,100 mAh rechargeable lithium-ion battery |
| User Indicators | Direct decode indicator, LED lights, sound and vibration |
Performance Characteristics
| Scans per Full Charge | More than 60,000 |
| Illumination | Two (2) warm white LEDs |
| Aimer | 655 nm laser |
| Imager Field of View | Horizontal: 31°, vertical: 23° |
| Image Sensor | 1280 x 960 pixels |
| Min. Print Contrast | Minimum reflective difference of 15% |
| Pitch / Skew / Roll Tolerance | +/- 60°; +/- 60°; 0-360° |
Decode Capabilities
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, composite codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible Code (Han Xin), postal codes |
| OCR | OCR-A/B, MICR-E13B, U.S. Currency Serial Number |
| IUID Support | Supports IUID parsing, the ability to read and separate IUID fields based on application requirements |
User Environment
| Operating Temperature | -4 °F to 122 °F / -20 °C to 50 °C |
| Storage Temperature | -40° to 158 °F / -40° to 70 °C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop Specification | Withstands multiple drops to concrete from 10 ft/3 m at room temperature Withstands multiple drops to concrete from 8 ft/2.4 m at -4 °F to 122 °F / -20 °C to 50 °C |
| Tumble Specification | 7,500 tumbles at 3.3 ft / 1 m |
| Environmental Sealing | Scanner: IP65 and IP68, per current IEC sealing specifications FLB cradle: IP65 |
| Electrostatic Discharge (ESD) | Per EN61000-4-2, ±25 kV air discharge, ±10 kV direct discharge and ±10 kV indirect discharge |
| Ambient Light Immunity | 0 to 10,037 foot-candles / 0 to 108,000 lux (direct sunlight) |
Wireless Connectivity
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), Serial Port (SPP) |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Bluetooth Low Energy |
| Radio Range | Outdoor line of sight: Class 1: min. 300 ft. (100 m); Class 2: min. 30 ft. (10 m) |
Decode Ranges (typical)
| Symbology / Resolution | Near / Far |
| Code 128: 5 mil | 6 to 14 in. / 15.2 to 35.6 cm |
| Code 128: 20 mil | 5 to 45 in. / 12.5 to 114.3 cm |
| Code 128: 40 mil | 2.8 to 80 in. / 7.1 to 203.2 cm |
| DataMatrix: 7.5 mil | 7 to 11 in. / 17.8 to 27.9 cm |
| DataMatrix: 10 mil | 6 to 15 in. / 15.2 to 38.1 cm |
Regulatory
| Environment | RoHS EN 50581: 2012 |
| Electrical Safety | EU safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; international safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013; U.S. and Canada safety: UL 60950-1, second edition, CAN/CSA C22.2 No. 60950-1-07 |
| Laser / LED Safety | International LED safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED); laser component recognized by UL, VDE and CU |
| EMI/RFI | IT emissions: EN 55022: 2010/AC: 2011 (Class B); IT immunity: EN 55024: 2010; heavy industrial: EN 61000-6-2: 2005/AC:2005; harmonic current emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); voltage variations and fluctuations: EN 61000-3-3: 2013; medical electrical equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); radio frequency devices: 47 CFR Part 15, Subpart B, Class B; digital apparatus: ICES-003 issue 5, Class B |
Embedded Applications
| Scan and Enter Quantity | Scan an item, then enter the quantity |
| Scan and Enter Quantity/Location | Scan an item, then enter the quantity and location |
| Inventory Scan | Enter data after scans while away from the host |
| Match Scan | Verify that the barcodes on the outside of a container match the barcodes of the items inside |
| Image Viewer | Preview a captured image before sending it to the host |
Utilities and Management
| 123Scan | Programs scanner parameters; updates firmware; displays scanned barcode data, scan statistics, battery health status and asset data; and prints reports. |
| Scanner SDK | Produces a full-featured scanner application, including documents, drivers, test utilities and sample source code. |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries asset information. |
| Network Connect | Seamlessly connects 3600 Series scanners directly to your industrial Ethernet network without third-party conversion equipment. |
Warranty
| Warranty | Subject to the terms of Zebra's hardware warranty statement, the DS3600-KD is warranted against defects in workmanship and materials for: thirty-six (36) months for the scanner and cradle, and twelve (12) months for the battery (from date of shipment). |
Ideal Applications
DS3600 Series
- Manufacturing
- Warehouse/DC
- Cold storage
- Outdoor yard
- Loading dock
