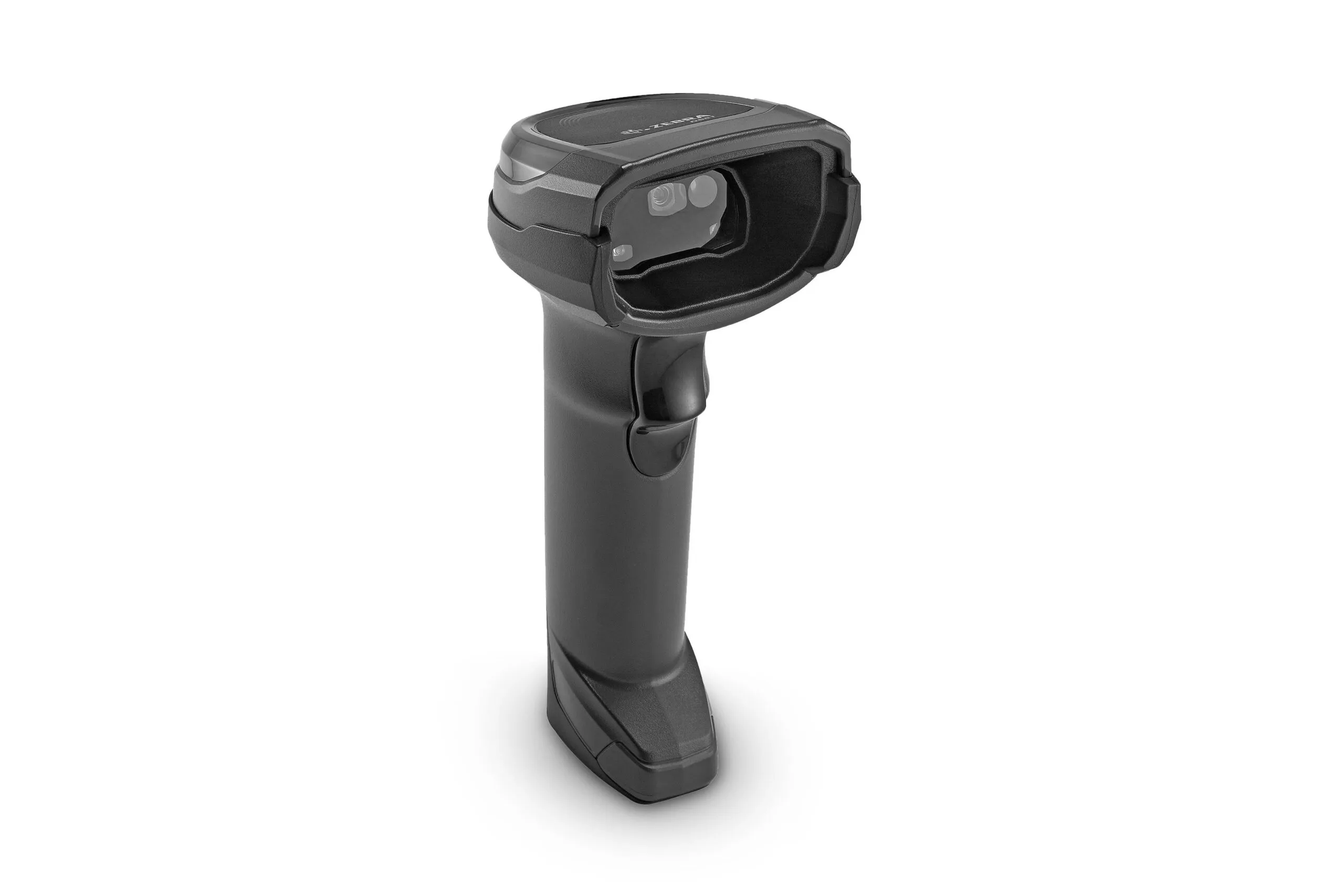

DS8100 Series
Premium Handheld Imager
The DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor and exclusive PRZM technology to instantly capture the widest range of 1D and 2D barcodes. Superior scan range up to 24 in./61 cm, a bright aiming spot, and ergonomic design improve checkout speed and customer satisfaction.
DS8100 Series
800 MHz Processor
Powerful microprocessor enables instant barcode capture regardless of condition or quality
PRZM Technology
Zebra exclusive intelligent imaging technology for the fastest capture of any barcode
24 in. Scan Range
Extended scanning range improves checkout speed and reduces cashier fatigue
Multi-Code Capture
Multi-Code Data Formatting captures multiple barcodes with one trigger press
DataCapture DNA
Zebra's suite of productivity and management tools simplify deployment and management
Ergonomic Design
Lightweight balanced design reduces fatigue during full-shift scanning
DS8100 Series
| Scanner Type | 2D handheld imager, 1280 x 960 pixel sensor |
| Maximum Scan Range | Up to 24.0 in./61.0 cm (UPC 13 mil, 100%) |
| Illumination / Aiming | (2) 645 nm red LEDs; 617 nm circular amber aiming LED |
| Host Interfaces | USB, RS-232, keyboard wedge, TGCS (IBM) 46XX via RS485 |
| Bluetooth Radio | Bluetooth 4.0 with BLE; Class 1 up to 330 ft./100 m |
| Battery | PowerPrecision+ 2,500 mAh Li-ion; up to 65,000 scans |
| Drop Spec | Multiple drops from 6.0 ft./1.8 m to concrete |
| Tumble Spec | 2,000 tumbles from 1.5 ft./0.5 m |
| Environmental Sealing | IP52 |
| Operating Temperature | 32 °F to 122 °F / 0 °C to 50 °C |
| Symbologies | All major 1D & 2D codes, plus Digimarc digital watermark |
| Warranty | DS8108: 5 years; DS8178: 3 years |
DS8100 Series Specifications
| Physical Characteristics | |
|---|---|
| Dimensions | DS8108 corded and DS8178 cordless: 6.6 in. H x 2.6 in. W x 4.2 in. D / 16.8 cm H x 6.6 cm W x 10.7 cm D. Standard cradle: 2.8 in. H x 3.3 in. W x 8.3 in. D / 7.1 cm H x 8.4 cm W x 21.1 cm D. Presentation cradle: 2.9 in. H x 3.7 in. W x 4.8 in. D / 7.4 cm H x 9.4 cm W x 12.2 cm D. |
| Weight | DS8108 corded: 5.4 oz / 154 g. DS8178 cordless: 8.3 oz / 235.3 g. Wall/desk cradle: 7.1 oz / 202 g. Presentation cradle: 6.5 oz / 182 g. |
| Input Voltage Range | DS8108: 4.5 to 5.5 VDC. DS8178 cradles: 5 V: 4.7 to 5.5 VDC; 12 V: 10.8 to 13.2 VDC. |
| Current | Operating current at rated voltage (5.0 V) for the corded DS8108: 450 mA. Cradle: 470 mA (typical) with standard USB; 743 mA (typical) at 12 V. |
| Color | Nova white, twilight black |
| Supported Host Interfaces | USB Certified, RS232, keyboard wedge, TGCS (IBM) 46XX via RS485 |
| Keyboard Support | Supports more than 90 international keyboards |
| FIPS Security Certification | FIPS 140-2 compliance certification |
| User Indicators | Direct decode indicator; good-decode LED indicators; rear LED indicators; beeper (adjustable tone and volume); dedicated charging indicator |
| Performance Characteristics | |
| Light Source | Aiming pattern: 617 nm circular amber LED |
| Illumination | (2) 645 nm red LEDs |
| Imager Field of View | 48° H x 37° V nominal |
| Image Sensor | 1280 x 960 pixels |
| Minimum Print Contrast | 16% minimum reflective difference |
| Pitch / Skew / Roll Tolerance | +/- 60°; +/- 60°; 0-360° |
| Imaging Characteristics | |
| Graphics Format | Images can be exported as Bitmap, JPEG or TIFF |
| Image Quality | 109 DPI on an A4 document |
| Minimum Element Resolution | Code 39 - 3.0 mil; Code 128 - 3.0 mil; Data Matrix - 6.0 mil; QR Code - 6.0 mil; PDF - 5.0 mil |
| User Environment | |
| Operating Temperature | 32 °F to 122 °F / 0 °C to 50 °C |
| Charging Temperature | 32 °F to 104 °F / 0 °C to 40 °C |
| Storage Temperature | -40 °F to 158 °F / -40 °C to 70 °C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop Specification | Designed to withstand multiple drops from 6.0 ft / 1.8 m to concrete |
| Tumble Specification | Designed to withstand 2,000 tumbles from 1.5 ft / 0.5 m |
| Environmental Sealing | IP52 |
| Electrostatic Discharge (ESD) | DS8108/DS8178 and cradles: ESD per EN61000-4-2, +/-15 kV air discharge, +/-8 kV direct discharge and +/-8 kV indirect discharge |
| Ambient Light Immunity | 0 to 9,000 foot-candles / 0 to 96,840 lux |
| Radio Specifications | |
| Bluetooth Radio | Bluetooth Standard version 4.0 with BLE: Class 1 330 ft / 100 m and Class 2 33 ft / 10 m, serial port and HID profiles |
| Adjustable Bluetooth Power | Class 1: Output power reduction adjustable from 4 dBm in 8 steps. Class 2: Output power reduction adjustable from 2 dBm in 8 steps. |
| Power | |
| PowerPrecision+ Lithium-Ion Battery | Capacity: 2,500 mAh. Scans from full charge: 65,000. Charge time empty to full: 9 hours via USB. Charge time from audible low-battery warning to scan-ready at 20% of full charge (default): 3 hours via USB. |
| PowerCap Capacitor | Capacity: 440 F. Scans from full charge: 2,000. Scans from scan-ready at 20% of full charge (default): 200. Scans from scan-ready at 15% of full charge: 100. Charge time empty to full: 30 hours via USB. Charge time from audible low-battery warning to scan-ready at 20% of full charge (default): 90 seconds via USB. Charge time from audible low-battery warning to scan-ready at 15% of full charge: 35 seconds via USB. |
| Regulatory | |
| Electrical Safety | EN 60950-1 2nd Ed. + A11 + A1 + A12 + A2:2013, IEC 60950-1 2nd Ed. + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 |
| Environmental Policies | RoHS EN 50581 |
| LED Safety | IEC 62471 |
| IT Emissions | EN 55022 (Class B); EN 55032 (Class B) |
| IT Immunity | EN 55024 |
| Harmonic Current Emissions | EN 61000-3-2 |
| Voltage Variations and Fluctuations | EN 61000-3-3 |
| Radio Frequency Devices | CFR Title 47, Part 15, Subpart B, Class B |
| Digital Apparatus | ICES-003 Issue 6, Class B |
| Accessories | |
| Accessories | Standard cradle, presentation cradle, wall-mount bracket, spare battery, spare PowerCap, document capture |
| Decode Capabilities | |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharmacode) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, MaxiCode, QR Code, Micro QR, Chinese Sensible Code (Han Xin), Postal Codes, SecurPharm, DotCode, Dotted Data Matrix |
| Digimarc | Digital watermark technology |
| Decode Ranges (Typical) | |
| Code 39: 3 mil | 2.2 in / 5.6 cm to 5.0 in / 12.7 cm |
| Code 39: 20 mil | 0 in / 0 cm to 36.8 in / 93.5 cm |
| Code 128: 3 mil | 2.6 in / 6.6 cm to 4.5 in / 11.4 cm |
| Code 128: 5 mil | 1.6 in / 4.1 cm to 8.4 in / 21.3 cm |
| Code 128: 15 mil | 0 in / 0 cm to 27.1 in / 68.8 cm |
| PDF 417: 5 mil | 2.3 in / 5.8 cm to 6.4 in / 16.3 cm |
| PDF 417: 6.7 mil | 1.8 in / 4.6 cm to 8.5 in / 21.6 cm |
| UPC: 13 mil (100%) | 0 in / 0 cm to 24.0 in / 61.0 cm |
| Data Matrix: 7.5 mil | 2.1 in / 5.3 cm to 6.9 in / 17.5 cm |
| Data Matrix: 10 mil | 1.1 in / 2.8 cm to 9.9 in / 25.1 cm |
| QR: 20 mil | 0.1 in / 0.3 cm to 17.6 in / 44.7 cm |
| Warranty | |
| Warranty | Subject to the terms of Zebra's hardware warranty statement, the DS8178 and CR8178 are warranted against defects in workmanship and materials for three years from the date of shipment. The DS8108 is warranted against defects in workmanship and materials for five years from the date of shipment. |
| Recommended Services | |
| Services | Zebra OneCare Select; Zebra OneCare Essential |
| Utilities and Management | |
| 123Scan | Programs scanner parameters; updates firmware; displays scanned barcode data, scanning statistics, battery health, asset data; and prints reports. |
| Symbol Scanner SDK | Creates a full-featured scanner application, including documentation, drivers, test utilities and sample source code. |
| Scanner Management Service (SMS) | Remotely manage your Zebra scanner and query asset information. |
Best-in-Class Performance, Innovation and Manageability
When your business demands the very best in performance, workforce productivity and customer service, the Zebra DS8100 Series handheld imagers deliver unprecedented performance. An 800 MHz microprocessor, a 1280 x 960 pixel megapixel sensor and PRZM intelligent imaging technology capture virtually any 1D or 2D barcode instantly — even damaged, dirty or poorly printed codes — while a 617 nm circular amber aiming pattern and a working range of up to 24.0 in./61.0 cm keep operators fast and accurate at the point of sale.
The DS8100 Series brings innovation beyond barcodes: Digimarc digital watermark support, full document and image capture, and Multi-Code Data Formatting that processes several barcodes in a single trigger pull. The cordless DS8178 pairs over Bluetooth 4.0 with BLE and is powered by either a 2,500 mAh PowerPrecision+ battery (up to 65,000 scans) or the PowerCap super-capacitor for rapid 90-second top-ups. With an IP52 rating, a 6.0 ft./1.8 m drop spec and unmatched manageability through Zebra's DataCapture DNA tool suite (123Scan, the Scanner SDK and Scanner Management Service), the DS8100 Series is built to perform shift after shift.
DS8100 Series
- Retail POS
- Healthcare
- Government
- Financial services
- Light manufacturing
