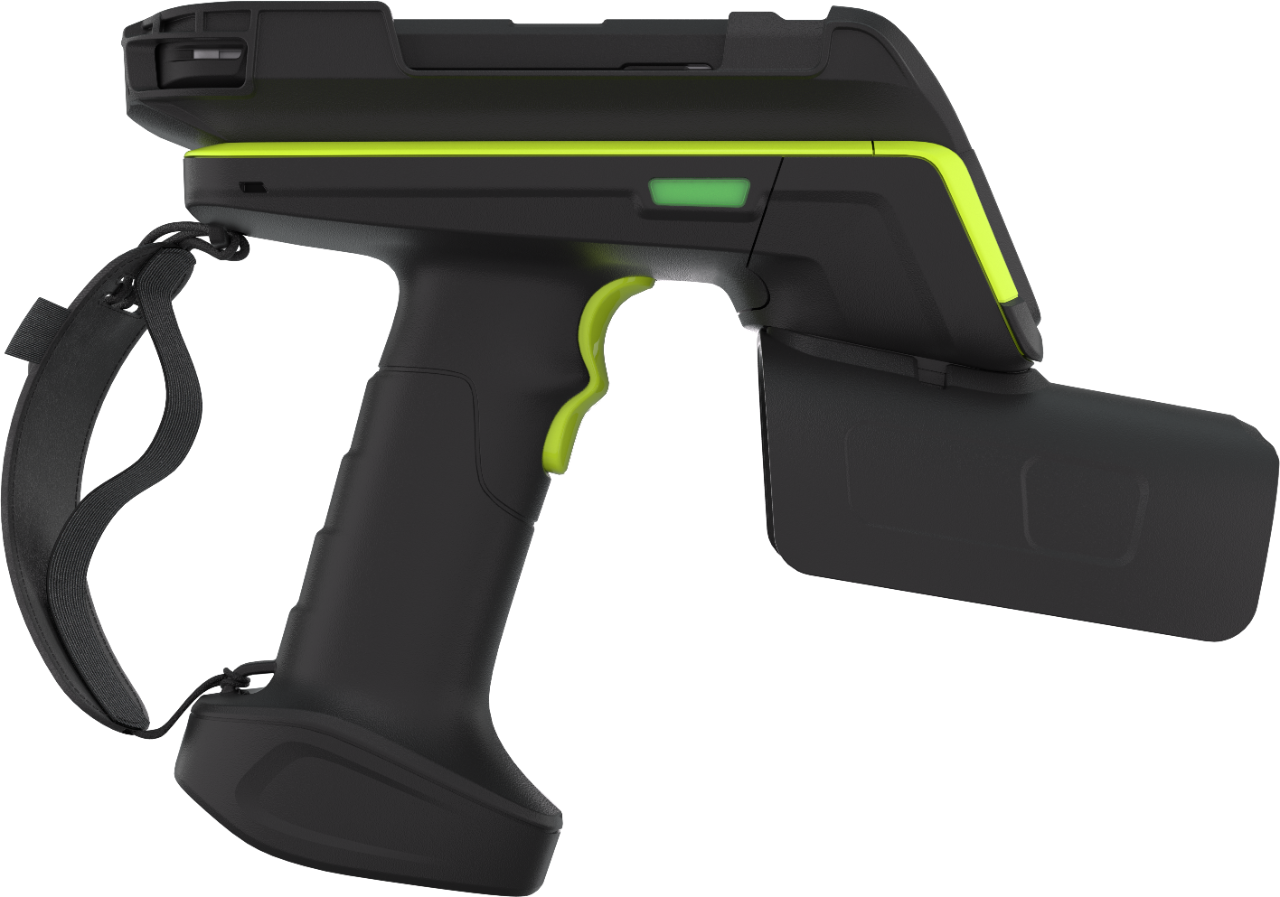

RFD9090 Long-Range Ultra-Rugged UHF RFID Sled
Tireless. Versatile. Ready for the future. The ultra-rugged RFD90 sleds deliver industry-leading performance in extreme conditions. The long-range RFD9090 configuration reads at a nominal range of 95 ft / 29 m and at a rate of more than 1300 tags per second.
RFD9090 Long-Range Ultra-Rugged UHF RFID Sled
6 Features
Long-range RFID performance: a nominal read range of 95 ft / 29 m on the RFD9090 and a read rate of more than 1300 tags per second
Choice of the SE4750MR standard range imager or the SE4850 extended range imager for barcode capture
Connects through the 8-pin electronic eConnex™ connection, Bluetooth 5.3 or USB to Zebra mobile computers and tablets, third-party tablets and smartphones, and Windows PCs
Remote management over Wi-Fi 6, Ethernet cradles or the paired host device
Ultra-rugged design: IP65 (spray) and IP67 (immersion) sealing, multiple drops from 6 ft / 1.8 m to concrete, and an operating temperature range of -4 °F to 131 °F / -20 °C to 55 °C
PowerPrecision+ 7000 mAh quick-release lithium-ion battery with a user-programmable triple-function trigger
4 configurations
Zebra RFD90 Series Spec Sheet
| Specification | Detail |
|---|---|
| Physical Characteristics | |
| Dimensions | RFD9030: 7.4 x 3.2 x 6.8 in / 189 x 83.4 x 173 mm RFD9090: 9.8 x 3.8 x 6.8 in / 248 x 96.3 x 173 mm |
| Weight | RFD9030 with SE4750MR: 25 oz / 714 g RFD9030 with SE4850: 26.5 oz / 751 g RFD9090 with SE4750MR: 26.8 oz / 759 g RFD9090 with SE4850: 28.2 oz / 799 g |
| Power | PowerPrecision+ 7000 mAh quick-release lithium-ion battery |
| Notification | Bluetooth status LED Wi-Fi status LED Decode LED Battery status LED Audible indicator |
| User Input | User-programmable triple-function trigger |
| RFID Performance | |
| Supported Standards | EPC Class 1 Gen2; EPC Gen2 V2 |
| RFID Engine | Zebra proprietary radio technology |
| Fastest Read Rate | More than 1300 tags/second |
| Nominal Read Range | RFD9030: 40 ft / 12 m RFD9090: 95 ft / 29 m |
| RF Frequency Range and System Output | RFD9030: United States: 902-928 MHz; 0-30 dBm (EIRP) EU: 865-868 MHz; 0-30 dBm (EIRP) 916.3, 917.5 and 918.7 MHz; 0-30 dBm (EIRP) Japan: 916-921 MHz (with LBT); 0-30 dBm (EIRP) RFD9090: United States: 902–928 MHz; 5.5–35.5 dBm (EIRP) EU: 865–868 MHz; 5.5–35.0 dBm (EIRP) 916.3, 917.5 and 918.7 MHz; 5.5–35.5 dBm (EIRP) Japan: 916–921 MHz (with LBT); 5.5–35.5 dBm (EIRP) |
| Wireless LAN | |
| Radio | IEEE 802.11 ax/ac/a/b/g/n 2X2, MU-MIMO, IPv4 |
| Data Rates | 5 GHz physical data rates up to 1.2 Gbps; 2.4 GHz physical data rates up to 458 Mbps |
| Operating Channels | Channels 1–14: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14; Channels 36–196: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165, 172, 183, 184, 185, 187, 188, 189, 192, 196; Channel bandwidth: 20, 40 and 80 MHz |
| Security and Encryption | TKIP, AES, EAP-TLS, EAP-PEAPv2, EAP-TTLS, EAP-FAST, PEAP, LEAP |
| SE4750MR Standard Range Imager | |
| Sensor Resolution | 1280 x 960 pixels |
| Field of View | Horizontal: 31°, vertical: 23° |
| Horizontal Tolerance | ±60° |
| Tilt Tolerance | ±60° |
| Rotation Tolerance | 360° |
| Focal Distance | From front of engine: 14.2 in / 36.1 cm |
| LED Aim | 655 nm laser |
| Illumination | 2 warm white LEDs |
| SE4850 Extended Range Imager | |
| Sensor Resolution | 1280 x 800 pixels |
| Field of View | Far: horizontal: 12°, vertical: 7.6° Near: horizontal: 32°, vertical: 20° |
| Horizontal Tolerance | ±60° |
| Tilt Tolerance | ±60° |
| Rotation Tolerance | 360° |
| Focal Distance | Far: 15 to 350 in / 38.1 to 889 cm from front of engine Near: 11 in / 27.8 cm from front of engine |
| Aim Element | 655 nm laser |
| Illumination Element | 660 nm hyper-red LED |
| Minimum Print Contrast | 25% |
| User Environment | |
| Drop Specification | Multiple drops from 6 ft / 1.8 m to concrete |
| Tumble Specification | 500 cycles (1000 drops from 1.6 ft / 0.5 m) at room temperature |
| Operating Temperature | -4 °F to 131 °F / -20 °C to 55 °C |
| Storage Temperature | -40 °F to 158 °F / -40 °C to 70 °C |
| Humidity | 5% to 85% non-condensing |
| Electrostatic Discharge | ±15 kV air discharge ±8 kV direct discharge ±8 kV DC indirect discharge |
| Sealing | IP65 (spray) and IP67 (immersion) |
| Accessories | |
| Cradles and Charging | Stand Wall USB cube for stand 1-slot charge cradle 1-slot charge cradle with USB Multi-slot charge cradle Multi-slot charge and Ethernet cradle 4-slot battery charger |
| Other Accessories | eConnex™ adaptors for compatible Zebra mobile computers Battery lock foot Belt holster |
| Communication | |
| Host Connection | 8-pin electronic connection (eConnex™) Bluetooth 5.3 USB support |
| Host Computer | Zebra mobile computers and tablets Third-party tablets and smartphones Windows PCs |
| Mobile Computer Adaptors | eConnex, Bluetooth, OtterBox uniVERSE Protector |
| Bluetooth Profile Support | SPP profile HID profile Apple iAP2/MFi |
| Remote Management | Wi-Fi 6 Ethernet cradles Via paired host device |
| Gen2X Standard | Supports the industry Gen2X communications standard. |
| Regulatory | |
| EMI/EMC | FCC Part 15, Subpart B, Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55024; EN 55032 Class B |
| Electrical Safety | IEC 62368-1 (ed. 2) UL 62368-1, 2nd edition; CAN/CSA-C22.2 No. 62368-1-14 |
| RF Exposure | EU: EN 50364, EN 62369-1, EN 50566, EN 62311; US: FCC Part 2.1093, OET Bulletin 65 Supplement C; Canada: RSS-102 |
| RFID | EU: EN 302 208; FCC Part 15 Subpart C; Canada: RSS-247 |
| LED Classification | IEC 62471 |
About the RFD9090 Long-Range UHF RFID Sled
Ultra-rugged RFD90 UHF RFID sleds. Tireless. Versatile. Ready for the future. Optimize your workflows: the ultra-rugged RFD90 sleds deliver industry-leading performance in extreme conditions.
The long-range RFD9090 configuration reads at a nominal range of 95 ft / 29 m — versus 40 ft / 12 m for the standard-range RFD9030 — with RF output of 5.5–35.5 dBm (EIRP) in the United States and a read rate of more than 1300 tags per second. It connects to Zebra mobile computers and tablets, third-party tablets and smartphones, and Windows PCs through the 8-pin electronic eConnex™ connection, Bluetooth 5.3 or USB, while remote management is available over Wi-Fi 6, Ethernet cradles or the paired host device. IP65 (spray) and IP67 (immersion) sealing, multiple drops from 6 ft / 1.8 m to concrete and the PowerPrecision+ 7000 mAh quick-release lithium-ion battery let it operate in extreme conditions.
