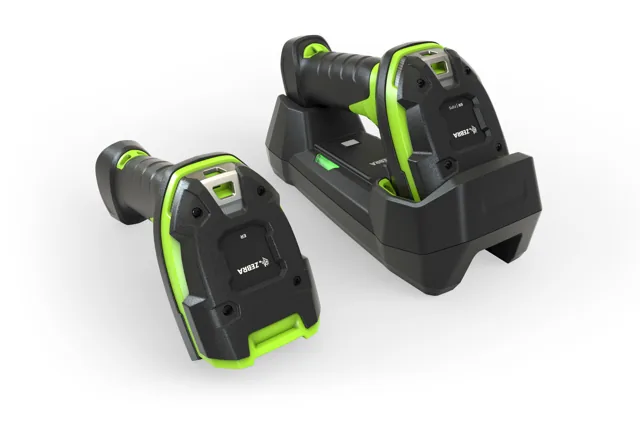

LI3600-SR Ultra-Rugged Scanner
The Zebra LI3600-SR ultra-rugged scanner delivers unbeatable performance for standard-range 1D barcode capture and gets the job done in the most hostile environments. With superior wireless technology and unmatched ease of management, it advances 1D barcode capture in a truly ultra-rugged scanner. Available in corded (LI3608) and cordless (LI3678) standard-range and extended-range models.
LI3600-SR Ultra-Rugged Scanner
8 Features
Unbeatable performance for standard-range 1D barcode capture, with advanced capture in a truly ultra-rugged scanner
Withstands multiple 10.0 ft / 3.0 m drops to concrete and 7,500 tumbles at 3.3 ft / 1 m
Dual IP65 and IP68 sealing per current IEC sealing specifications
Operates in extreme cold and heat: corded -30° to 50 °C, cordless -20° to 50 °C, and 5% to 95% non-condensing humidity
3100 mAh PowerPrecision+ rechargeable lithium-ion battery delivers more than 140,000 scans per full charge
Superior wireless technology: Bluetooth Class 1, version 4.0 (LE) with SPP and HID profiles and a minimum 300 ft / 100 m range
Unmatched ease of management with 123Scan, the Scanner SDK, Scanner Management Service (SMS) and Network Connect
Connects directly to industrial Ethernet (EtherNet/IP, PROFINET, Modbus TCP) plus USB, RS232 and keyboard wedge interfaces
10 configurations
About the Zebra LI3600-SR Ultra-Rugged Scanner
The Zebra LI3600-SR ultra-rugged scanner delivers unbeatable performance for standard-range 1D barcode capture and gets the job done in the most hostile environments. It advances 1D barcode capture in a truly ultra-rugged scanner, pairing superior wireless technology with unmatched ease of management.
Built to survive, the LI36X8 withstands multiple 10.0 ft / 3.0 m drops to concrete and 7,500 tumbles, and carries dual IP65 and IP68 sealing per current IEC sealing specifications. It operates across a wide temperature range — corded from -30° to 50 °C and cordless from -20° to 50 °C — and reads through 5% to 95% non-condensing humidity. The 3100 mAh PowerPrecision+ rechargeable lithium-ion battery delivers more than 140,000 scans per full charge.
The cordless LI3678 uses a Bluetooth Class 1, version 4.0 (LE) radio with SPP and HID profiles and a minimum 300 ft / 100 m line-of-sight range, while the device connects to hosts over USB, RS232, keyboard wedge and industrial Ethernet (EtherNet/IP, PROFINET, Modbus TCP). As an authorized Zebra partner, Barrdega supplies the LI3600-SR in corded (LI3608) and cordless (LI3678) standard-range and extended-range models — request a quote for project pricing.
Zebra LI3600-SR — Complete Specifications
| Specification | Detail |
|---|---|
| Dimensions | Corded: 7.3 in H x 3.0 in W x 5.2 in D / 18.5 cm H x 7.6 cm W x 13.2 cm D. Cordless: 7.3 in H x 3.0 in W x 5.6 in D / 18.5 cm H x 7.7 cm W x 14.2 cm D |
| Weight | Corded: 10.1 oz / 287 g. Cordless: 13.6 oz / 386.5 g |
| Input Voltage Range | Host power: 4.5 V DC min and 5.5 V DC max. External power supply: 11.4 V DC min and 12.6 V DC max |
| Operating Current | LI3608 (corded): 170 mA (typical RMS) |
| Standby Current | LI3608 (corded): 40 mA (typical RMS) |
| Color | Industrial green |
| Supported Host Interfaces | USB, RS232; keyboard wedge. Industrial Ethernet: EtherNet/IP, PROFINET, Modbus TCP and standard TCP/IP |
| Battery | 3100 mAh PowerPrecision+ rechargeable lithium-ion battery |
| User Indicators | Direct decode indicator, LED lights, sound and vibration |
| Reads per Full Charge | More than 140,000 |
| Illumination | Two (2) 617 nm amber LEDs |
| Aiming | 655 nm laser |
| Imager Field of View | 35° |
| Image Sensor | 1500 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Pitch / Skew / Roll | Skew: ± 65°; Pitch: ± 65°; Roll: ± 45° |
| 1D Symbologies | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharmacode) |
| Operating Temperature | Corded: -22° to 122 °F / -30° to 50 °C. Cordless: -4° to 122 °F / -20° to 50 °C |
| Storage Temperature | -40 °F to 158 °F / -40 °C to 70 °C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | LI36X8: withstands multiple drops to concrete from 10.0 ft / 3.0 m at room temperature. LI3678: from 8.0 ft / 2.4 m at -20 °C to 50 °C. LI3608: from 8.0 ft / 2.4 m at -30 °C to 50 °C |
| Tumble Specification | 7,500 tumbles at 3.3 ft / 1 m |
| Sealing | Scanner: IP65 and IP68 per current IEC sealing specifications. FLB cradle: IP65 |
| ESD | Per EN61000-4-2, ±25 kV air discharge, ±10 kV direct discharge and ±10 kV indirect discharge |
| Ambient Light Immunity | 0 to 10,037 foot-candles / 0 to 108,000 lux (direct sunlight) |
| Bluetooth Radio | Bluetooth Class 1, version 4.0 (LE), serial port (SPP) and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for classic Bluetooth; 1 Mbit/s (0.27 Mbit/s) for Bluetooth Low Energy |
| Radio Range | Outdoor direct line of sight: Class 1: minimum 300 ft (100 m); Class 2: minimum 30 ft (10 m) |
| Symbology / Resolution | Near / Far |
| Code 39: 4 mil | 4.0 to 10.0 in / 10.2 to 25.4 cm |
| Code 39: 7.5 mil | 1.5 to 19.0 in / 3.8 to 48.3 cm |
| UPC: 13 mil (100%) | 1.0 to 31.0 in / 2.5 to 78.7 cm |
| Code 39: 20 mil | 1.0 to 42.0 in / 0 to 106.7 cm |
| 123Scan | Programs scanner parameters, updates firmware, provides scanned barcode data and prints reports |
| Scanner SDK | Produces a full-featured scanner application including documents, drivers, test utilities and sample source code |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries asset information |
| Network Connect | Seamlessly connects 3600 Series scanners directly to your industrial Ethernet network without additional conversion equipment |
| Environmental | RoHS EN 50581: 2012 |
| Electrical Safety | EU safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013; US and Canada safety: UL 60950-1 second edition, CAN/CSA-C22.2 No. 60950-1-07 |
| LED Safety | International LED safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED) |
| EMI/RFI | IT emissions: EN 55022: 2010/AC: 2011 (Class B); IT immunity: EN 55024: 2010; Heavy industrial: EN 61000-6-2: 2005/AC:2005; Harmonic current emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage variations and fluctuations: EN 61000-3-3: 2013; Medical electrical equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (modified); RF devices: CFR Title 47, Part 15, Subpart B, Class B; Digital apparatus: ICES-003 issue 5, Class B |
| Warranty | Subject to the terms of Zebra's hardware warranty statement, the LI3608-SR/LI3678-SR is warranted against defects in workmanship and materials for a period of three (3) years from the date of shipment |
| Recommended Services | Zebra OneCare™ Select; Zebra OneCare Essentials |
