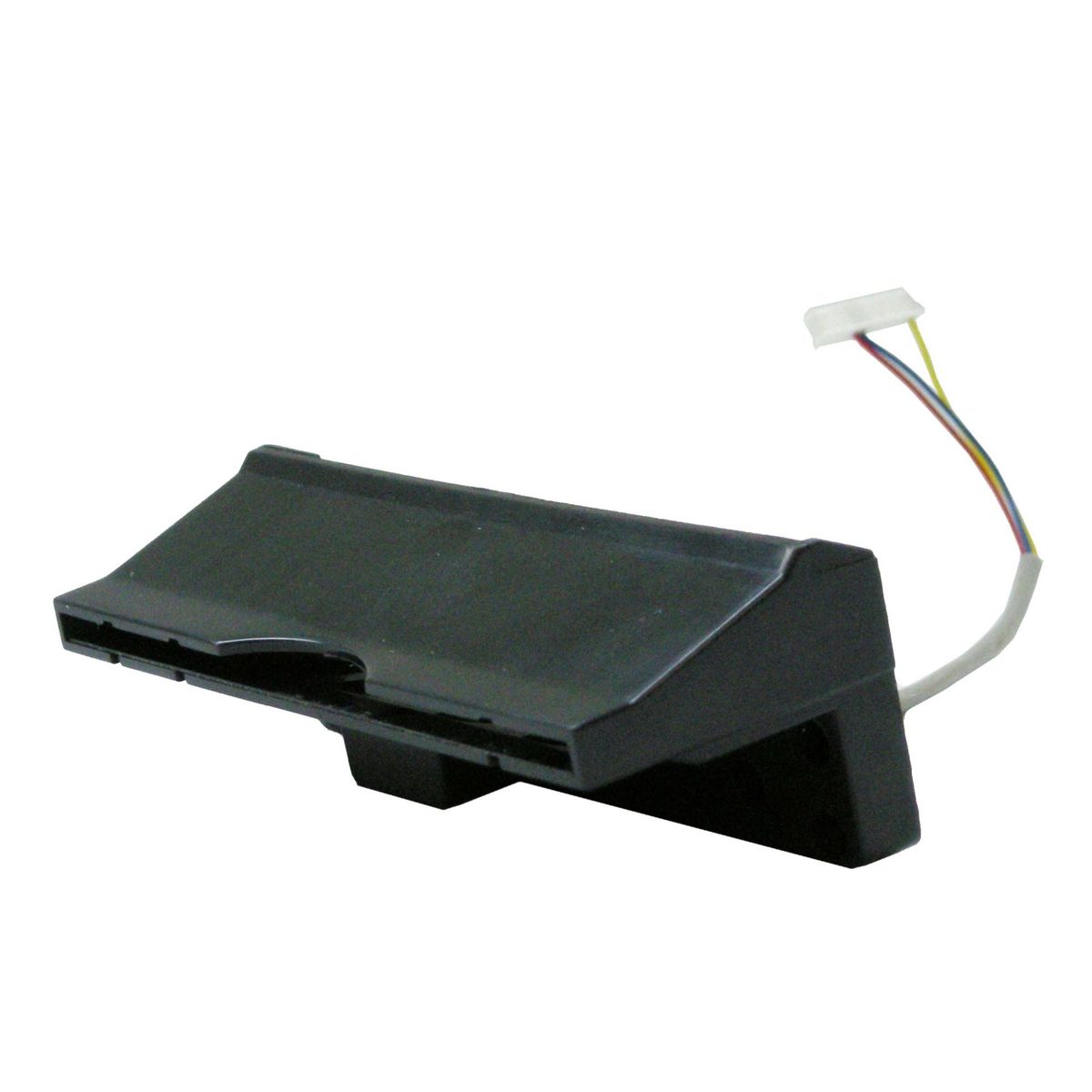

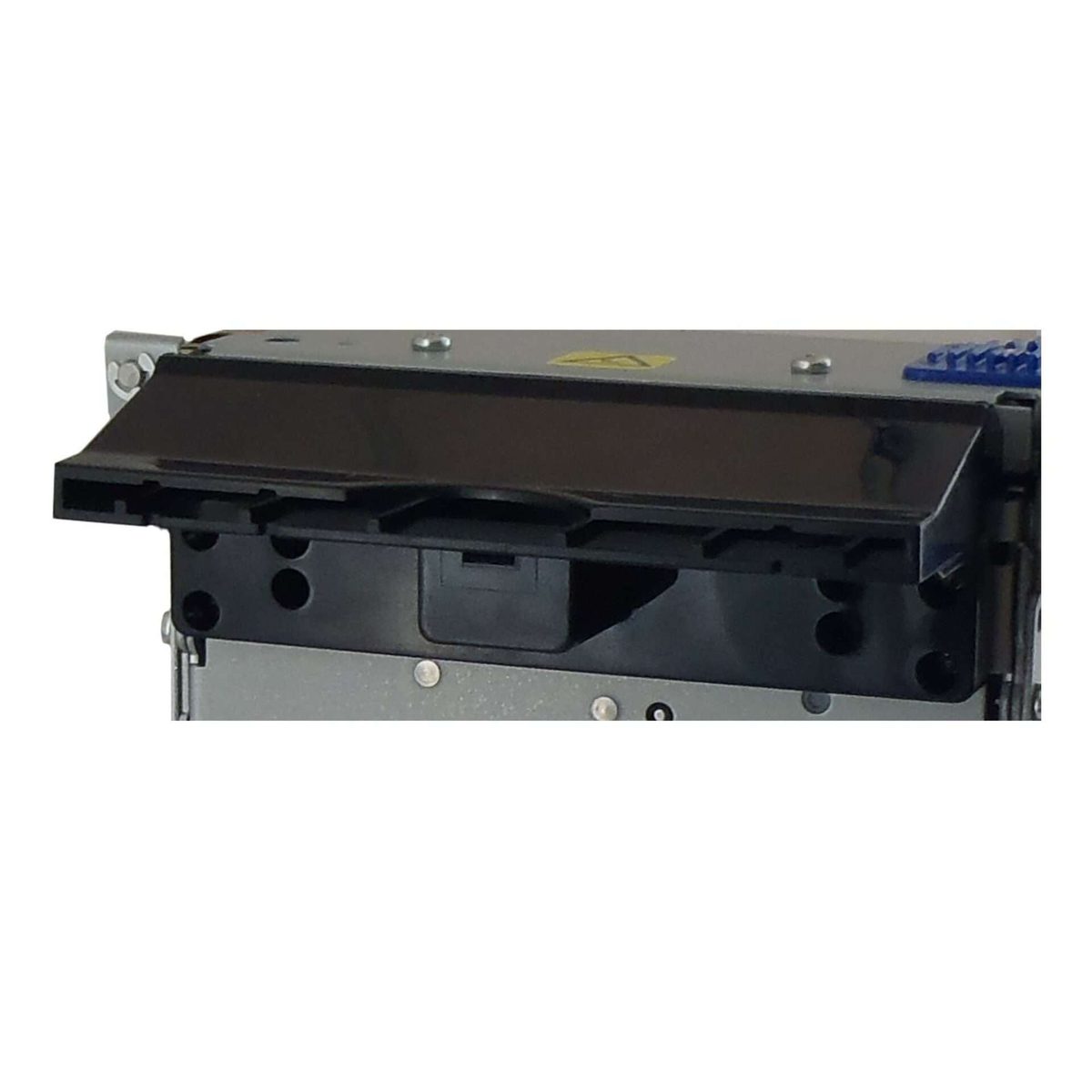

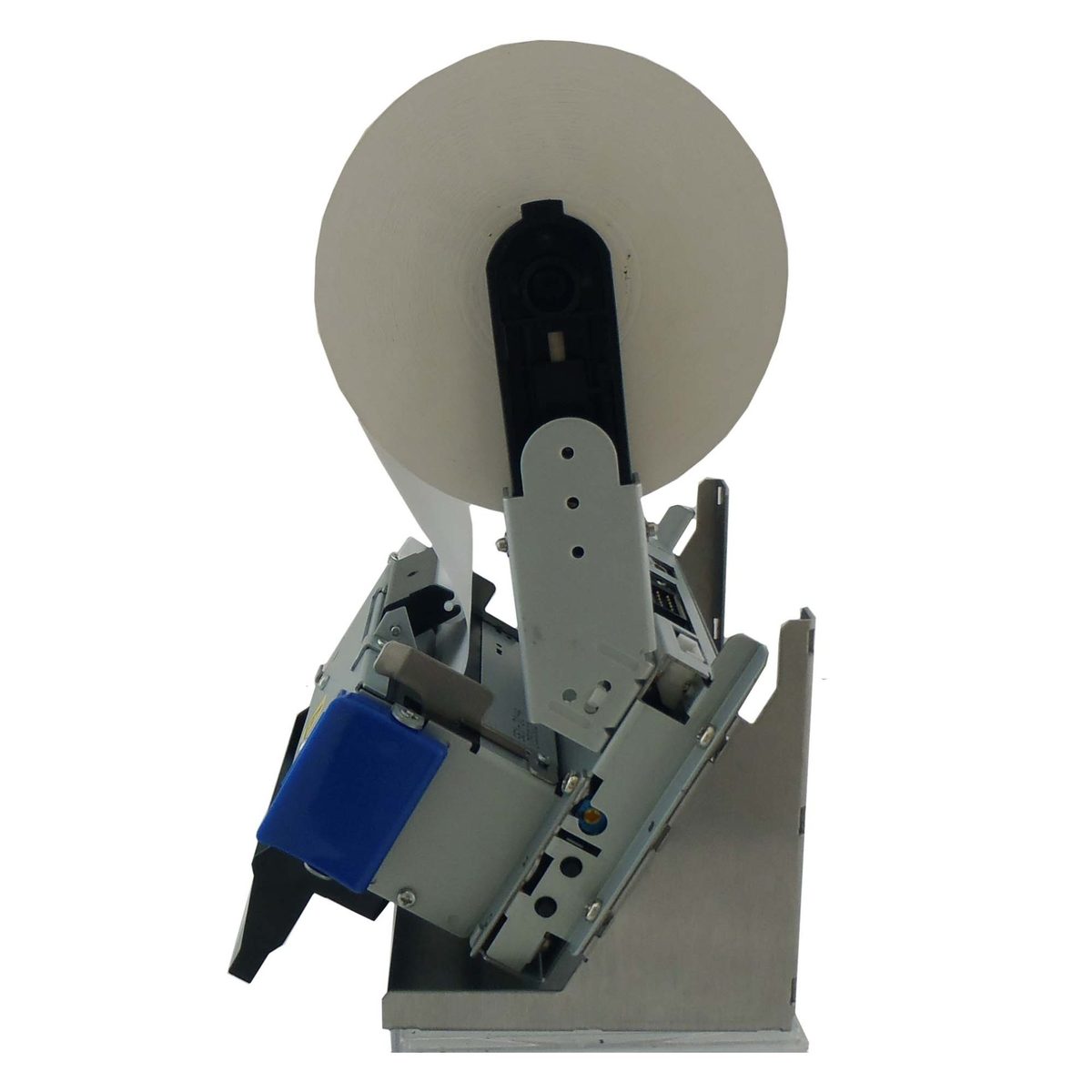

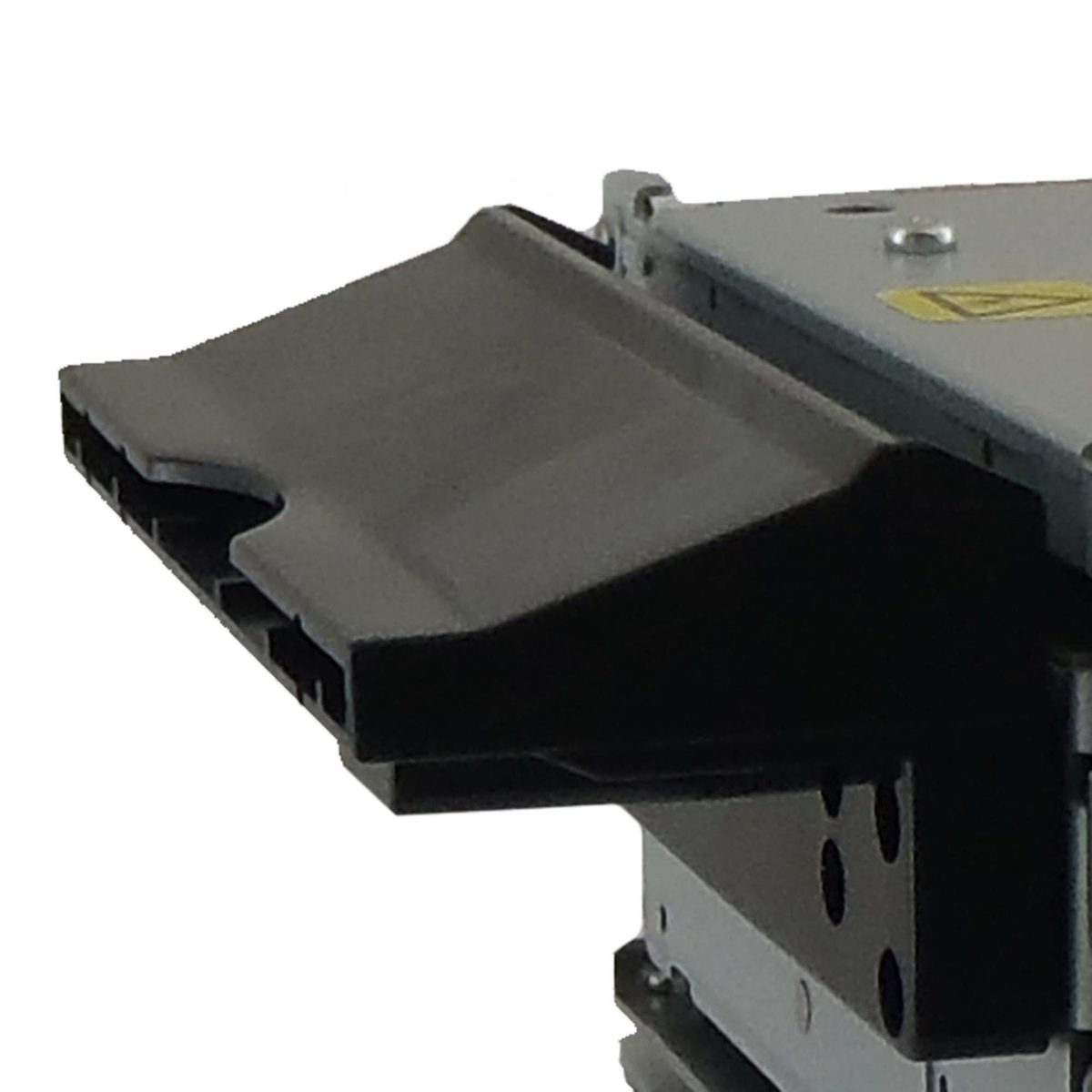

BZ-SK1-BEZEL
SK1 · Standard Bezel · Paper Sensor · No Separator
This standard bezel is designed for use with the SK1 series kiosk printers with no presenter.
PN 37963490
Technical Specifications
BZ-SK1-BEZEL
Paper Width
58mm - 80mm
Dimensions
90 × 35 × 30.9mm
Weight
22g
Paper Thickness
59um - 150um
Paper Diameter
Φ12
Operating Temperature
20-60C
Operating Humidity
20-85%
Storage Temperature
30-70C
Storage Humidity
10-90%
Full Specifications
BZ-SK1-BEZEL — Complete Specifications
| Specification | Detail |
|---|---|
| Dimensions | 90 × 35 × 30.9mm |
| Paper Width | 58mm - 80mm |
| Paper Thickness | 59um - 150um |
| Paper Diameter | Φ12 |
| Weight | 22g |
| Operating Temperature | 20-60C |
| Operating Humidity | 20-85% |
| Storage Temperature | 30-70C |
| Storage Humidity | 10-90% |
Source: official Star Micronics product data.
