MCD10UEWB BK
mC-Connect Drawer · Cash Drawer Adapter · X4 · Two DK Ports · USB-C · Ethernet (LAN) · WLAN · Bluetooth Low Energy · USB Cable Included · USB-C Powered
The mC-Connect Drawer is a cash drawer controller designed to support both traditional and modern POS environments. It enables direct control from tablets, mobile devices, POS systems, and cloud-based applications, while continuing to work seamlessly with printer-driven setups. With USB, Ethernet, Wireless LAN, and Bluetooth® Low Energy (Bluetooth LE) 5.0 in a single device, it simplifies deployment across retail and restaurant environments while reducing interface-specific hardware complexity. Compatible with cash drawers using standard RJ-12 connectivity, the mC-Connect Drawer helps businesses modernize existing setups, support shared till and mobile POS workflows, and standardize deployments across multiple locations with a single scalable solution.
MCD10UEWB BK
MCD10UEWB BK — Complete Specifications
| Specification | Detail |
|---|---|
| Model | MCD10UEWB BK |
| Interfaces | USB-C, Ethernet, Wireless LAN (2.4GHz), Bluetooth Low Energy 5.0 |
| Cash Drawer Ports | RJ-12 (DK) x 2 (supports up to 4 drawers with Dual Drawer Secure Cable DK-S12YE12Y-DDSC-72) |
| Power Supply | USB bus-powered (DC 5V, 0.5A); required for WLAN and Bluetooth communication (power supply not included) |
| Dimensions | 98 x 67 x 31 mm (W x D x H) |
| Weight | Approx. 105 g |
| Operating Environment | Temperature: 0°C–45°C | Humidity: 10–90% RH (non-condensing) |
| Wireless Security | WPA3 Personal (WLAN), Bluetooth Low Energy 5.0 Secure Connections |
| Supported Software | Star Quick Setup Utility, Star Windows Software, StarXpand SDK |
| Included Accessories | USB cable (A-C), Easy setup guide, Safety guide |
| Color | Black |
Source: official Star Micronics product data.
7 Highlights
Flexible Control
Enables direct cash drawer control from POS systems, tablets, and mobile devices - with or without printers
POS Support
Supports both traditional printer-driven setups and modern mobile POS workflows

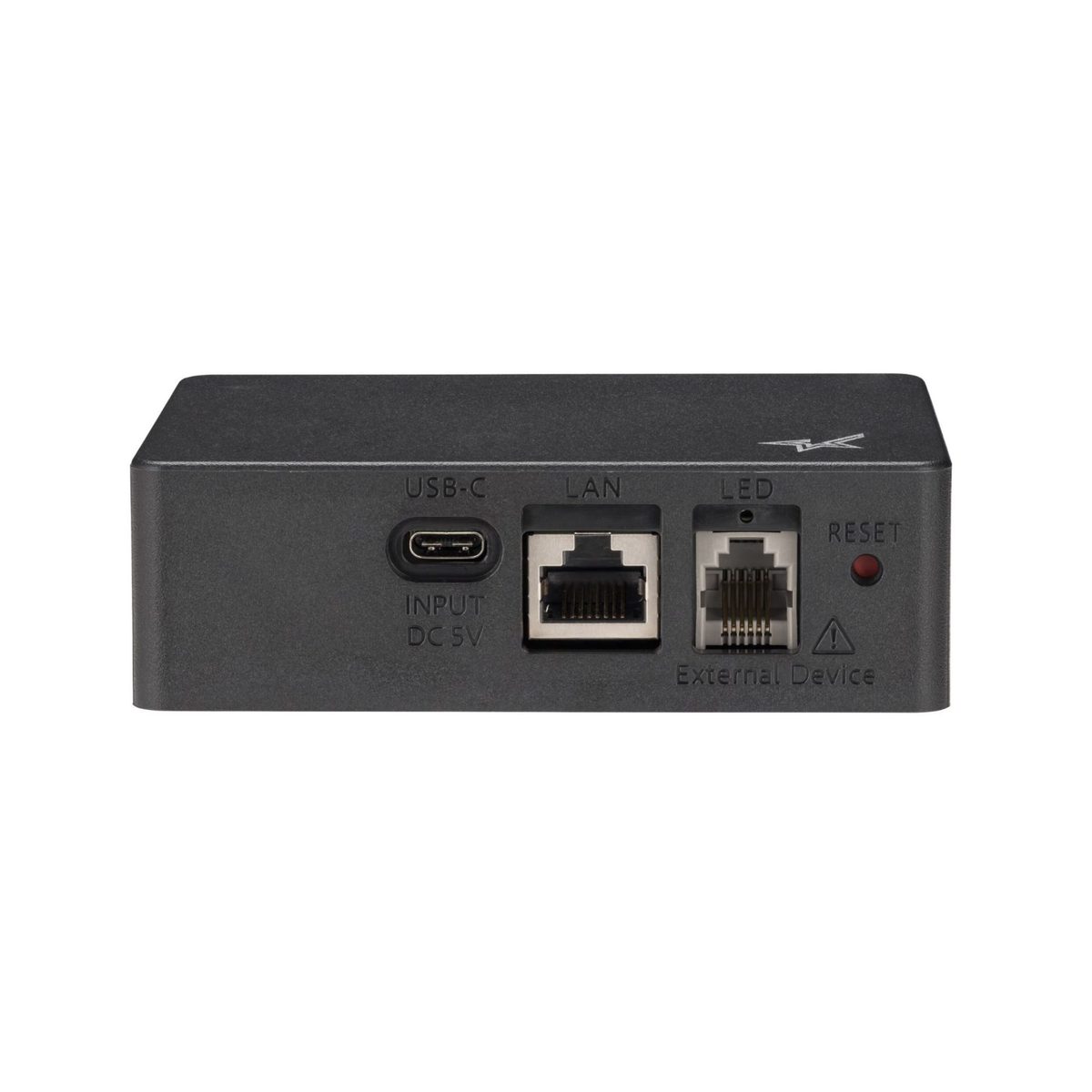

Connectivity
USB, Ethernet, Wireless LAN, and Bluetooth® Low Energy (Bluetooth LE) 5.0 in one device
Compatibility
Works with cash drawers using standard RJ-12 connectivity
Drawer Support

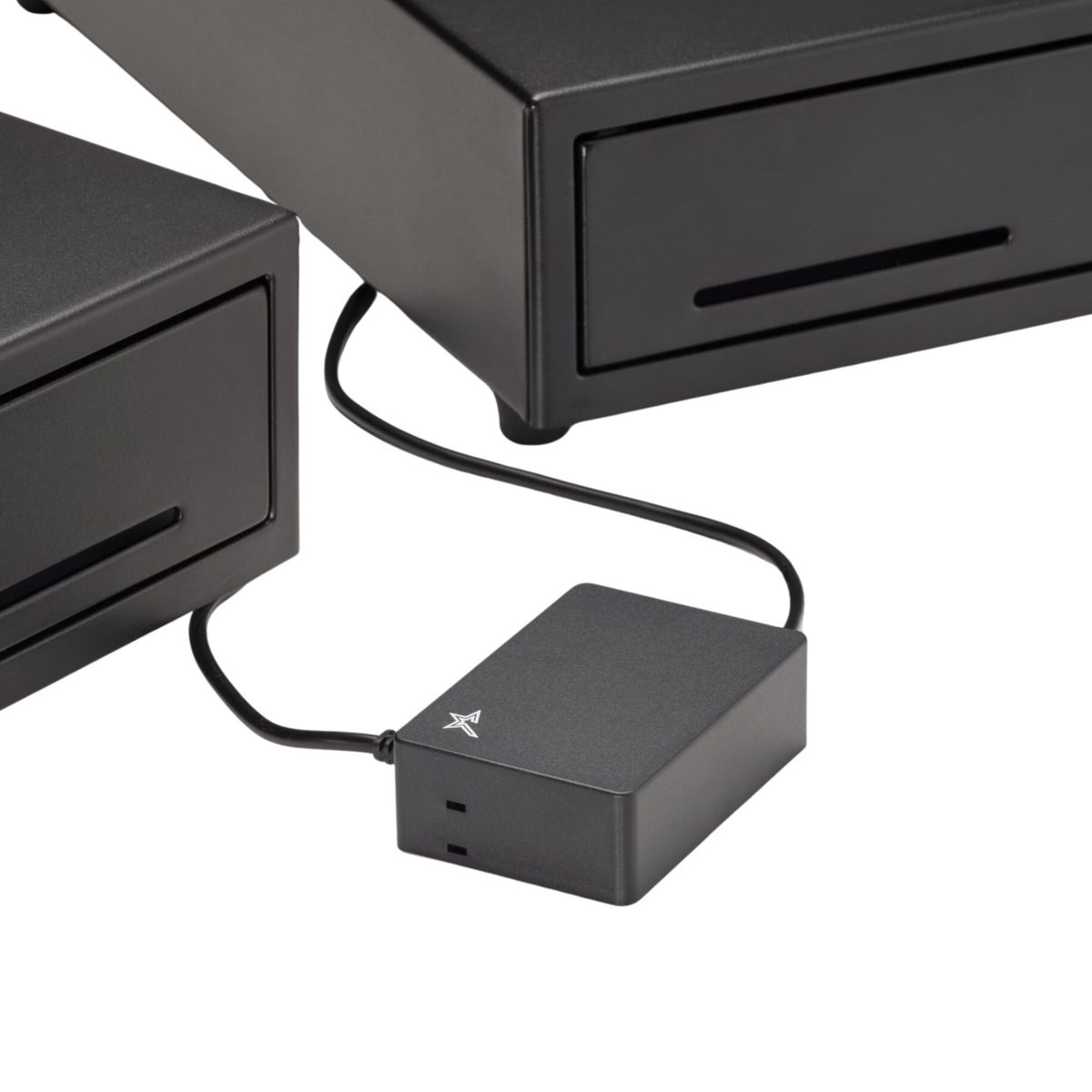

Controls up to four cash drawers from a single setup
Reliable Operation
Intelligent power and command handling help prevent failed drawer opens
Installation

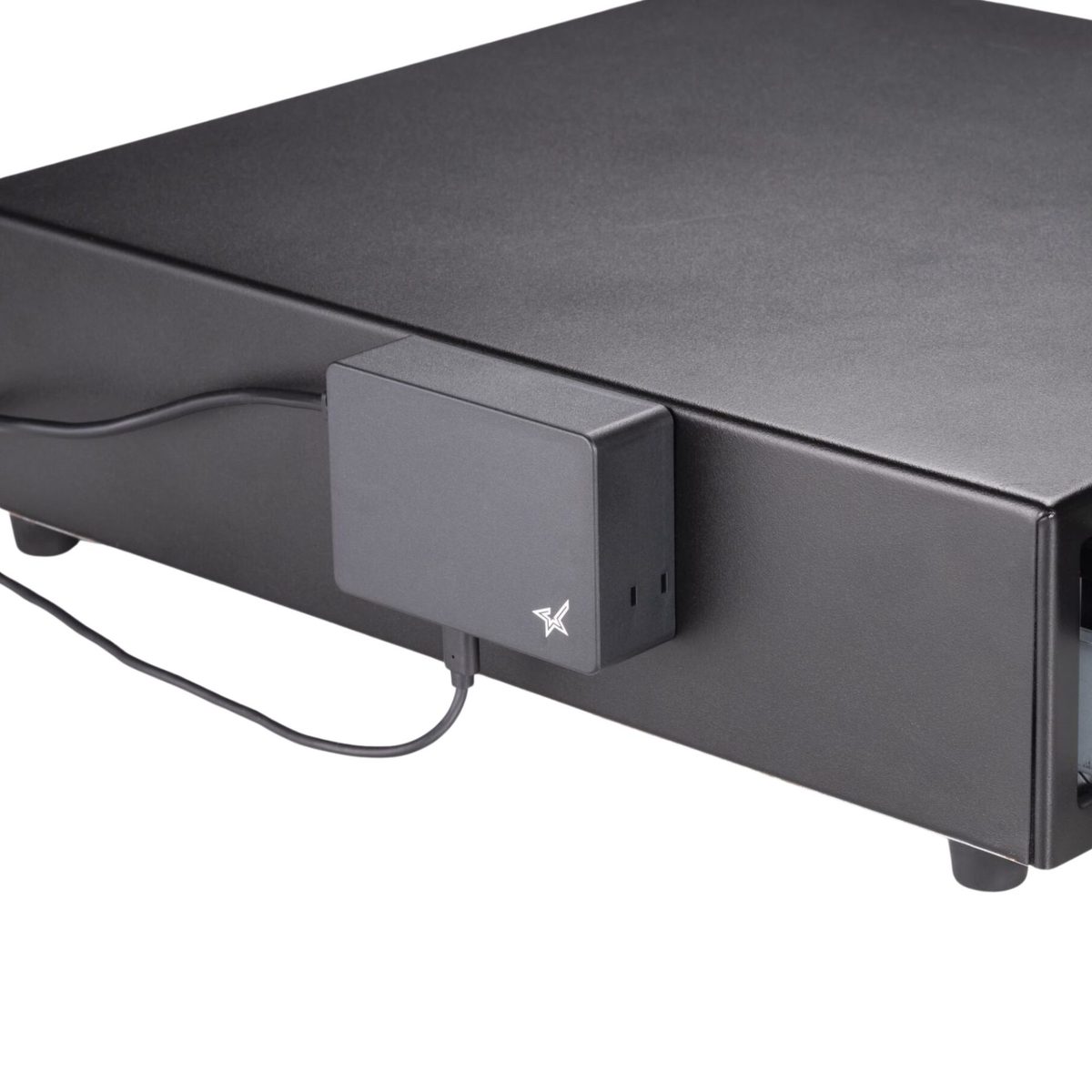

Compact design with built-in magnetic mounting for clean, versatile placement
