MCL32WCBi BK US
mC-Label3 · Label and Linerless Printer · Adjustable Label Width with Max 3” · Cutter · WLAN · USB-C with Power Delivery for iOS / Android / Windows · Bluetooth (MFi) · CloudPRNT · Peripheral Hub · Black · Ext PS Included
The Star Micronics mC-Label3 is a multifunction label printer that supports linerless labels, die-cut labels, continuous labels, and receipts from a single device. Print barcode labels, food safety labels, restaurant and QSR labels, product labels, and receipts using multiple media widths and types. Cloud Ready and compatible with Star Micronics Cloud Services and Label Builder, the mC-Label3 supports One Touch Label printing, CloudPRNT™, SteadyLAN®, and TetherLAN technologies. Connect to iOS, Android, and Windows devices, while the CWBi model adds USB-C, Ethernet, WLAN, and Bluetooth connectivity in a single printer.
MCL32WCBi BK US
MCL32WCBi BK US — Complete Specifications
| Specification | Detail |
|---|---|
| Printer Method | Direct Thermal (Thermosensitive type) |
| Print Speed | 180 mm/sec |
| Printer Case Color | Black |
| Models Available | USB, Lightning, Ethernet (LAN), WLAN, CloudPRNT, Bluetooth* (*MCL32CBi model only) |
| Print Resolution | 8 dots/mm (203 dpi) |
| Bar Codes | • 1D: UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, ITF, CODE39, CODE93, CODE128, CODABAR (NW-7) GS1-128, GS1 Omnidirectional, GS1 Truncated, GS1 Limited, GS1 Expanded • 2D: PDF417, GS1 Stacked, GS1 Stacked Omnidirectional, GS1 Expanded Stacked, QR Code • Composite: GS1 Composite Symbols |
| Media Supported | Linerless Label (Sticky + Permanent), Die Cut Label, Continuous Label, Thermal Receipt |
| Paper Load | "Drop-in and print" paper loading |
| Paper Out Sensor | Standard |
| Paper Low Sensor | Standard |
| Multiple Print Widths | Prints on any paper width between 25mm - 80mm |
| Top Margin | 3mm (default), 11mm |
| Auto-Cutter | Guillotine, Partial & Full Cut |
| Sensors | • Taken, Paper Jam • GAP, BM, PE, Cover Open • Paper Width • Paper Roll Position • Cutter Home Position • If mC-Label3 gets too hot, printing will pause until temperature returns to normal |
| Water & Insect Proofing | Protection equivalent to IP22 rating |
| Logo Store Capacity | Unlimited |
| Power Supply | External: PS65AT-24A |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Clss, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android |
| Software | CloudPRNT, StarwebPRNT (H/W), StarwebPRNT browser, PassPRNT, StarXpand SDK, StarPRNT SDK |
| Digitally Signed (WHQL) | Yes |
| Swappable Interfaces | N/A |
| Connectivity | MCL32CI: USB-C and LAN MCL32CBI: USB-C, LAN, Bluetooth MCL32WCi: USB-C, WLAN, LAN MCL32WCBi: USB-C, WLAN, LAN, Bluetooth |
| Emulation Modes | StarPRNT |
| Power Consumption | At 24 VDC, room temperature, without USB power supply: During power ON idling: Approx. 0.08 A (average) During ASCII printing: Approx. 2.1 A (average) |
| Operating Conditions | Temperature: 5oC to 45oC Humidity: 10% - 90% RH (without condensation) *Die-cut label paper, full-surface label paper, receipt paper10% - 80% RH (without condensation) *Linerless label paper |
| Storage Conditions | Temperature: -20oC to 60oC Humidity: 10% - 90% RH (no condensation) |
| Dimensions | 143 x 169 x 212 mm (w x h x d) |
| Safety Standards | UL, C-UL, TuV, FCC, VCCI, EN55022, CE |
| Reliability MCBF | 36 Million Lines |
| Print Head | Permanent Linerless Label Paper: 30 km (30 million pulses) Repositionable Sticky Linerless Label Paper: 75 km (75 million pulses) |
| Auto Cutter | Permanent Linerless Label Paper: 200k cuts Repositionable Sticky Linerless Label Paper: 1 million cuts |
| What's Included | AC Adapter Power Cable USB Cable (C-C 1m & C-A 1.8m) LAN Cable (1m) Simple Setup Sheet Safety Guide Self-Cleaning Paper Roll |
| Optional Accessories | POS Scales like the mG-S322, mG-S1501, and mG-S8200, 2D Barcode Scanners, mC-Sound, Kitchen Buzzer, Cash Drawer |
| Replacement Parts | Cutter Unit Platen Roll Unit 2 in 1 (Cutter unit & Platen unit set) |
| Warranty | 2-Year Limited Manufacturer Warranty (US & Canada) |
| Warranty Options | SWAP-A-STAR® Warranty Program (US) EXTEND-A-STAR® Extended Warranty Program (US and Canada) |
Source: official Star Micronics product data.
8 Highlights
Sleek Elegant Design
Modern look to match the rest of the mCollection®
Easy User Experience
Simple to setup, easy to use
Common SDK
Perfect for ISVs, easy to integrate
Interface

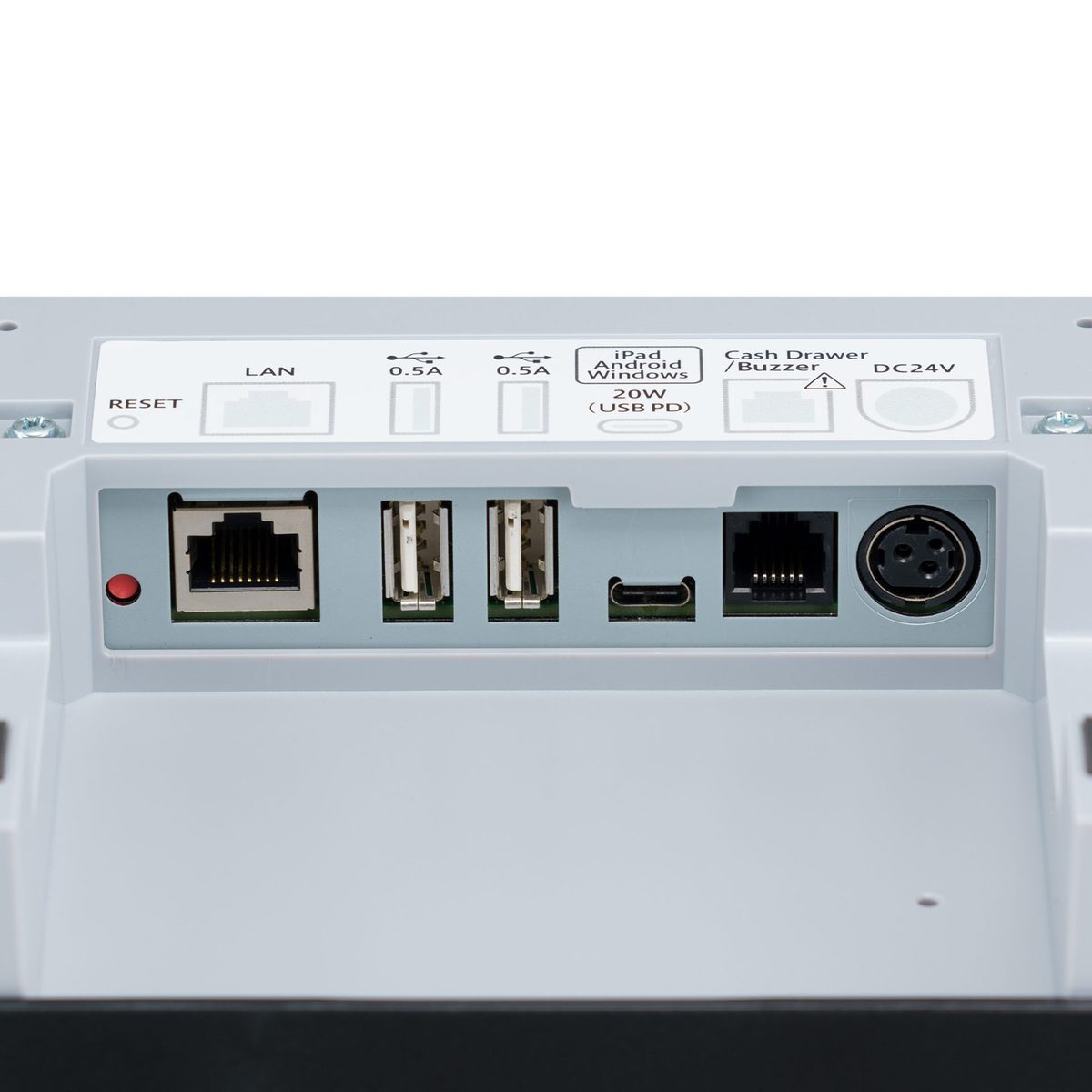

• LAN; • Bluetooth (iOS, Android, Windows - MCL32CBi model only); • USB-C for Windows and Android with Power Delivery (up to 20W). Charging only for iOS (MFi).; • Android Open Accessory Protocol (AOA) via USB-C port; • USB-A for Peripherals, Configuration by USB memory stick, Power for MCW10 (Wireless LAN Unit); • Drawer Kick (DK); • Power Adapter PS65AT-24A
TetherLAN Technology
With CloudPRNT, allows a connected device (4G & 5G) to share its network connection with the mC-Label3, creating a cloud-based printing environment anywhere.
SteadyLAN Technology
Provides reliable power and network access to tablet (paired with Android and Windows devices)
USB-C Power Delivery
Data transfer & charging with USB-C Connection for Android devices
External Power Supply
Yes
