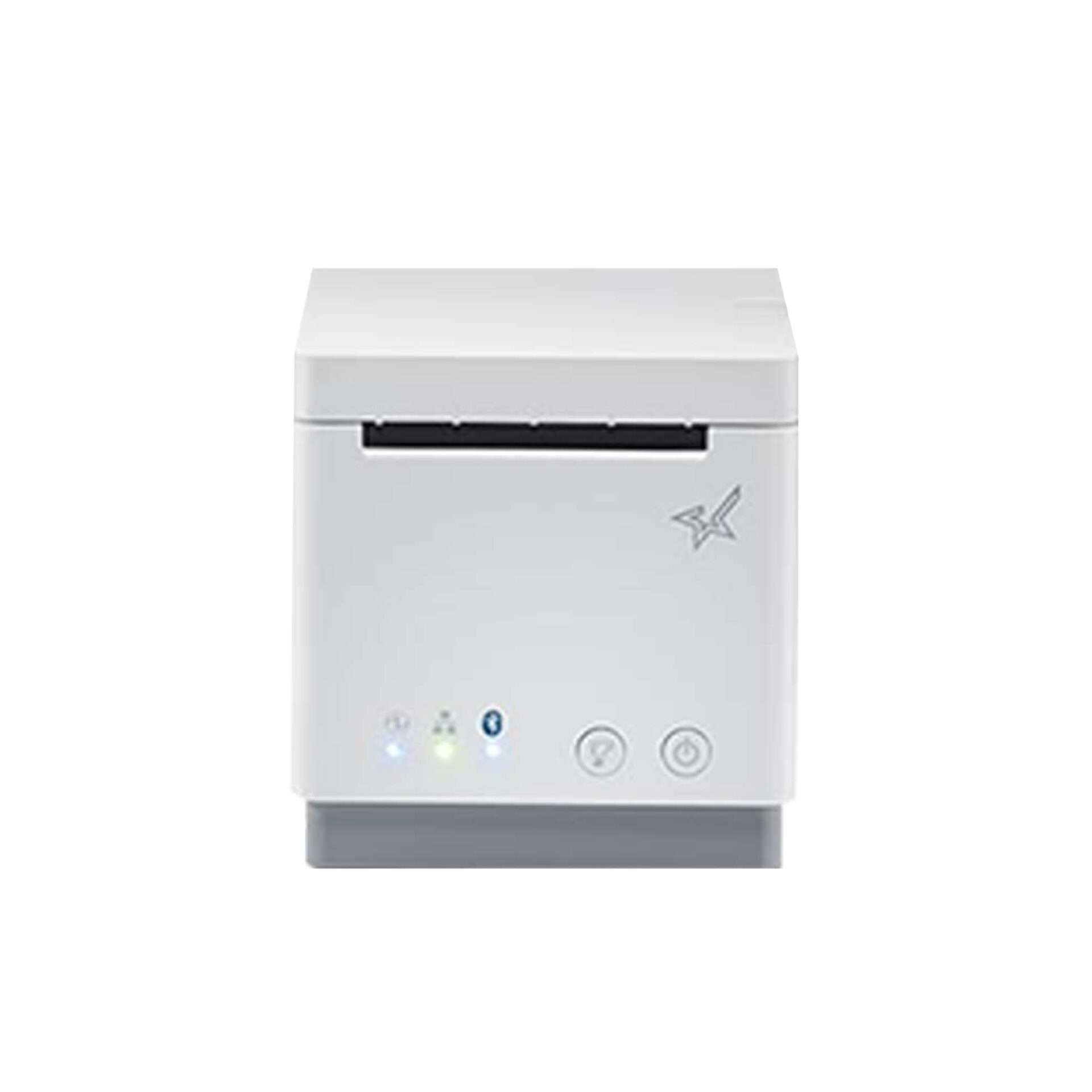

mC-Print2
Thermal · 2" · Cutter · WLAN · Bluetooth (MFi) · USB · Lightning · CloudPRNT · Peripheral Hub · White · Ext PS Included
The mC-Print2 is the smaller printer in the mCollection®. Perfect for minimizing counter space while optimizing functionality. With a square footprint of only 96 x 115 x 100 mm, Star’s smallest desktop printer is 60% smaller than the TSP100III. This 2-inch thermal printer also has multiple connectivity options, including USB, Lightning, Bluetooth, CloudPRNT, WLAN, and LAN. These five connections all come from the same model, which makes this printer future-proof, giving the retailer the ability to change their POS system without changing the printer. Multiple connectivity options give technology providers an easy integration process through common software.
mC-Print2
mC-Print2 — Complete Specifications
| Specification | Detail |
|---|---|
| Print Speed | 100 mm/s |
| Print Resolution | 203 dpi (8 dots per mm) |
| No. of Columns | Star Mode = 48 |
| Font Size | 12 X 24 |
| Character Set | ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
| International Code Pages | Star Mode=48 |
| Bar Codes | Extended barcode functionality - 9 versions / PDF 417, Maxicode Option |
| Line Spacing | 3 mm or 4 mm or programmable |
| Paper Specifications | Width: 50mm standard Thickness: 0.053 ~ 0.075 mm Roll Diameter: Up to 50 mm Easy Paper Load: "Drop-In & Print" Paper Out Sensor: Standard Paper Low Sensor: N/A Maximum Print Width: 58mm paper = 50.8mm print width |
| Top Margin | 11 mm default |
| Auto-Cutter | Guillotine (Partial Cut) |
| Cover-Open Sensor | Yes |
| Label Support | N/A |
| Power Supply | New Smaller External with power supply included |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Clss, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android |
| Digitally Signed (WHQL) | Yes |
| Swappable Interfaces | N/A |
| Connectivity | mCP20 - USB, Ethernet (LAN), CloudPRNT mCP21LB - USB, Ethernet (LAN), CloudPRNT, Lightning, Bluetooth, and HUB mCP21W - Ethernet (LAN), CloudPRNT, WLAN (2.4 GHz / 5 GHz) mCP21WBi - Ethernet (LAN), CloudPRNT, WLAN (2.4 GHz / 5 GHz), Bluetooth |
| Emulation Modes | StarPRNT |
| HUB | 1 Port (2.4A), 2 Ports (0.5A) |
| Power Consumption | Average 1.6 Amp. Printing, 0.1 Amp. Standby |
| Operating Conditions | Temperature: 5oC to 45oC Humidity: 10% - 90% RH (without condensation) |
| Storage Conditions | Temperature: -20oC to 60oC Humidity: 10% - 90% RH |
| Dimensions | 96 X 115 X 100mm (W x H x D) |
| Weight | 0.8Kg |
| Safety Standards | UL, C-UL, TuV, FCC, VCCI, EN55022, CE |
| Reliability MCBF | Print Head Auto-Cutter 60 Million Lines 100km 2 Million Cuts |
| Warranty | 2 Year Limited Manufacturer Warranty (US & Canada) |
| Optional Accessories | MG-S322, MG-S1501, MG-S8200, 2D Barcode Scanner/Imager, Line Display, Kitchen Buzzer, Cash Drawer |
Source: official Star Micronics product data.
8 Highlights
All-In-One Box
All accessories included in the box with the printer
Unique Design
Modern, compact design across the mCollection
HUB
3 USB-A w/HID Support (1 Port 2.4A, 2 Ports 0.5A)
HID Support
Connect any HID device including Bump Bar, Scanners, & Displays (Keyboard Mode)
Multiple Connections
Able to connect with 4 different interfaces
Print Flat Technology
Every print job comes out flat with no paper curl
SteadyLAN®
Provides reliable power and network access to tablet
Small Footprint
Save precious counter space
