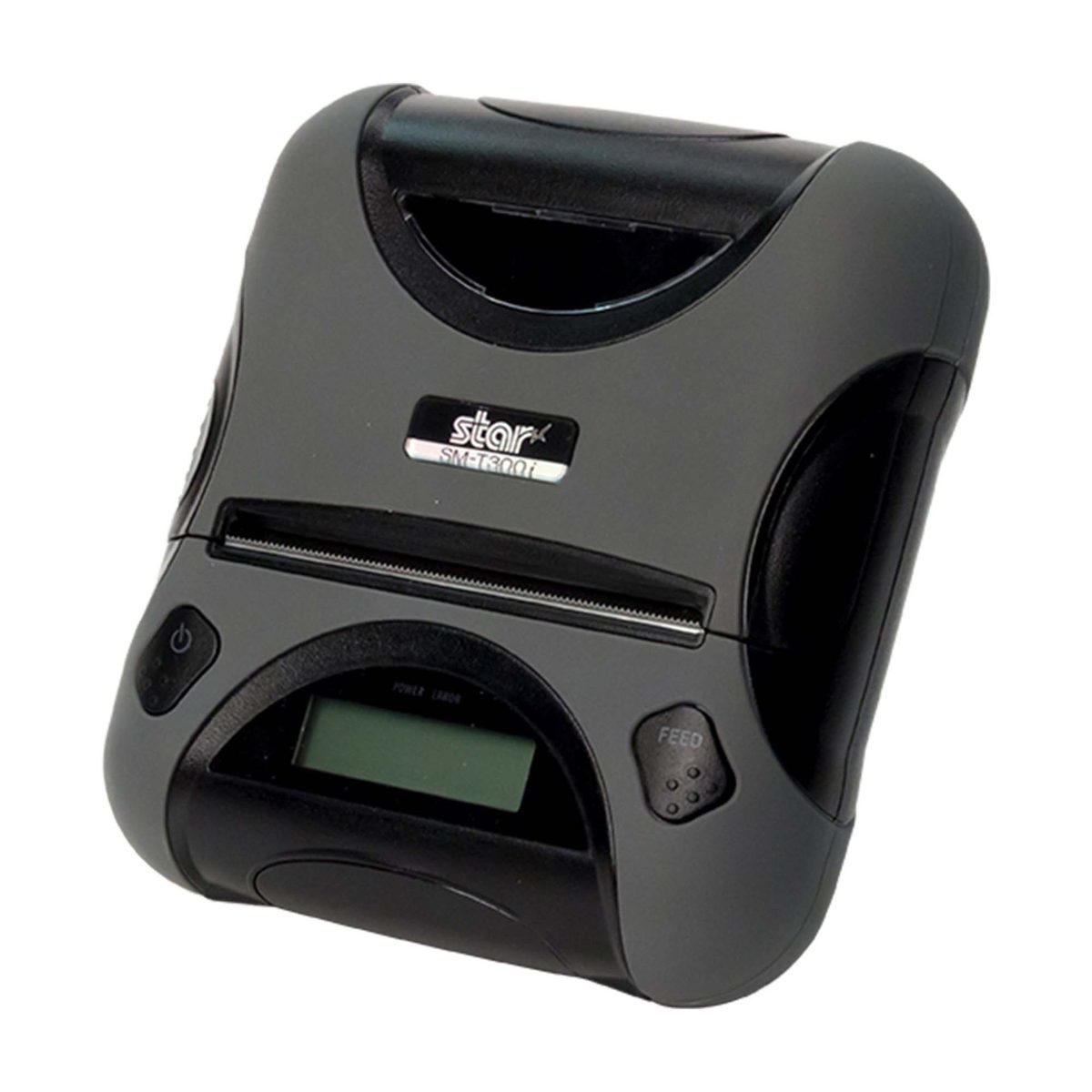

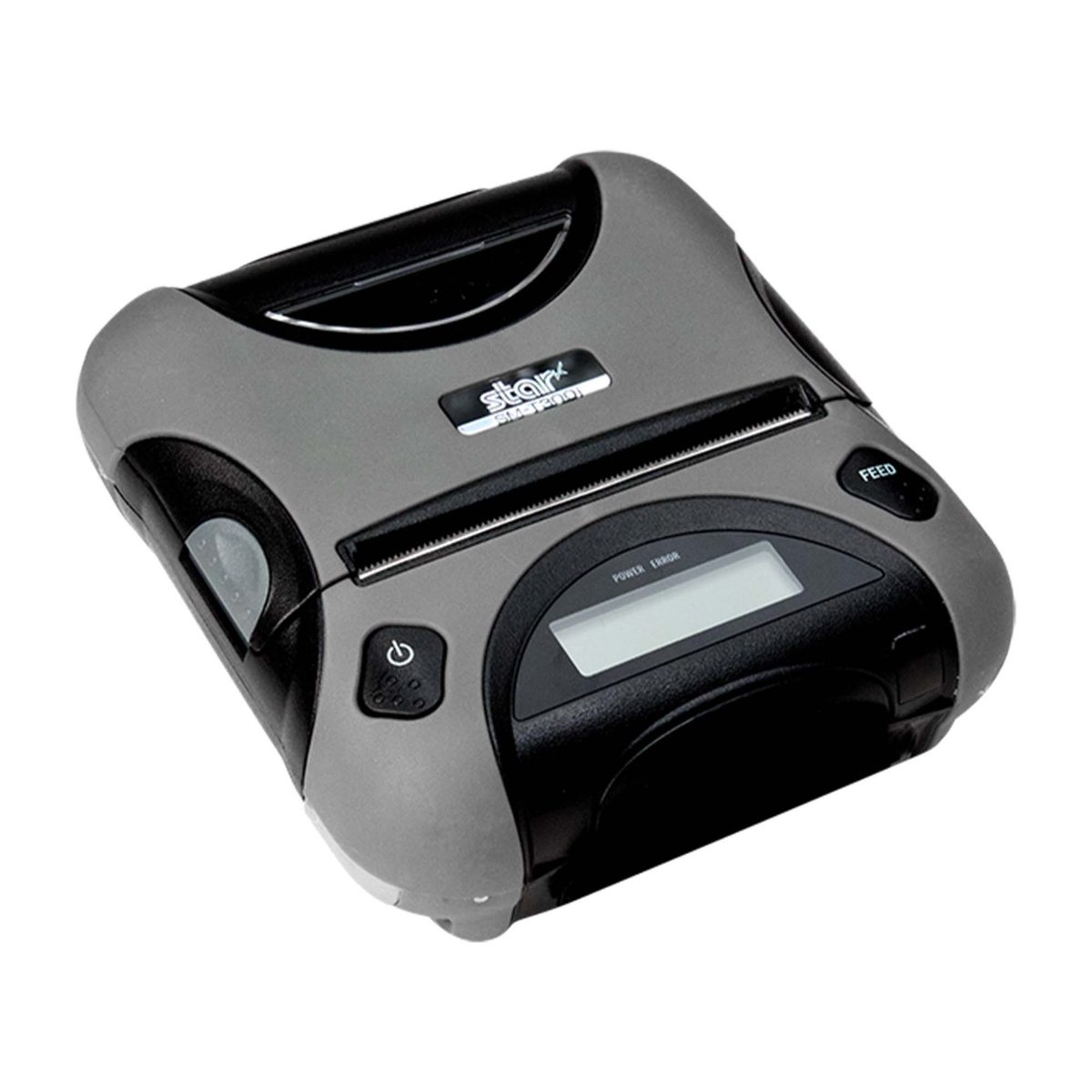

SM-T300/T300i
Ideal for the ever-growing field service/mobile industry, the SM-T300 may be utilized for workers requiring seamless, easy-to-use handheld printers. Its rugged and water-resistant design, coupled with a long battery life, makes the SM-T300 a welcomed option for applications in harsh outdoor environments, such as service and delivery, public safety, and utility applications. Built for today’s technology, a model of SM-T300 is available that supports iOS (SM-T300i), an ideal option for taxi receipt printing.
SM-T300/T300i
SM-T300/T300i — Complete Specifications
| Specification | Detail |
|---|---|
| Printer Method | Direct Line Thermal Printing |
| Print Speed | 75mm/sec |
| Print Width | 72mm |
| Print Resolution | 203 dpi |
| Dimensions | 120 x 58 x 130 (w x h x d)mm |
| Weight | T300 WLAN 429g / 0.946lbs (battery loaded) |
| Battery Type | Lithium Ion |
| Battery Duration | 11 Hour Printing (5 Minute Intervals) |
| AC Adapter | 4 Hours Full Charge Time |
| Power Voltage | 7.4 V |
| Paper Specifications | Media Loading Method Width Thickness Roll Diameter Black Mark Sensor Thermal Paper "Drop-In & Print" 80mm 0.06 - 0.07mm 50mm Supported (Tickets Only); Black Marks Required on Front of Ticket Stock |
| Interface | Bluetooth 2.1 |
| Reliability | MCBF Print Head 37M Lines 50km |
| Bar Code | Code39/93/128, JAN/EAN8, JAN/EAN13, EAN128, I2/5, KAN, UPC, CODABAR, PDF417, QR Code, DATA Matrix |
| Drop Test | With MSR: 4ft (1.2m) drop test, Without MSR 5ft (1.5m) drop test |
| Drivers | Windows® 7 32/64 Bit Windows® Vista 32/64 Bit Windows® XP Windows® Mobile SDK available for Android®, Blackberry® and iOS |
| Supported OS | iOS, Android and Windows (requires SM-S200 Driver Package) |
| Mag Stripe Reader | Standard 1&2 Track (2&3 Optional) |
| Auto Power Down Mode | Auto sleep mode after 1-5 Minutes, Configurable |
| Characters per Line | 64cpl |
| Character Support | ANK, Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Turkish, Greek, Japanese, Persian, Latin 9 and Others (Upon Request) |
| Included | AC Adapter, Battery, Serial Cable, Setup Sheet |
| Warranty | 1 Year Limited Manufacturer Warranty |
| Options | Shoulder Strap Car Charger Extra Battery Pack Extra Battery Charger 4 Unit Battery Charger Extend-A-Star Extended Warranty Program (US, Canada and Mexico) Swap-A-Star Extended Warranty Program (US) |
| Printer Method | Direct Line Thermal Printing |
| Print Speed | 75mm/sec |
| Print Width | 72mm |
| Print Resolution | 203 dpi |
| Dimensions | 120(W) x 130.5(D) x 58.4(H) mm |
| Weight | 424g (with battery pack, no card reader) 429g (with battery pack & card reader) |
| Battery Type | Lithium Ion |
| Battery Duration | 11 Hour Printing (5 Minute Intervals) |
| AC Adapter | 4 Hours Full Charge Time |
| Power Voltage | 7.4 V |
| Paper Specifications | Media Loading Method Width Thickness Roll Diameter Thermal Paper "Drop-In & Print" 80mm 0.06 - 0.07mm 50mm |
| Interface | RS232C & Bluetooth Ver 2.1 + EDR |
| Emulation Modes | StarPRNT, ECS/POS™ |
| Reliability | MCBF Print Head 37M Lines 50km |
| Mag Stripe Reader | Supports 3DES encryption |
| Drop Test | With MSR: 5ft (1.5m) drop test, Without MSR 4ft (1.2m) drop test |
| Supported OS | iOS, Android, Windows and Mac OS X (StarPRNT) iOS and Android (ESC/POS™) |
| Auto Power Down Mode | Auto sleep mode after 1-5 Minutes, Configurable |
| Included | AC Adapter, Battery, Serial Cable, Setup Sheet |
| Warranty | 1 Year Limited Manufacturer Warranty |
| Options | Shoulder Strap Car Charger Extra Battery Pack Extra Battery Charger 4 Unit Battery Charger Extend-A-Star Extended Warranty Program (US, Canada and Mexico) Swap-A-Star Extended Warranty Program (US) |
Source: official Star Micronics product data.
8 Highlights
3-Inch Print Outs
Perfect handheld solution for receipt printing
Small, Light Weight Design
Perfect for potential rush environments
Ultra High Durability
Ultra durable design to withstand harsh conditions and long periods of use
Long-Lasting Battery Life
8 hour battery life at 5 minute printing intervals
LCD Display
Easy to determine battery life and error type
Power Down Mode
Configurable to get in Sleep mode after 1~5 minutes of inactivity
Direct Thermal Printing
No ribbon required for high quality printouts
Fast Output
Prints text at 75mm/sec
