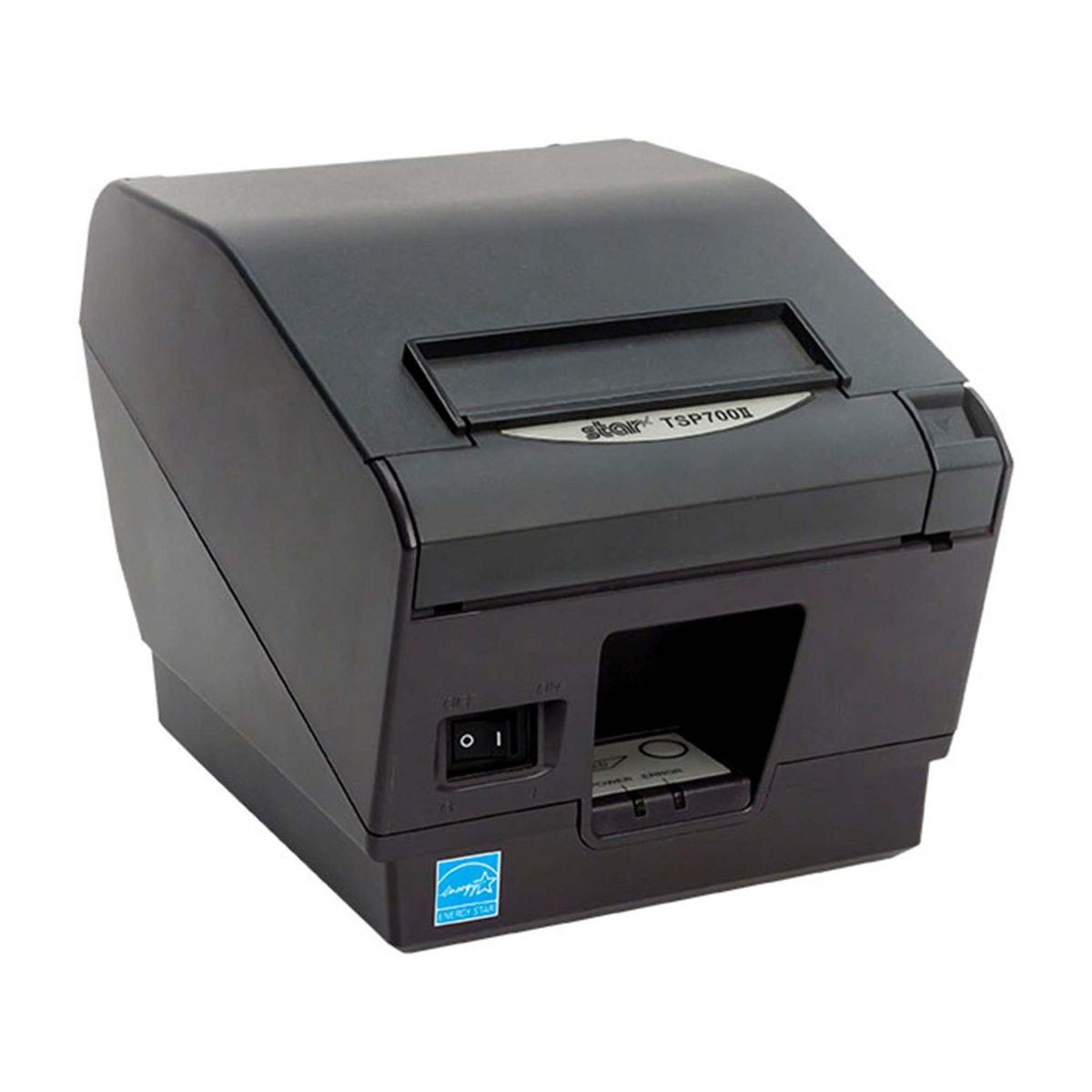

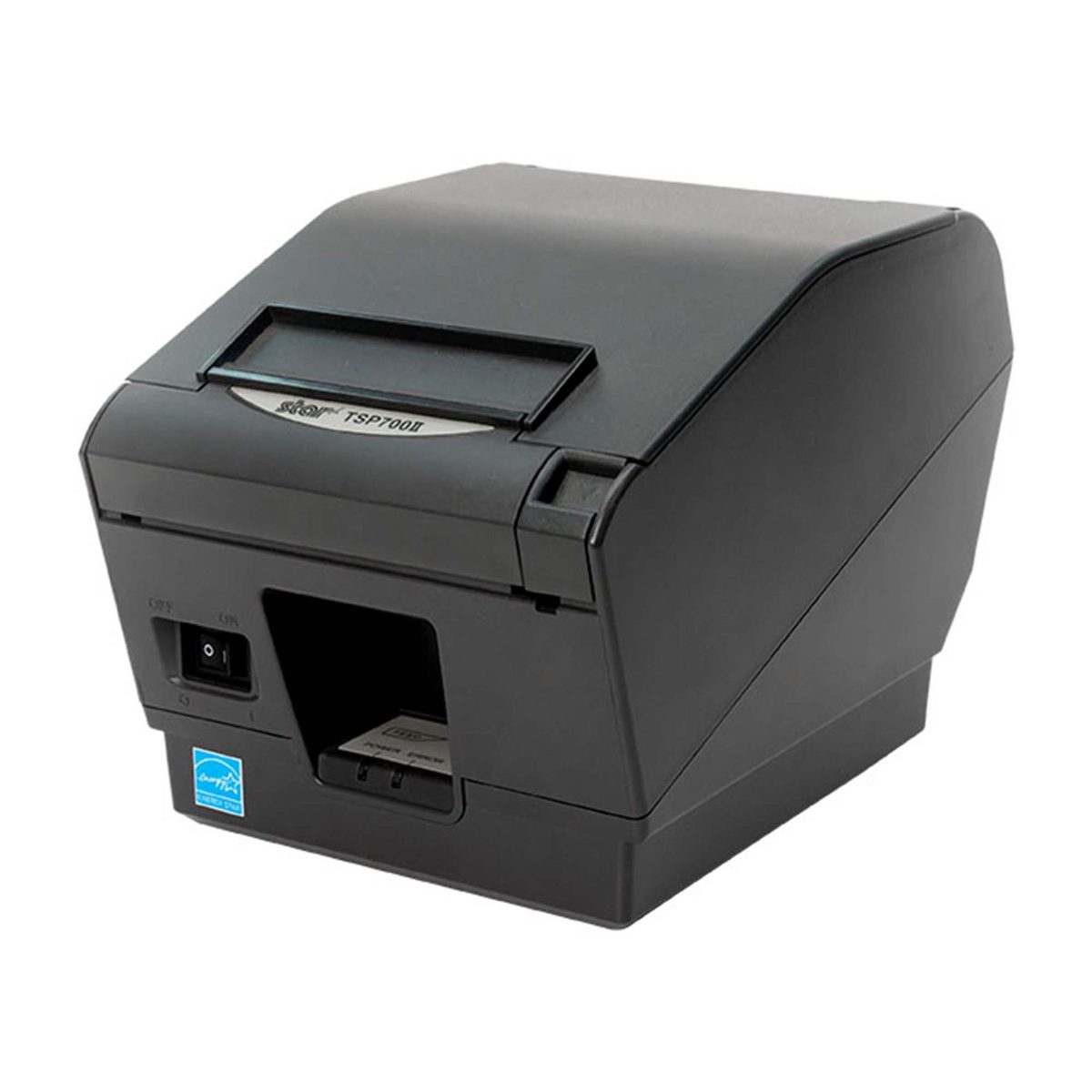

TSP700II
Featuring a fast print speed, a multitude of connectivity options, and a splash- and dust-proof design, the TSP743II is one of the industry’s most powerful, reliable, and connected printers. Equipped for easy mobile printing, the TSP743II features serial, parallel, USB, Ethernet, WLAN, Bluetooth, and CloudPRNT connectivity. Adaptable to any business, the printer may also be vertically mounted and includes black mark label support.
TSP700II
TSP700II — Complete Specifications
| Specification | Detail |
|---|---|
| Printer Method | Direct Line Thermal |
| Print Speed | 45 Receipts Per Minute (250 mm/sec) |
| Printer Case Color | Gray |
| Print Resolution | (Vertical x Horizontal) 203x203 dpi, 406x203 dpi |
| No. of Columns | 48 / 64 or 58 / 71 (Depends on Paper Width) Includes 1st column print for lottery applications |
| Font Size | 12 x 24 |
| Character Set | ANK 95, 32 Int 128 Graphic |
| International Code Pages | Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added |
| Bar Codes | 9 versions / PDF417, QR, Maxicode Options |
| Line Spacing | 3 mm or 4 mm or programmable |
| Width | 80mm standard, 82.5 and 58mm with paper guide |
| Thicknes | 0.065 ~ 0.15 mm |
| Roll Diameter | Up to 100 mm |
| Easy - Load | "Drop-In & Print" |
| Paper Out Sensor | Standard |
| Black Mark Sensor | Standard |
| Paper Low Sensor | Standard |
| Maximum Print Width | 80mm paper = 72mm, 82.5mm paper = 80mm, 58mm paper = 52mm |
| Top Margin | 13 mm minimum default (3mm selectable via Memory Switch Utility) |
| External Paper Feed Support | Yes |
| Auto Cutter | Guillotine (Full or Partial Cut Selectable) |
| Cover Open Sensor | Yes |
| Logo Store Capacity | 2 Mbit Flash ROM with Graphic Management Software |
| Flash ROM | 16 Mbit |
| Multiple Copy Support | N/A |
| Journal Capability | N/A |
| Label Support | Yes; Black timing marks between labels required |
| Power Supply | External; Requires PS60A External Power Supply |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS and Android |
| Digitally Signed (WHQL) | Yes |
| Swappable Interfaces | Yes |
| Connectivity | Apple MFi Certified Bluetooth, CloudPRNT, Serial, Parallel, USB, Powered USB, Ethernet, Virtual Serial Port to USB, Virtual Serial Port to Ethernet |
| Emulation Modes | Star Mode, ESC/POS™ |
| Peripheral Drive Circuit | 2 circuits, (24V max. 1A), 1 Compulsion input |
| Power Consumption | Average 1.8 Amp. Printing, 0.15 Amp. Standby Requires PS60A External Power Supply |
| Operating Conditions | Temperature: 5ºC to 45ºC Humidity: 10% - 90% RH (without condensation) |
| Storage Conditions | Temperature: -20ºC to 60ºC Humidity: 10% - 90% RH |
| Dimensions: | Weight: 147 x 148 x 213 (w x h x d)mm 1.75 kg |
| Safety Standards | UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost |
| Reliability MCBF | Auto Cutter 60 Million Lines 2 Million Cuts |
| Included with Printer | Configuration Utility, and Value Add Utility modeled after futurePRNT Software, Wall Mount Bracket, Interface Cover, 58mm Paper Guide, Power Switch Cover |
| Warranty | 2 Year Full Manufacturer Warranty |
| Options | External Power Supply (PS60A) Splash Proof Cover (SPC-T700) Kitchen Buzzer (BU01-24-A) Vertical Stand (VS-T700) Swappable Interfaces 24V Mobile Power Supply Extend-A-Star Extended Warranty Program (US and Canada) Swap-A-Star Extended Warranty Program (US) |
Source: official Star Micronics product data.
8 Highlights
Ultra High Speed
Can print 48 six inch receipts per minute (250 mm/sec)
High Reliability
MCBF: 60 Million Lines
Ultra Reliable Guillotine Auto Cutter
MCBF: 2 Million Cuts
Small Foot Print
Save precious counter space
“Drop In & Print” Paper Loading
Clamshell design allows for very fast and easy paper loading
Apple MFi certified Bluetooth Interface
Provides dedicated wireless label printing via Apple MFi certified Bluetooth with support for iOS devices such as iPad®, iPhone® and iPod Touch® in addition to Android and Windows devices
WebPRNT Ethernet Interface
Enables Printing from Web-based Applications Via HTTP Requests
Swappable Interface Connections
Future interface upgrades are fast and simple to do. With swappable interfaces, there’s no need to purchase a new printer just to upgrade the connection
