ID Card

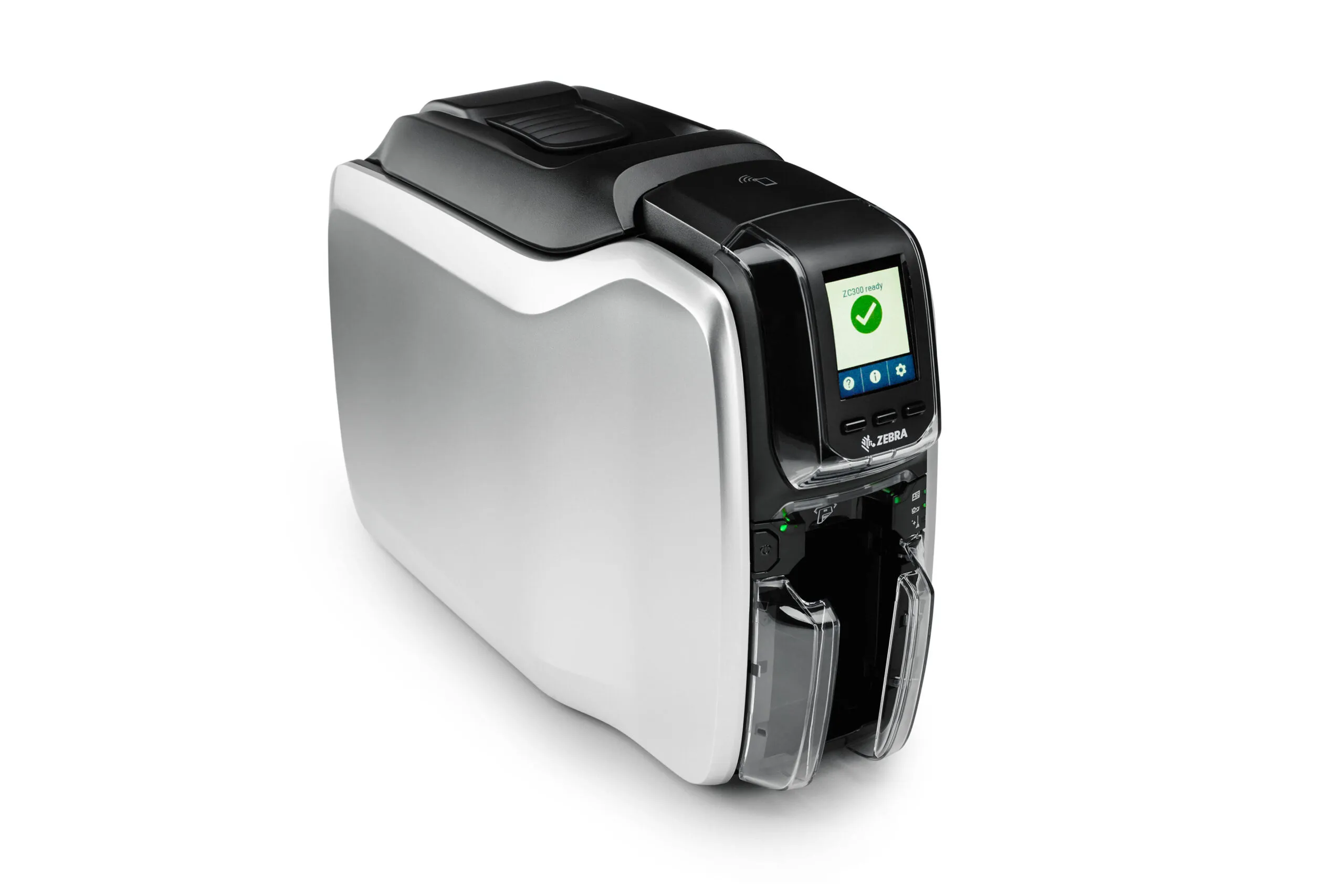

ZC300 Series
Compact Card Printer
The ZC300 Series compact card printers deliver ground-breaking simplicity, security and connectivity for ID card printing. Easy to set up and use, these printers produce high-quality cards for employee IDs, visitor badges, loyalty cards and more. Dual-sided printing available with the ZC350 model.
Key Features
ZC300 Series
Simple Setup
Intuitive ribbon and card loading for quick, error-free setup in minutes
Dual-Sided Printing
ZC350 model offers automatic dual-sided card printing
Smart Card Encoding
Optional contact and contactless smart card encoding
Ethernet & USB
Standard Ethernet and USB connectivity; optional Wi-Fi
Print DNA
Cloud-ready management and security software suite
Compact Design
Small footprint fits on any desk or reception counter
Technical Specifications
ZC300 Series
| Print Method | Dye-sublimation / thermal transfer |
| Resolution | 300 dpi |
| Print Speed | Up to 200 cards/hour (single-sided color) |
| Card Types | CR-80 PVC, PVC composite, PET |
| Connectivity | Ethernet, USB 2.0; optional Wi-Fi, Bluetooth |
| Encoding | Optional magnetic stripe, contact/contactless smart card |
| Models | ZC300, ZC350 (dual-sided) |
| Warranty | 2 years (printer), 2 years or 20,000 cards (printhead) |
Ideal Applications
ZC300 Series
- Employee ID cards
- Visitor management
- Loyalty programs
- Access control
- Student ID cards
Full Specifications
Complete Specification Sheet
| Specification | Value |
|---|---|
| Media Specifications | |
| Ribbon Description | Cartridge Image Count |
| YMCKO* | 200 |
| YMCKO* | 300 |
| YMCKOK* | 200 |
| ½ YMCKO* | 400 |
| ½ YMCKOKO* | 250 |
| KrO* | 700 |
| KdO* | 700 |
| Black Monochrome* | 2000 |
| Black Monochrome | 1500 |
| White Monochrome* | 1500 |
| Red Monochrome | 1500 |
| Blue Monochrome | 1500 |
| Gold Monochrome | 1500 |
| Silver Monochrome | 1500 |
| Operating Characteristics | |
| Operating Temp. | 59º F to 95º F/15º C to 35º C |
| Storage Temp. | 23º F to 158º F/-5º C to 70º C |
| Operating Humidity | 20% to 80% non-condensing |
| Media Storage | — Temperature: 41º F to 77º F/5º C to 25º C — Humidity: 35% to 65% non-condensing |
| Electrical | Auto-switching single-phase AC powerOperating range: 90-132VAC and 190-264VAC RMSFrequency range: 47-63 HzFCC Class A |
| Dimensions | Single Sided 10.2 in. H x 6.2 in. W x 15.1 in. D 258 mm H x 157 mm W x 383 mm D Dual Sided 10.2 in. H x 6.2 in. W x 18.4 in. D 258 mm H x 157 mm W x 468 mm D |
| Weight | Single Sided 8.8 lbs (4.0kg) Dual Sided 9.7 lbs (4.4 kg) |
| USB 2.0 | Standard |
| Built-in 10/100 Ethernet | Standard |
| 802.11ac | Optional |
| Microsoft Windows Certified | Windows Server 2008 (32 and 64 bit), Windows 7 (32 bit and 64 bit) Windows 8 and Windows 8.1 (32 bit and 64 bit compatible) Windows Server 2012 (64 bit) Windows 10 (32 bit and 64 bit) Windows Server 2016 Windows drivers include: Color coded printer status indicators for the operatorBlack panel extraction and controls for specialty ribbon panels with image previewConfiguration utility to limit access by operators to change image quality and printer settingsAdvanced printer configuration, security settings and diagnostics capabilities |
| Linux | Ubuntu 16..X (64 Bit) |
| Apple | MAC OS X 10.13.X (64 bit) |
| Physical Characteristics | |
| Dimensions | Single Sided 10.2 in. H x 6.2 in. W x 15.1 in. D 258 mm H x 157 mm W x 383 mm D Dual Sided 10.2 in. H x 6.2 in. W x 18.4 in. D 258 mm H x 157 mm W x 468 mm D |
| Weight | Single Sided 8.8 lbs (4.0kg) Dual Sided 9.7 lbs (4.4 kg) |
| Communications and Interface Capabilities | |
| USB 2.0 | Standard |
| Built-in 10/100 Ethernet | Standard |
| 802.11ac | Optional |
| Printer Drivers | |
| Microsoft Windows Certified | Windows Server 2008 (32 and 64 bit), Windows 7 (32 bit and 64 bit) Windows 8 and Windows 8.1 (32 bit and 64 bit compatible) Windows Server 2012 (64 bit) Windows 10 (32 bit and 64 bit) Windows Server 2016 Windows drivers include: Color coded printer status indicators for the operatorBlack panel extraction and controls for specialty ribbon panels with image previewConfiguration utility to limit access by operators to change image quality and printer settingsAdvanced printer configuration, security settings and diagnostics capabilities |
| Linux | Ubuntu 16..X (64 Bit) |
| Apple | MAC OS X 10.13.X (64 bit) |
