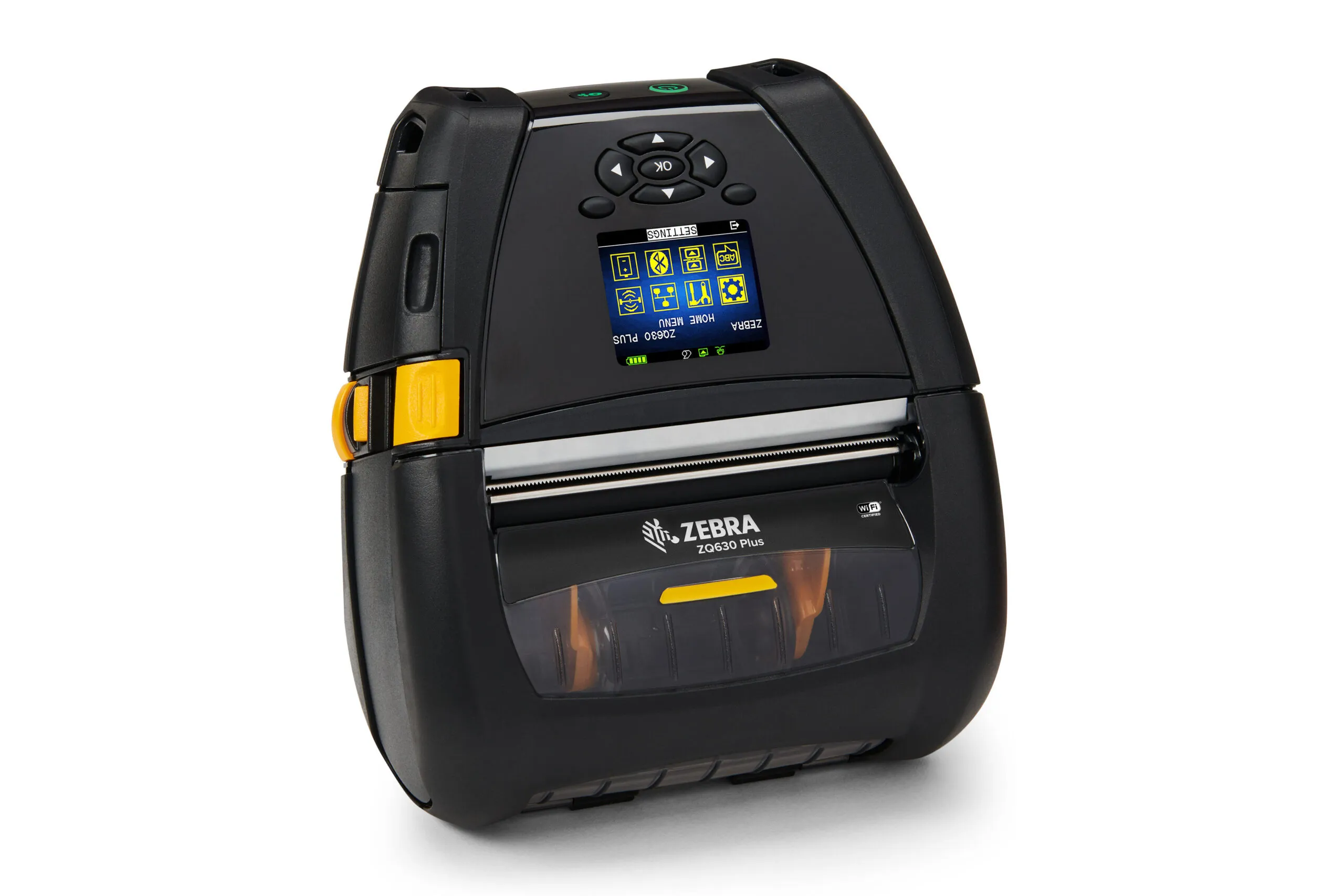

ZQ600 Plus Series
Advanced Mobile Printer
The ZQ600 Plus Series is the industry's first Wi-Fi 6 mobile printer, delivering the latest wireless technology for faster data transfer and improved reliability. Available in standard, healthcare and RFID models, these versatile mobile printers are built for the demands of retail, healthcare, warehousing and transportation.
Key Features
ZQ600 Plus Series
Wi-Fi 6
Industry's first mobile printer with Wi-Fi 6 for faster, more reliable connectivity
All-Day Battery
PowerPrecision+ battery provides enough power for the longest shifts
RFID Models
Integrated UHF RFID encoding for smart label applications in the field
Healthcare Models
Disinfectant-ready design with IEC60601-1 certified power supply
Military-Grade Rugged
Withstands 6 ft./1.8 m drops and IP54 sealing for harsh environments
Print DNA
Zebra's software suite for remote management, security and optimization
Technical Specifications
ZQ600 Plus Series
| Print Method | Direct Thermal |
| Resolution | 203 dpi |
| Max Print Width | 4.09 in./104 mm |
| Print Speed | Up to 4.5 ips / 114 mm/s |
| Connectivity | Wi-Fi 6, Bluetooth 5.2, USB-C |
| Drop Spec | 6 ft./1.8 m to concrete |
| Sealing | IP54 |
| Battery | PowerPrecision+ Li-Ion |
| Models | ZQ620 Plus, ZQ630 Plus, ZQ620 Plus-HC, ZQ630R Plus |
| Warranty | 2 years |
Ideal Applications
ZQ600 Plus Series
- Warehouse receiving
- Field delivery
- Healthcare bedside
- Retail price marking
- Transportation & logistics
Full Specifications
Complete Specification Sheet
| Specification | Value |
|---|---|
| Physical Characteristics | |
| Dimensions | ZQ610 Plus: 6.73 in. L x 3.6 in. W x 2.85 in. H 170.9 mm L x 91.4 mm W x 72.4 mm H ZQ620 Plus: 6.84 in. L x 4.64 in. W x 3.03 in. H 173.7 mm L x 117.9 mm W x 76.9 mm H ZQ630 Plus: 7.35 in. L x 6.5 in. W x 3.25 in. H 186.7 mm L x 165.1 mm W x 82.5 mm H Note: The Extended Capacity Li-Ion smart battery option adds 0.6 in./16 mm to the height of either ZQ6 Series printer. |
| Weight with battery | ZQ610 Plus: 1.33 lbs/0.6 kg ZQ620 Plus: 1.6 lbs/0.73 kg ZQ630 Plus: 2.45 lbs/1.1 kg |
| Printer Specifications | |
| Operating System | Link-OS™ |
| Resolution | 203 dpi/8 dots per mm |
| Memory | 256 MB RAM; 512 MB Flash (standard) |
| Maximum Print Width | ZQ610 Plus: 1.9 in./48 mm ZQ620 Plus: 2.8 in./72 mm ZQ630 Plus: 4.1 in./104 mm |
| Maximum Print Speed | Up to 4.5 in./115 mm per second |
| Media Sensors | Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time |
| Print Length | Minimum: 0.5 in./12.7 mm Maximum: 32 in./813 mm |
| Power | ZQ610 Plus and ZQ620 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery ZQ630 Plus: 6600 mAh (nominal) 47.5 Wh removable PowerPrecision+ Li-Ion battery |
| Media Characteristics | |
| Label and Liner Length | 0.5 in./12.7 mm to 32 in./813 mm or continuous |
| Media Width | ZQ610 Plus: 1.0 in./25 mm to 2.18 in./55.4 mm ZQ620 Plus: 1.0 in./25 mm to 3.125 in./79 mm ZQ630 Plus: 2.0 in./51 mm to 4.4 in./112 mm (linered) 2.0 in./51 mm to 4.1 in./104 mm (linerless) |
| Maximum Media Roll Size | ZQ610 Plus: 2.2 in./55.9 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core ZQ620 Plus: 2.6 in./66 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core ZQ630 Plus: 2.6 in./66 mm O.D. on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core |
| Thickness | 2.3 mil to 5.5 mil tag stock or 6.5 mil label stock |
| Media Types | Die-cut labels and tags, linerless labels, receipt paper, RFID (ZQ630 Plus RFID compatible), black bar and gap |
| Operating Characteristics | |
| Environment | Operating Temp.: -4°F to 122°F/-20°C to 50°C Operating Humidity: 10% to 90% non-condensing Storage/Transportation Temp.: -13°F to 149°F/-25°C to 65°C1 Storage Humidity: 10% to 90% non-condensing |
| Agency Approvals | Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5 Safety: CE, TUV, CSA ENERGY STAR™ certified |
| Security | FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information. |
