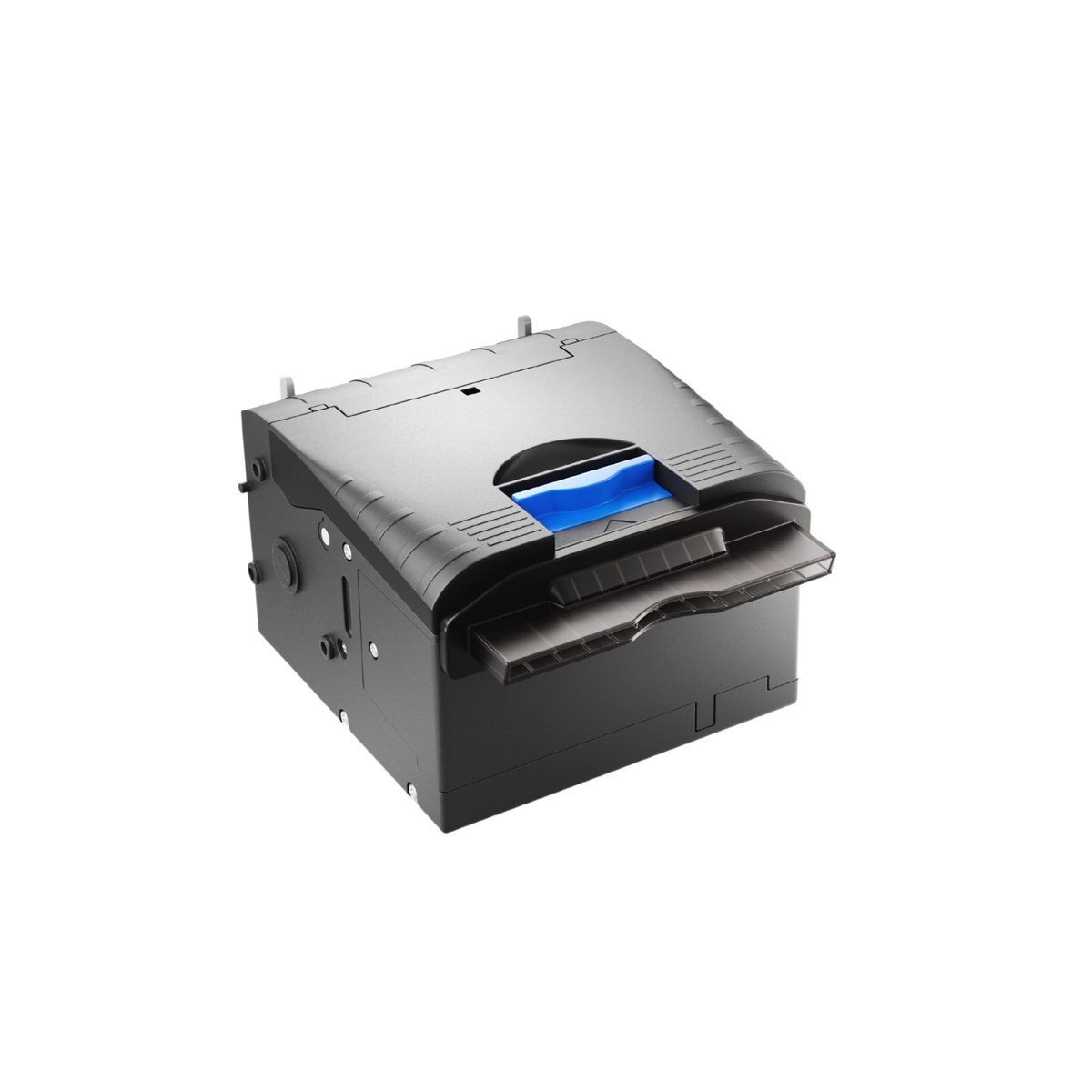

SK5-31UE-LQW-H-SP2
SK5 · Kiosk 2-3" Adjustable Paper Guide · Holder · Presenter · LED Bezel · USB/LAN · Ext PS Needed · CB-SK1-D12 And CB-SK1-D13 Cable Included
Meet the future of high-speed kiosk printing with Star Micronics’ SK5-31 Thermal Kiosk Printer. Boasting a high print speed of 250mm/s at a resolution of 203dpi, this fully housed, standout device guarantees sharp, top-quality prints in seconds. The SK5-31 features innovative anti-jam technology, user-friendly maintenance, multiple connectivity options (USB/Serial or USB/LAN), an adjustable paper guide, and a unique paper eject assistance function, ensuring seamless operation even in high-volume environments. With its stylish design and robust versatility supporting a broad range of applications, the SK5-31 printer sets a new standard in efficient, reliable, and professional-grade printing solutions.
SK5-31UE-LQW-H-SP2
SK5-31UE-LQW-H-SP2 — Complete Specifications
| Specification | Detail |
|---|---|
| Printer Method | Direct Line Thermal Printing |
| Print Speed | Max 250mm/sec |
| Paper Ejection Speed | Max 600mm/sec |
| Paper/Ticket Ejection Length | 60mm - 250mm |
| Adjustable Paper Width | 54mm to 82.5mm (variable paper widths) |
| Print Widths | Max 80mm |
| Paper Diameter | 150mm standard (with options that extend to 200mm or 254mm) |
| Presenter | Clamp mode (bottom loop only), Retract mode, Continuous mode |
| Paper Sensors | Near-end Sensor, Paper-end Sensor, BM (Black mark) Sensor, Presenter Sensor |
| Resolution | 8 dots/mm (203 dpi) |
| Font | 8x16, 12x24 dots |
| Character Types | Katakana, PC437/850/852/857/858/863/865/866/860/862/864/737, WPC1252/1252_2/1254/1250/1251/PC1253 |
| Bar Code | UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128, GS1 Databar Omni-directional, Truncated, Limited, Stacked, Stacked Omni-directional |
| 2D Bar Code | QR, MicroQR, MaxiCode, MicroPDF417, PDF417, DataMatrix |
| Interface | USB2.0/Serial (RS-232C) or Ethernet(LAN)/USB2.0 models available |
| Emulation Modes | StarPRNT or ESC/POS |
| Cutter | Full cut |
| Operating Temperature | -20oC to 70oC |
| Optimal Print Quality Temperature | 5oC to 40oC |
| Operating Humidity | 20 to 85% (non condensing) |
| Operating Voltage | DC 24V |
| External Dimensions | 116 x 143.5 x 76.4mm (W x D x H) (including LED Bezel, excluding paper holder and projections) |
| Reliability MCBF (Printer) | Print Head Auto Cutter Life 200 Million Lines 150km 2 Million Cuts or more |
| Safety Standard | VCCI, FCC, CE CLASS A |
| Warranty | 1 Year Standard Warranty |
Source: official Star Micronics product data.
6 Highlights
Speed and Quality
High-speed printing up to 250mm/s with exceptional print clarity at 203dpi resolution
Design and Usability
Fully enclosed printer design with an integrated presenter for easy maintenance. It features a stylish design, standard LED Bezel, and presenter for increased usability.
Versatility and Paper Handling
Able to print on receipts, traditional black mark labels, and black mark tickets with an adjustable 2-inch to 3-inch paper guide. It features an anti-paper jam function, easy paper jam removal, and paper eject assistance function.
Connectivity and Compatibility
USB/Serial (RS-232C) or Ethernet (LAN)/USB models. It's compatible with StarPRNT and ESC/POS emulation for effortless integration.
Advanced Features
Paper retract mode, receipt capture functionality for unclaimed tickets, and extraordinarily fast paper ejection speed of 600mm/s.
Longevity and Durability
Cutter life expectancy that doubles the competition and a comprehensive sensor system including paper-in, paper near-end, and paper load sensors.
