mPOP
Scanner · Desktop · 1D/2D Imager · USB Cable · Black · mC-Print and mPOP Compatible

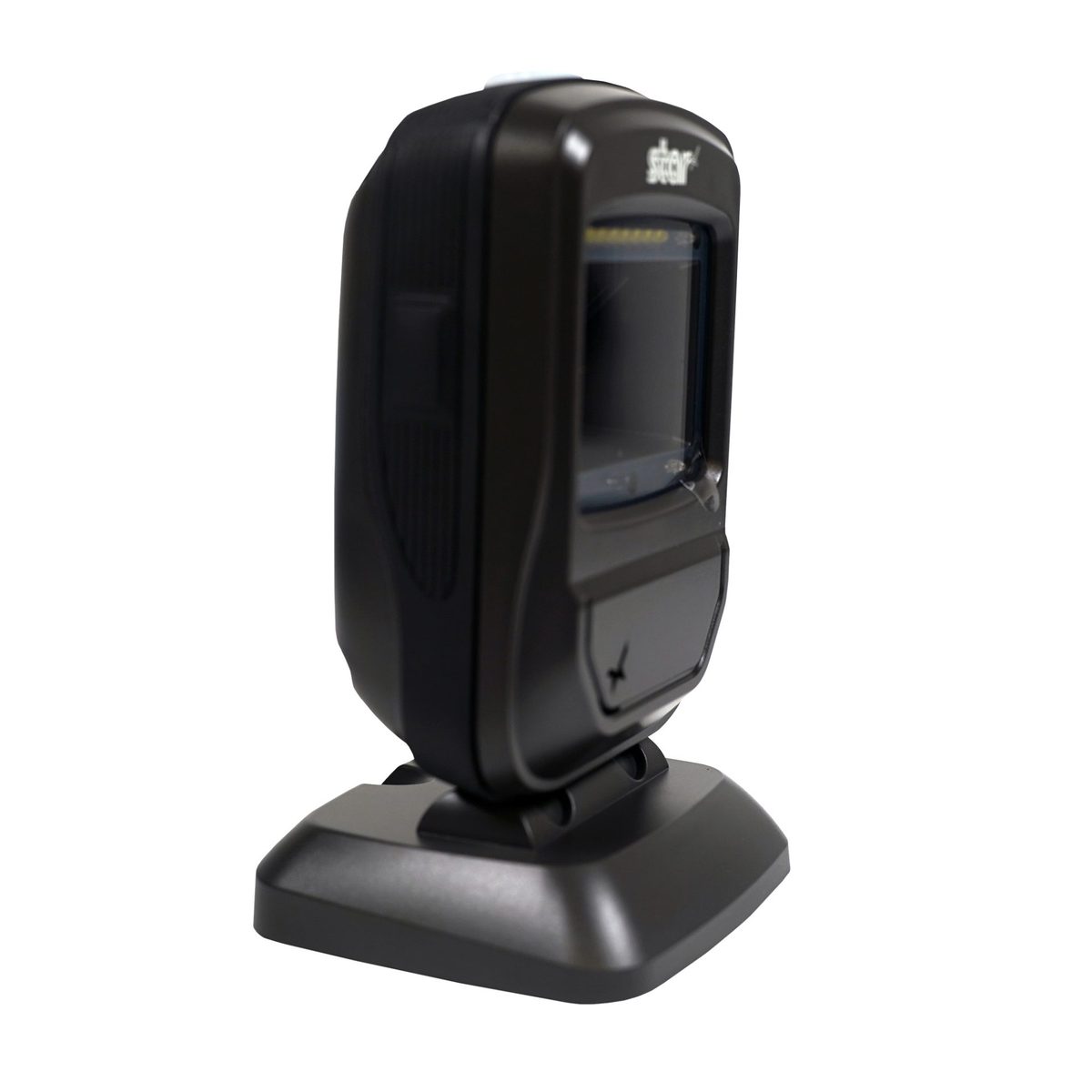

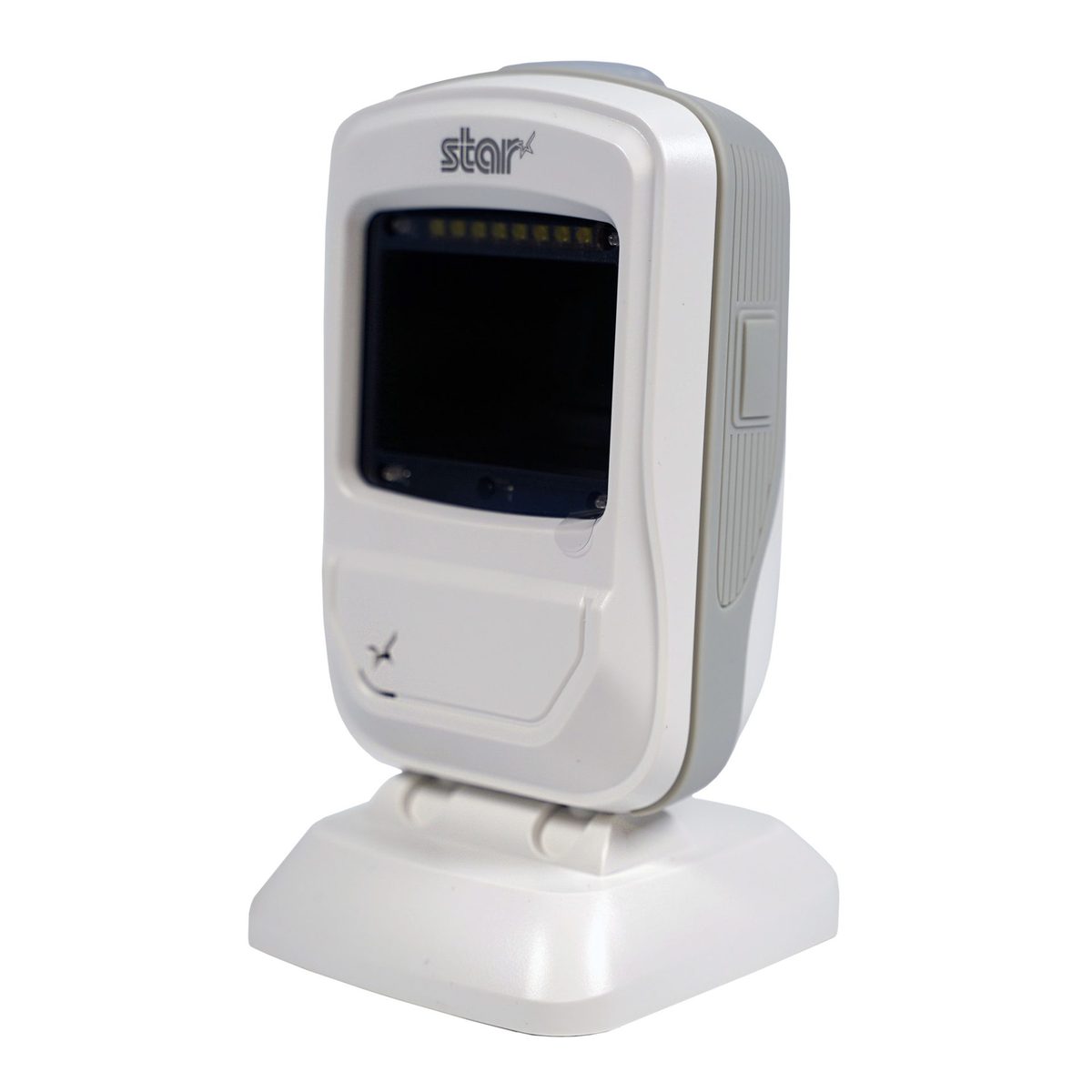

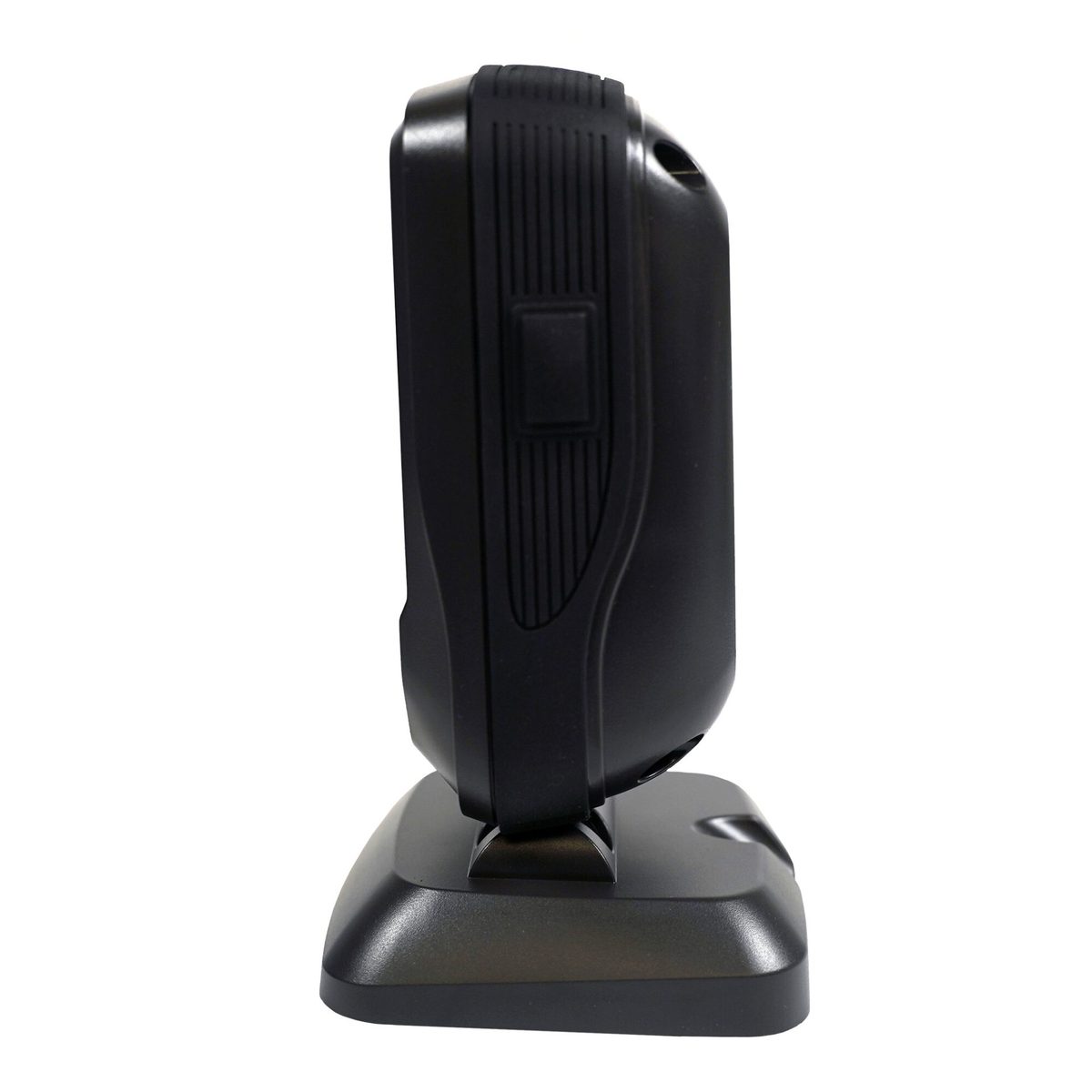

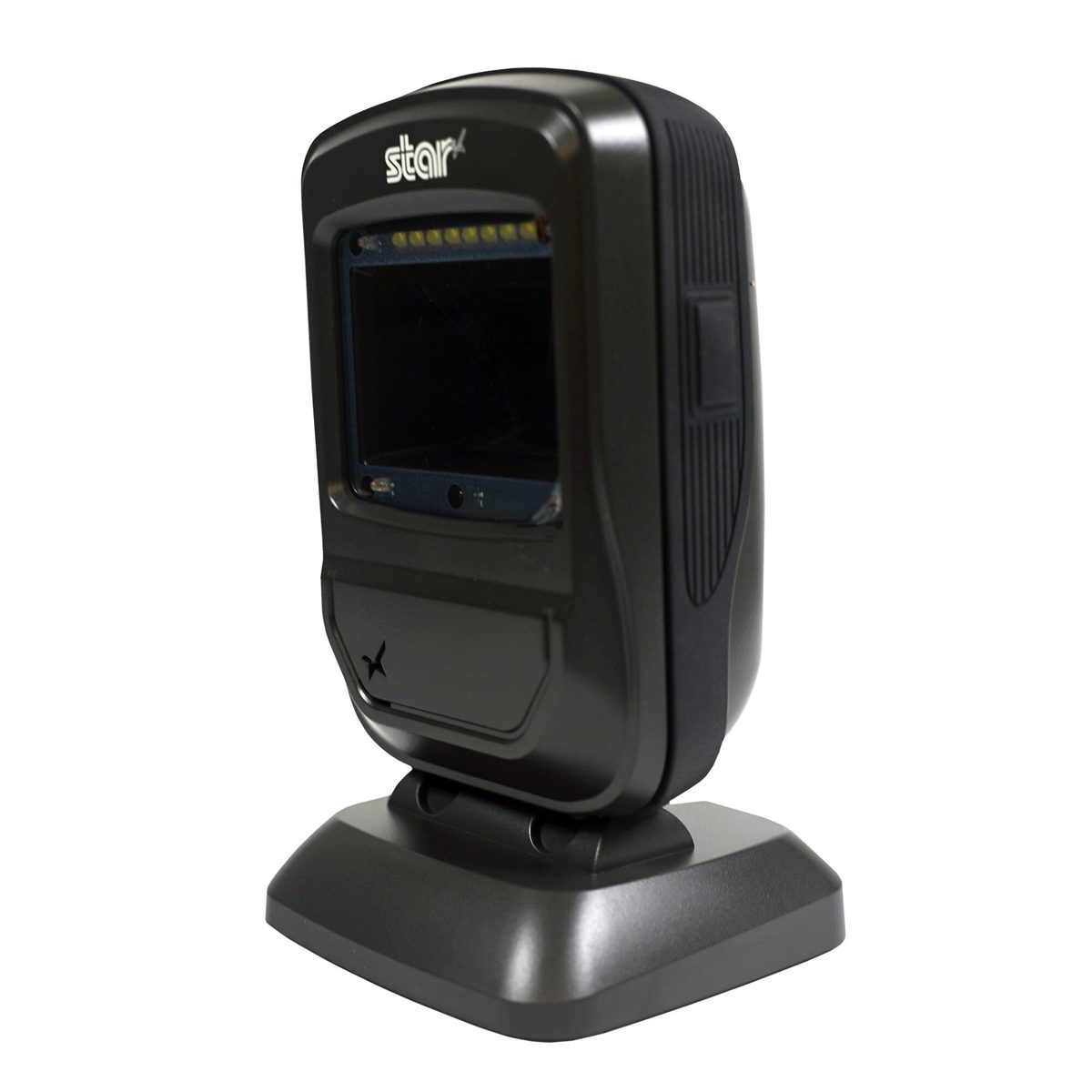

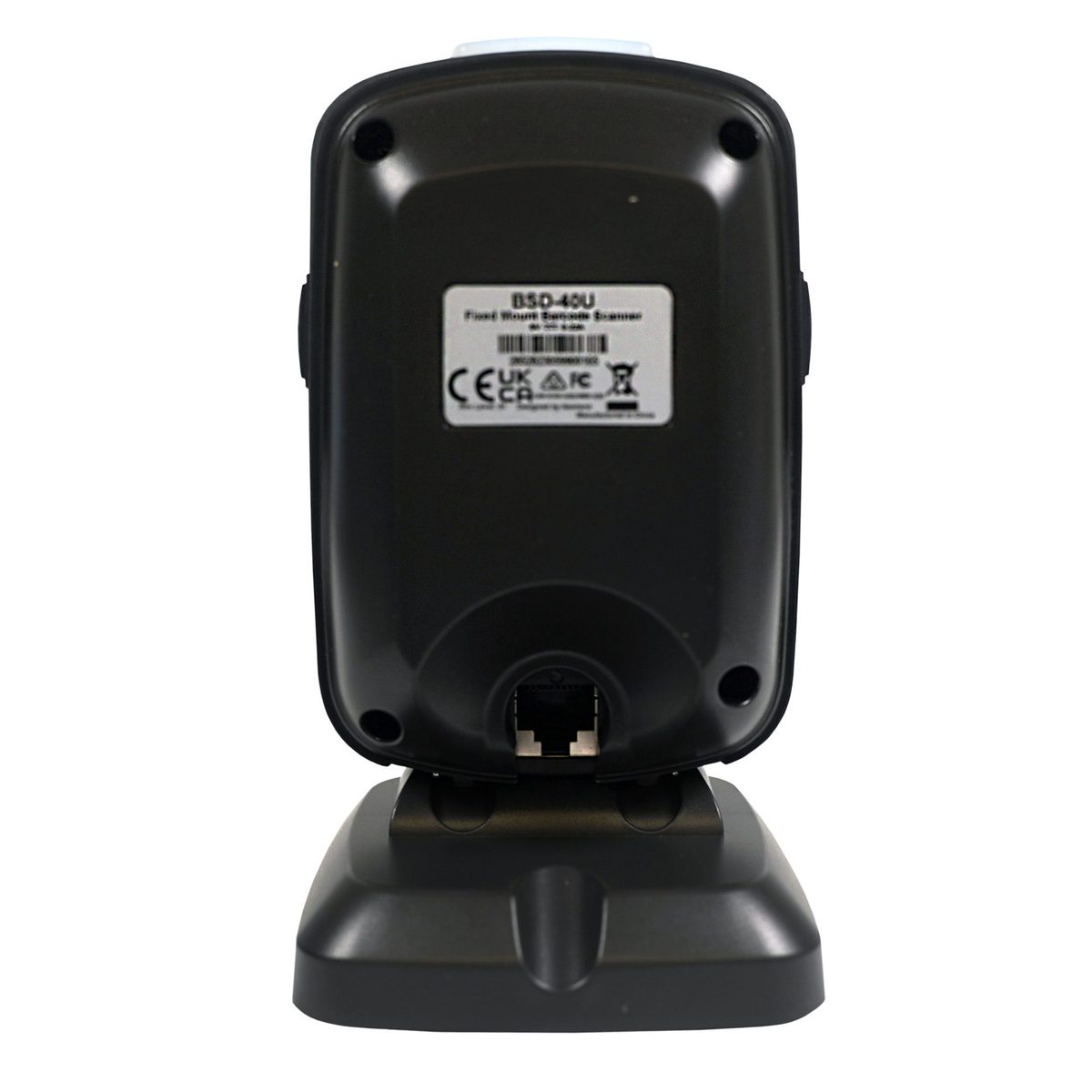

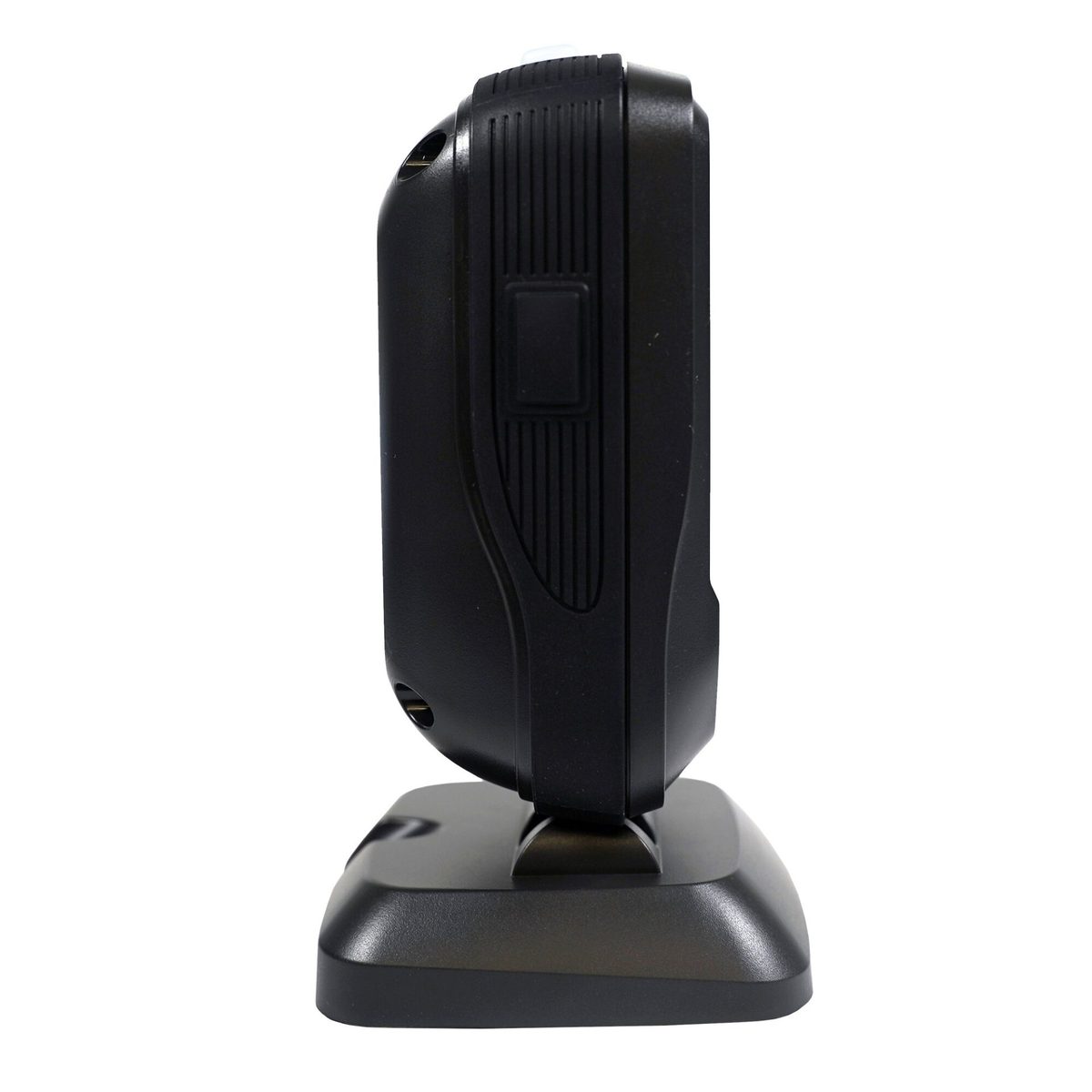

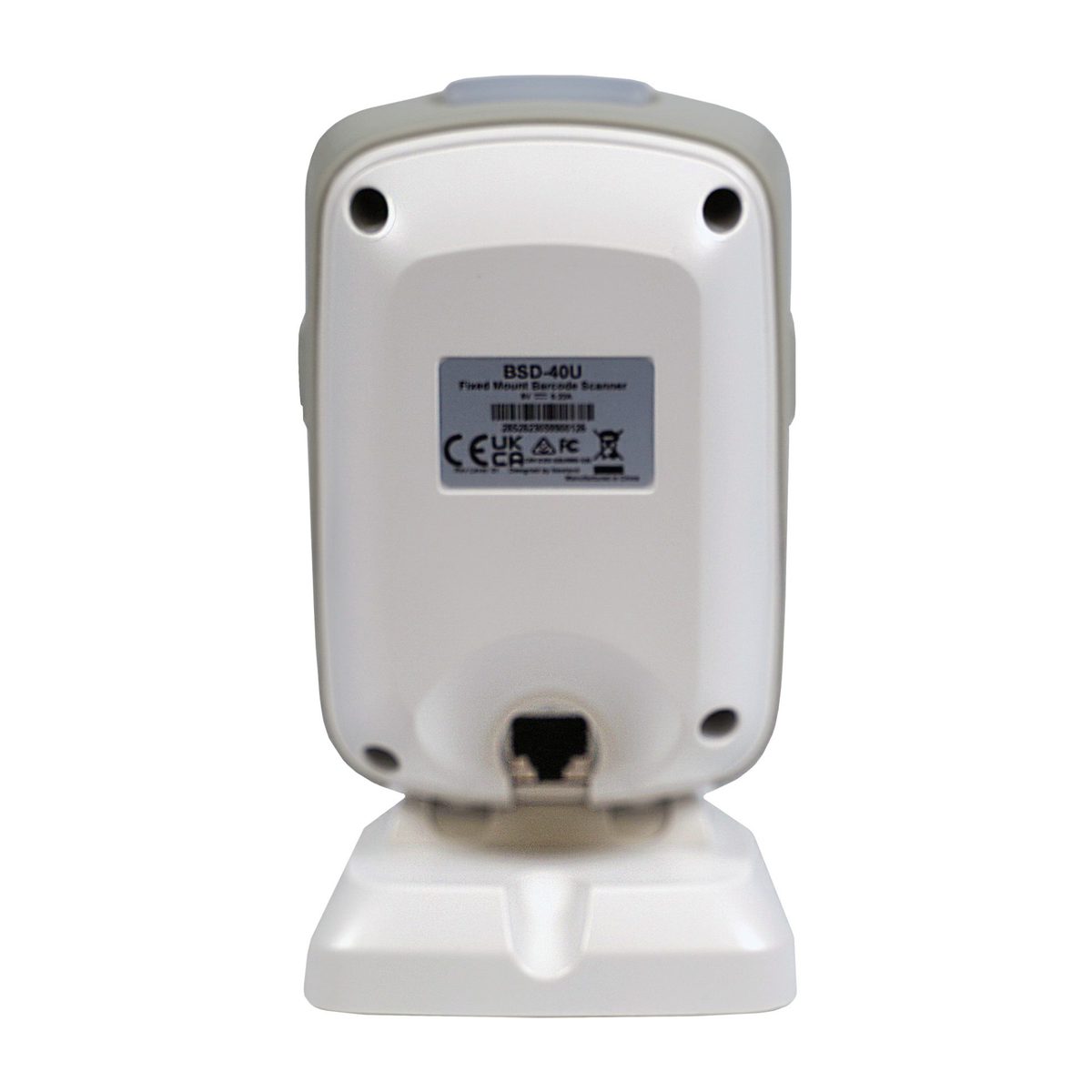

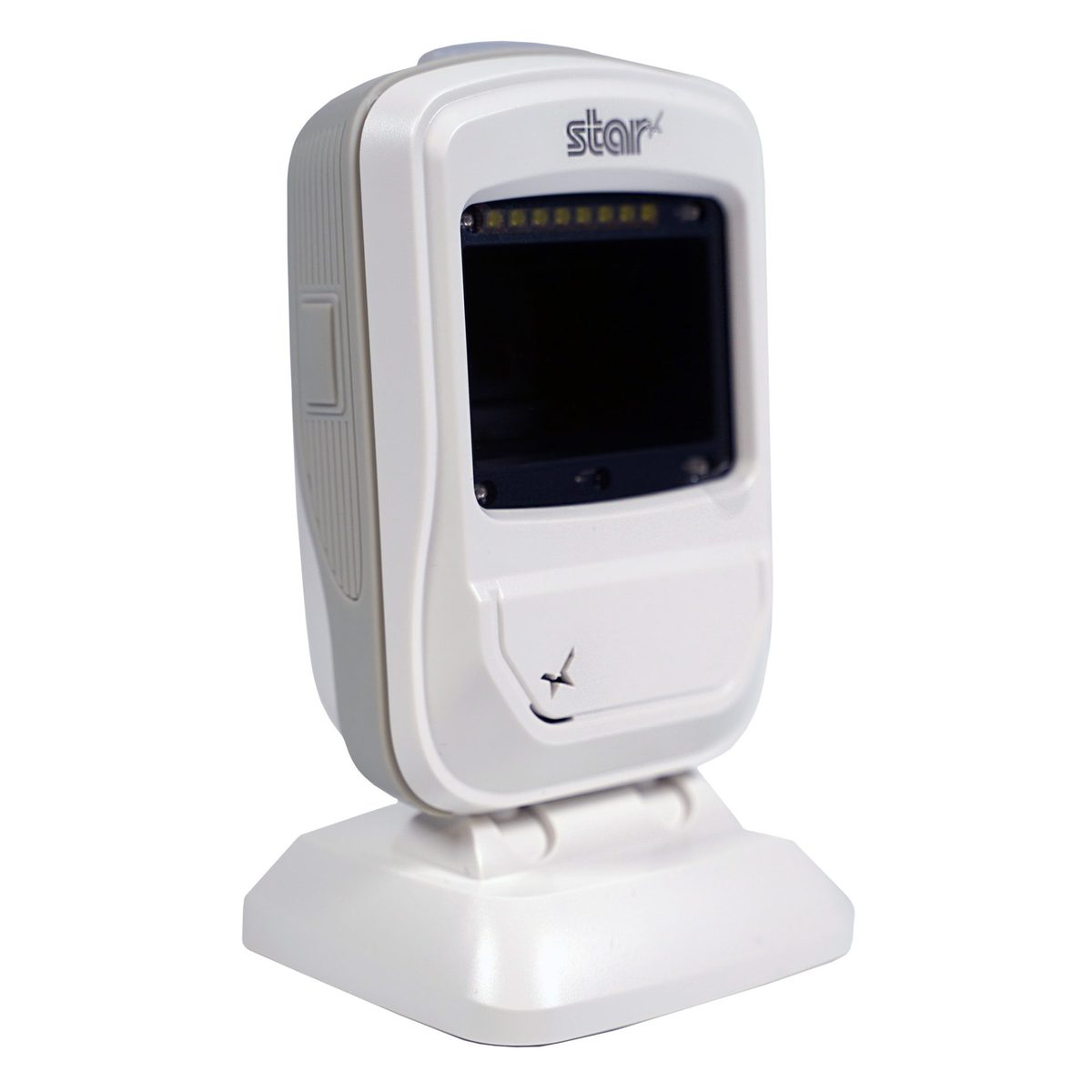

The BSD-40U is a top-tier 2D desktop barcode scanner, blending high performance with reliable design. It efficiently and accurately reads 1D and 2D barcodes on a variety of surfaces, including paper, uneven media, and digital screens. This scanner’s advanced technology extends to reading and parsing data from IDs and driver’s licenses, making it versatile for age verification and other diverse business needs. It features exceptional motion tolerance and an IR sensor for fast scanning in multiple modes. Sleek and versatile, it’s compatible with all major platforms and plugs directly into any of Star’s mCollection® products.
mPOP
mPOP — Complete Specifications
| Specification | Detail |
|---|---|
| Image Sensor | 1280×800 (megapixel) CMOS |
| Illumination | White LED |
| Aiming | Red LED |
| Symbologies | 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec 1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS) |
| Resolution* | ≥3 mil |
| Typical Depth of Field* | EAN-13: 10 mm-210 mm (13 mil) Code39: 85 mm-220 mm (5 mil) QR Code: 10 mm-180 mm (15 mil) |
| Scan Angle | Pitch: ±50°, Roll: 360°, Skew: ±45° |
| Field of View | Horizontal 51°, Vertical 32° |
| Min Symbol Contrast | 25% |
| Driver’s License Parsing | Can parse according to American Association of Motor Vehicle Administrators (AAMVA) October 2020 Specification. |
| Interface | USB, RS232 |
| Operating Voltage | 5VDC±5% |
| Dimensions (L×W×H) | 82mm x 80mm x 147mm |
| Weight | 297g |
| Colors | Black, White |
| Notification | Beep, LED |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| ESD | ±14 KV (air discharge); ±8 KV (contact discharge) |
| Drop | 1.2 m |
| Sealing | IP52 |
Source: official Star Micronics product data.
8 Highlights
High-Resolution CMOS
Captures high-density, high-volume, and distorted barcodes on paper or screen
High-Performance CPU
Can read and parse barcodes, including IDs and driver's licenses
Customizable Functionality
Allows access to StarSCAN configuration utility to customize scanner functionality
POS System Compatibility
Plug directly into any POS system, including Star’s mCollection® products
High Performance
2.5m/s motion tolerance and large field of view (horizontal 51°, vertical 32°)
Durable
IP52-rated design and drop-resistant up to 1.2m
Efficient
Quickly toggles between normal mode and high-motion-tolerance mode
Warranty-Protected
The BSD-40U desktop barcode scanner comes with a 2-year warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR®
