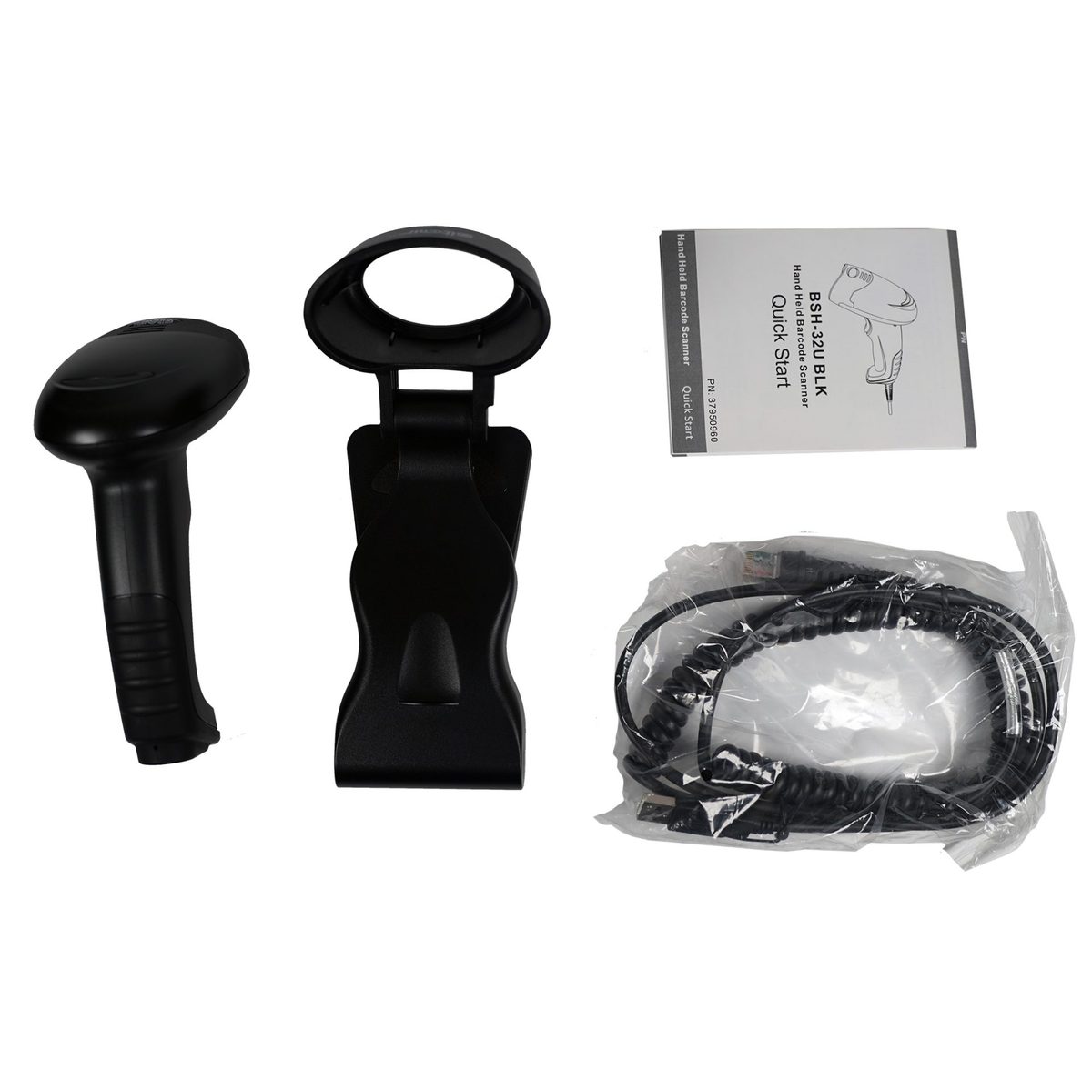

Scanner · Handheld · High Density 1D/2D Imager · USB Cable · Black · Includes Stand · mC-Print and mPOP Compatible

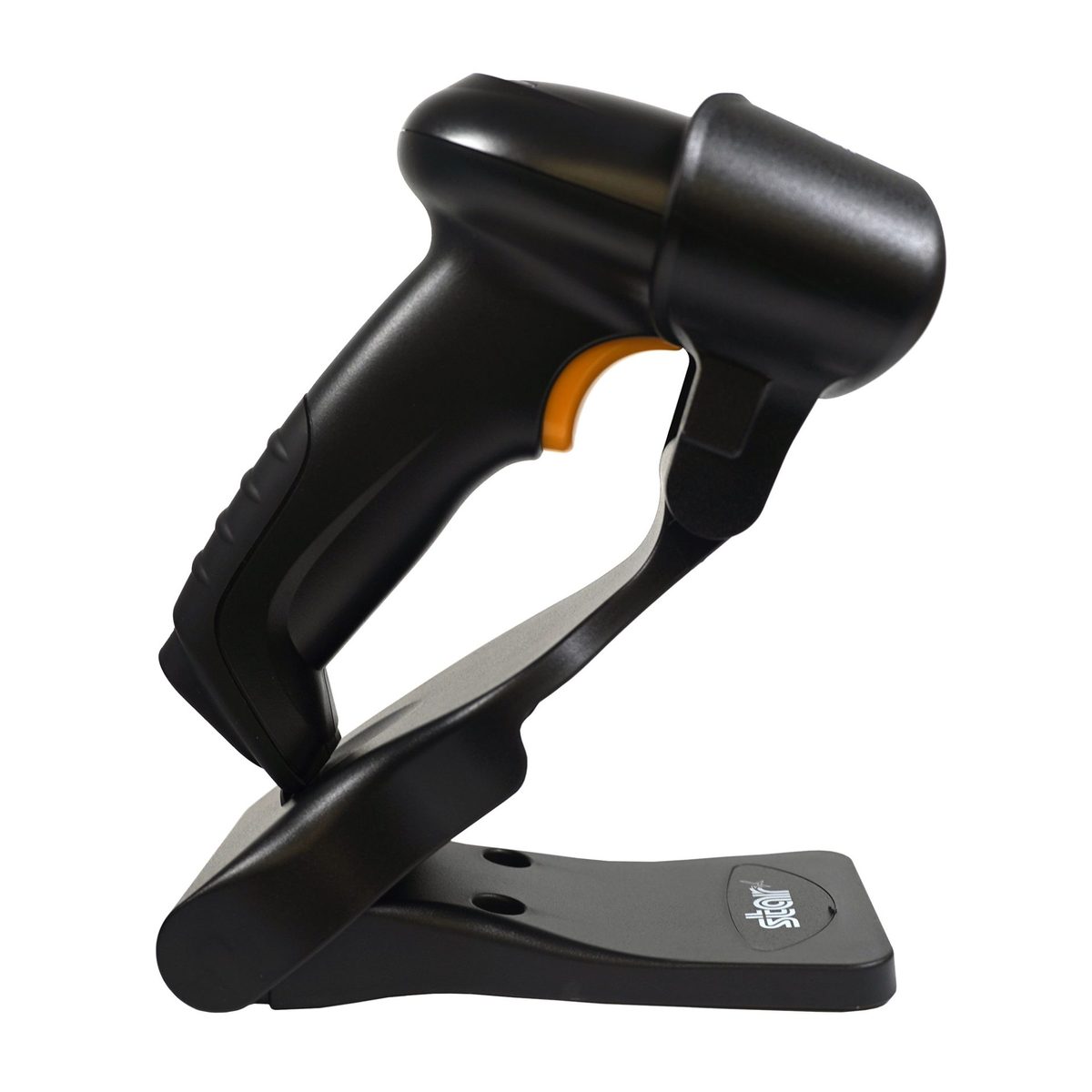

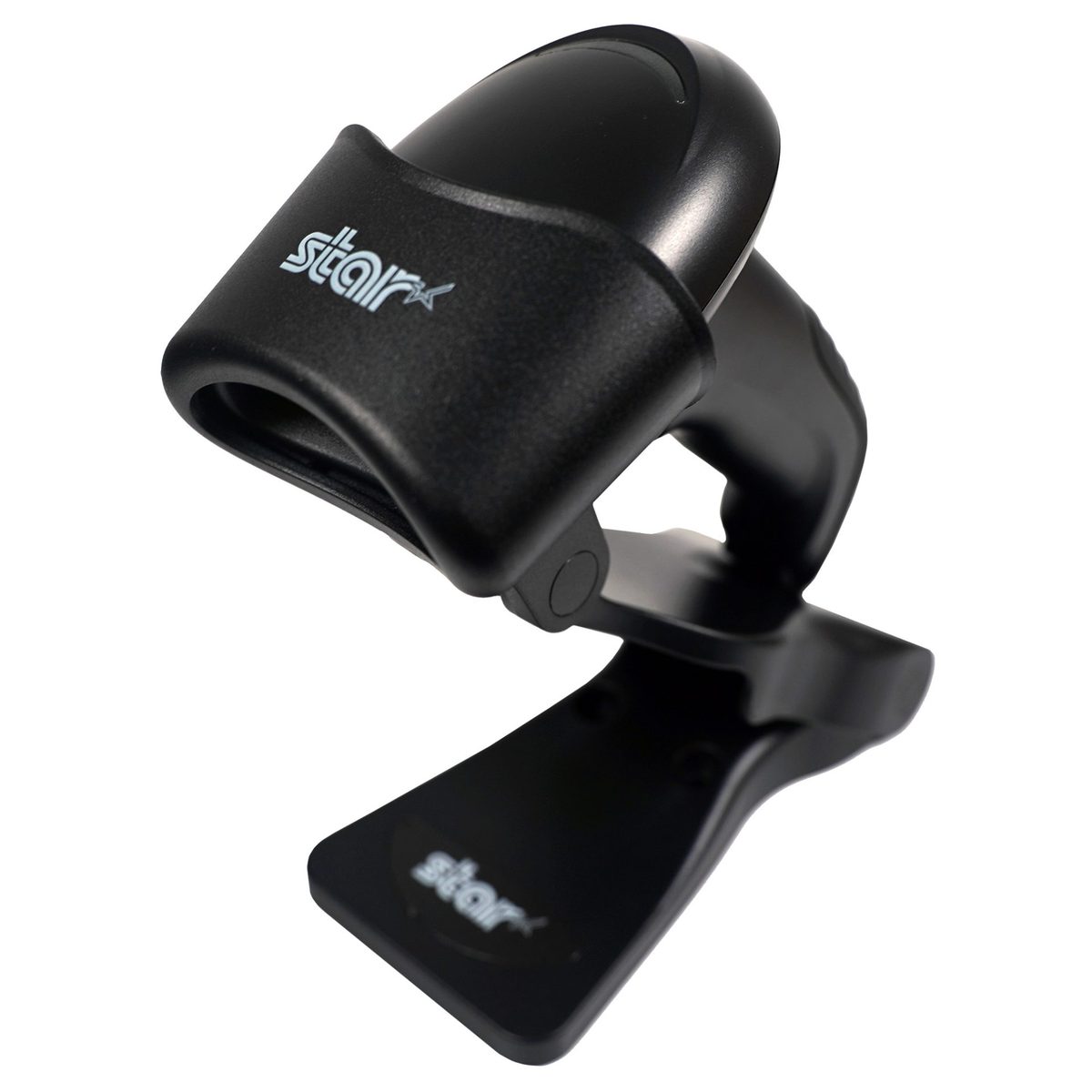

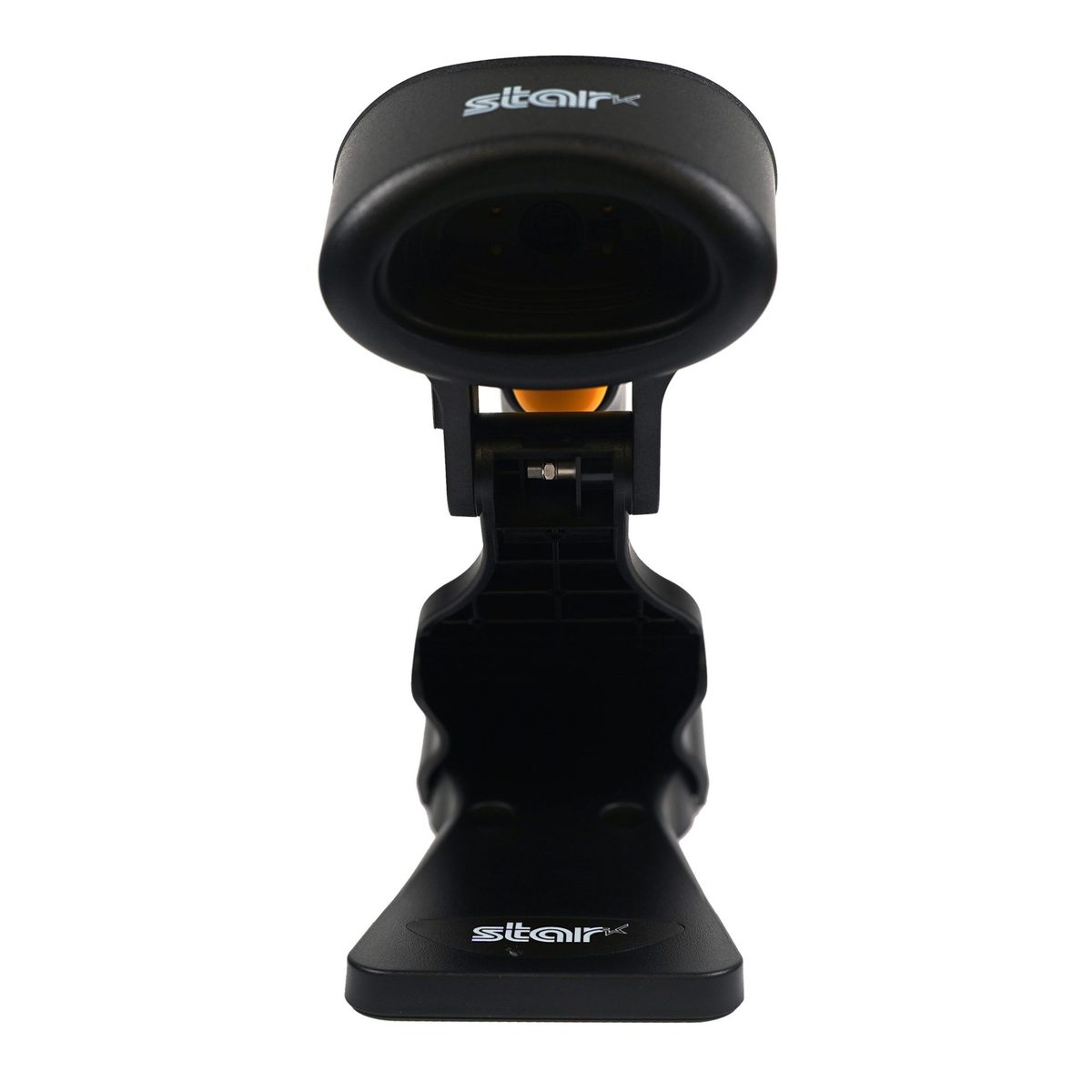

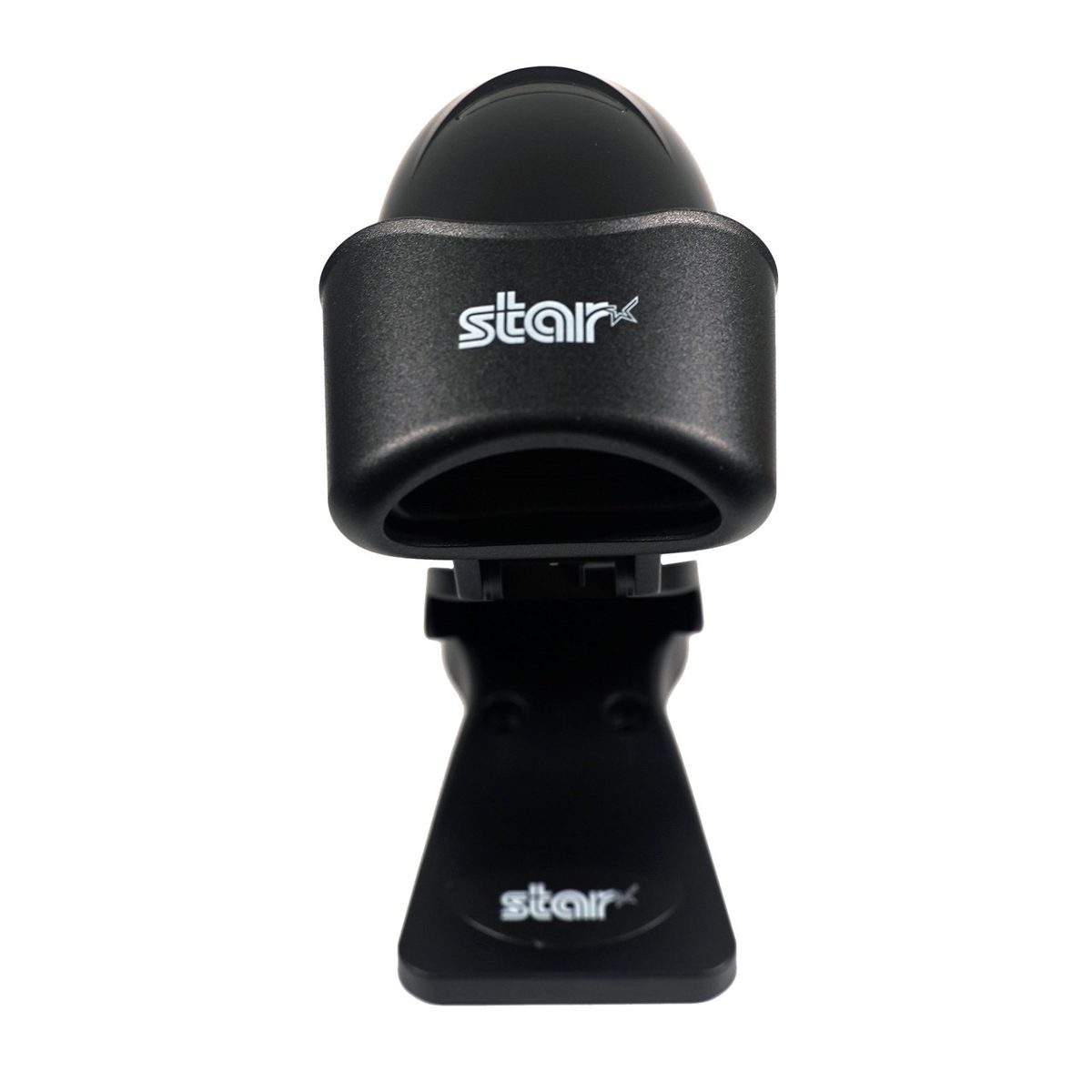

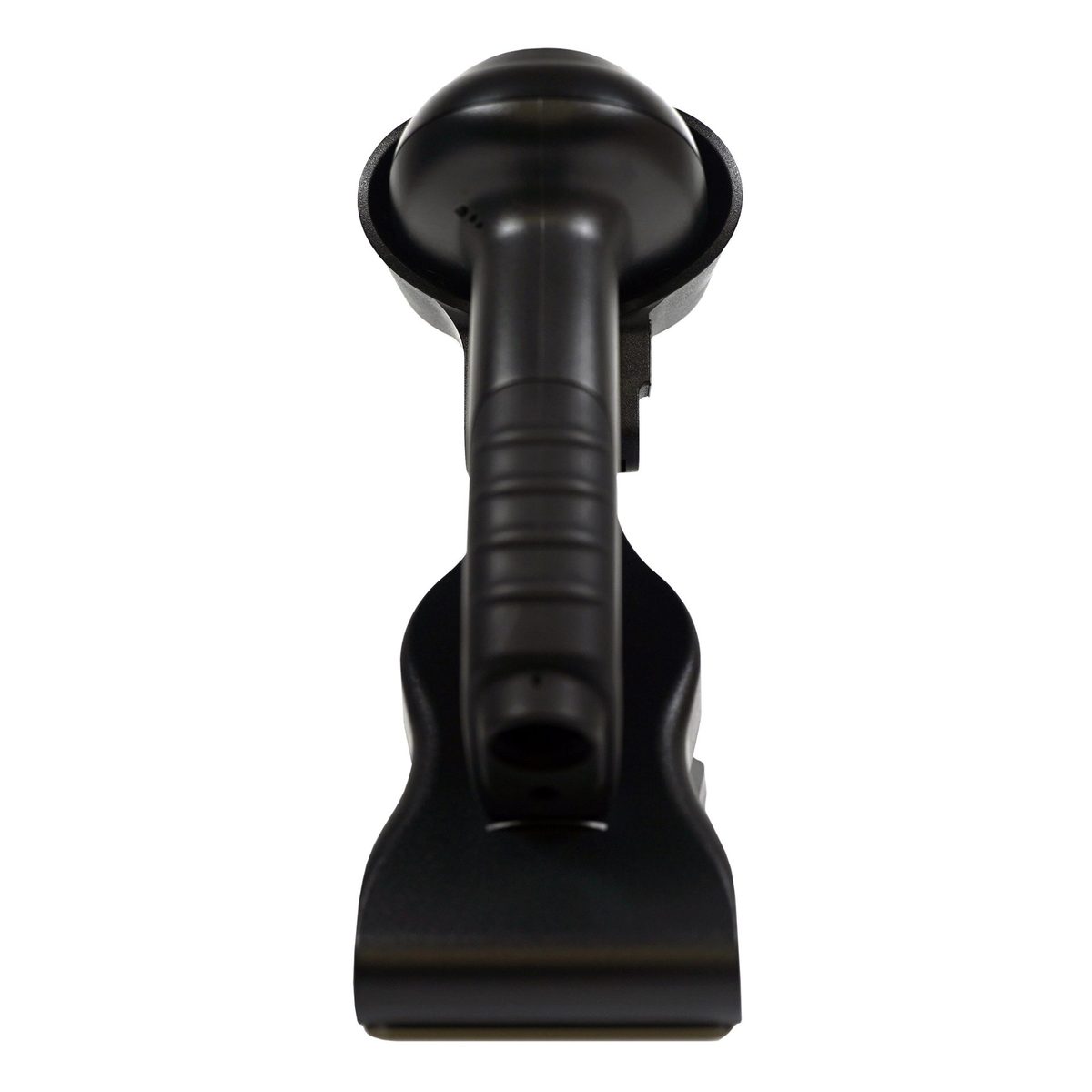

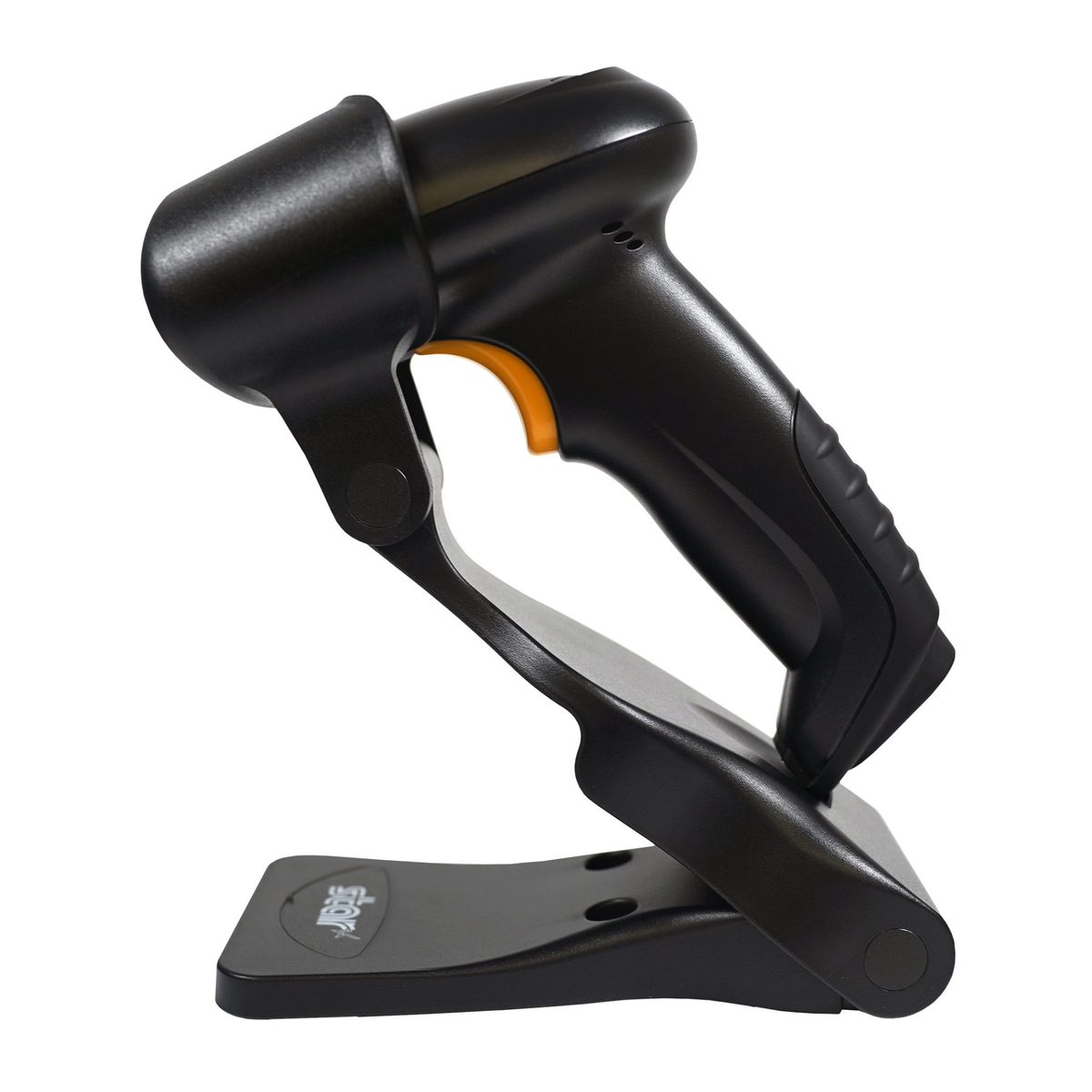

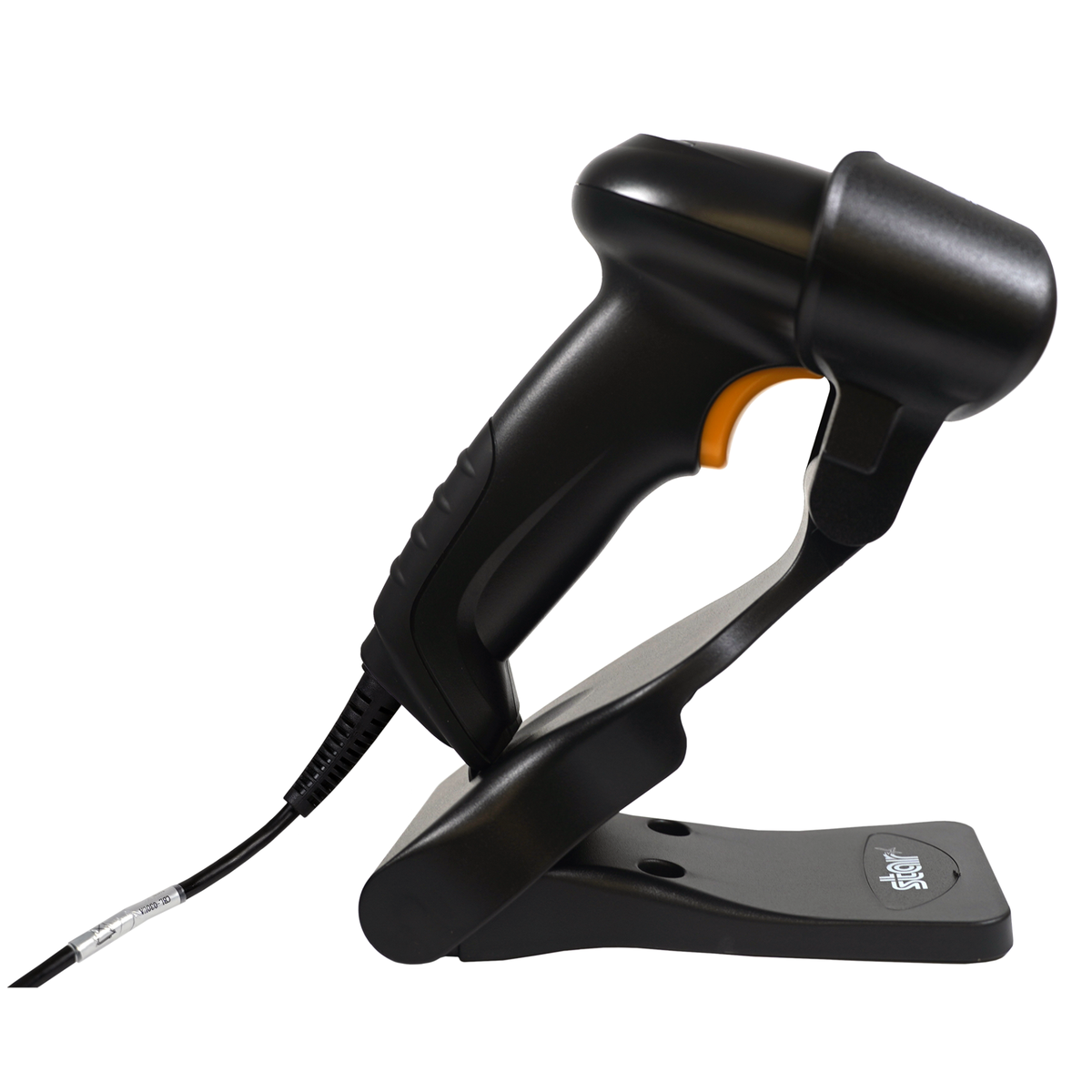

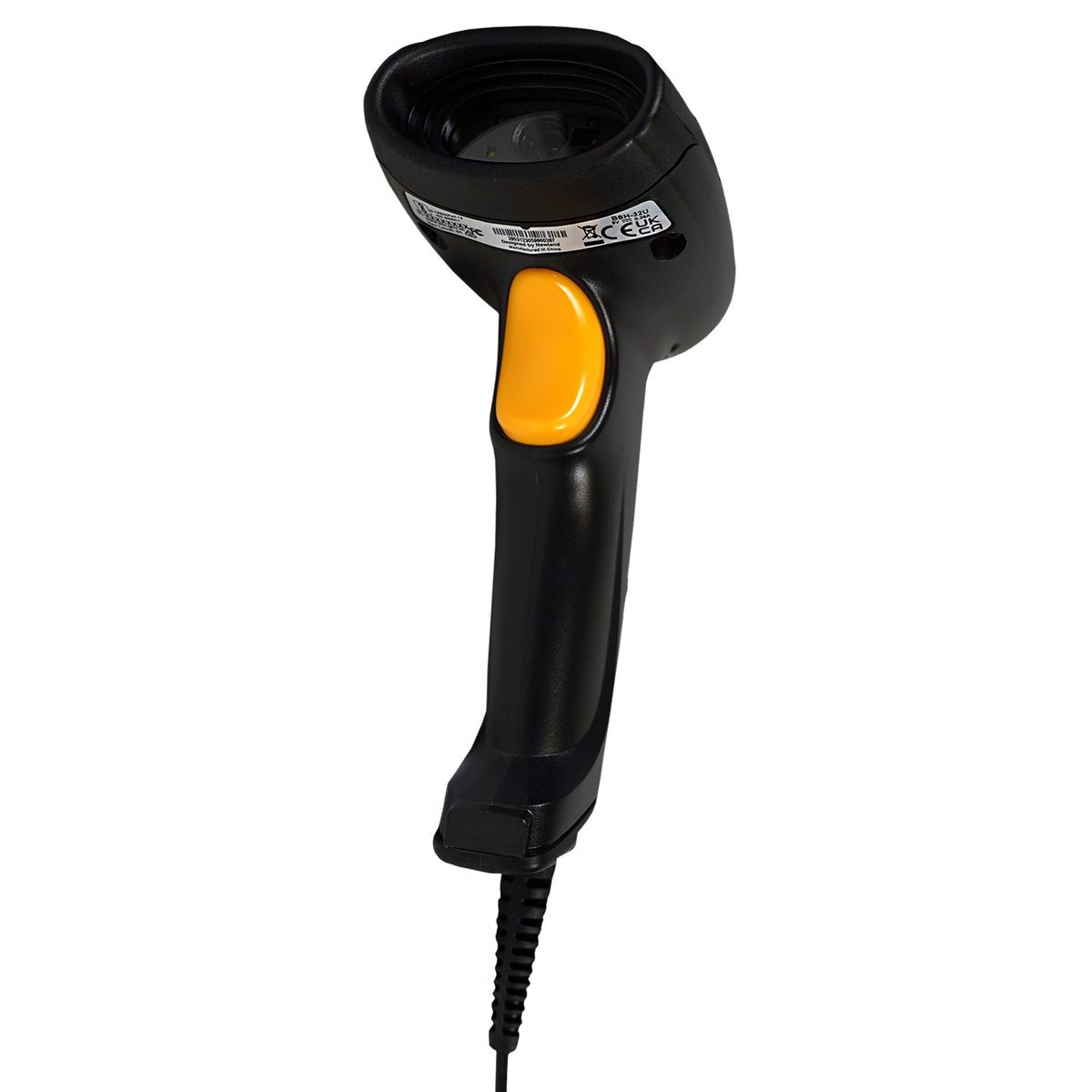

The BSH-32U from Star Micronics is a premium handheld USB barcode scanner that combines high performance with robust durability. Equipped with a powerful CPU and a super high-resolution image sensor, this scanner excels in various environments, including retail stores, bars and restaurants, event venues, and more. It adeptly reads and parses both 1D and 2D barcodes from paper, digital screens, and uneven surfaces, making it ideal for scanning IDs, driver’s licenses, QR codes, and product labels. Available in smooth black and Star-branded, the BSH-32U seamlessly plugs into any point-of-sale (POS) system, including Star Micronics’ mPOS product line, the mCollection®.
mPOP
mPOP — Complete Specifications
| Specification | Detail |
|---|---|
| Image Sensor | 1280×800 (megapixel) CMOS |
| Illumination | White LED & Red LED (622 nm-628 nm) |
| Aiming | Green LED (515 nm-535 nm) |
| Symbologies | 2D: PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode. 1D: EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128 |
| Resolution* | ≥3 mil |
| Typical Depth of Field* | EAN-13: 50 mm-495 mm (13 mil) Code39: 85 mm-220 mm (5 mil) PDF417: 70 mm-215 mm (6.7 mil) Data Matrix: 50 mm-220 mm (10 mil) QR Code: 20 mm-325 mm (15 mil) |
| Scan Angle | Pitch: ±55°, Roll: 360°, Skew: ±55° |
| Field of View | Horizontal 39°, Vertical 24° |
| Min Symbol Contrast | 25% |
| Driver’s License Parsing | Can parse according to American Association of Motor Vehicle Administrators (AAMVA) October 2020 Specification. |
| Interface | USB, RS232 |
| Operating Voltage | 5VDC±5% |
| Dimensions (L×W×H) | 113mm x 71mm x 158mm |
| Weight | 156g |
| Colors | Black |
| Notification | Beep, LED |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| ESD | ±15 KV (air discharge); ±8 KV (contact discharge) |
| Drop | 1.5 m |
| Sealing | IP42 |
Source: official Star Micronics product data.
8 Highlights
High-Resolution CMOS
Captures high-density, high-volume, and distorted barcodes on paper or screen
High-Performance CPU
Can read and parse barcodes, including IDs and driver's licenses
Customizable Functionality
Allows access to StarSCAN configuration utility to customize scanner functionality
POS System Compatibility
Plug directly into any POS system, including Star’s mCollection® products
Comfortable and Durable
Ergonomic, IP42-rated design and drop-resistant up to 1.5m
Star Quality
Star-tested for superior quality guaranteed
Warranty-Protected
BSH-32U wireless handheld barcode scanners come with a 2-year warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR®
Five Scanning Modes
Level Mode: The scanner's trigger will activate the decode session. The decode session continues until a barcode is decoded or you release the trigger.; Sense Mode: The scanner activates a decode session every time it detects a barcode presented to it.; Continuous Mode: The scanner automatically starts one decode session after another.; Pulse Mode: When the trigger is pulled and released, scanning is activated until a barcode is decoded or the decode session timeout expires.; Batch Mode: When the trigger is pulled and released, scanning is activated until the trigger is released.
