Receipt & Label Printers

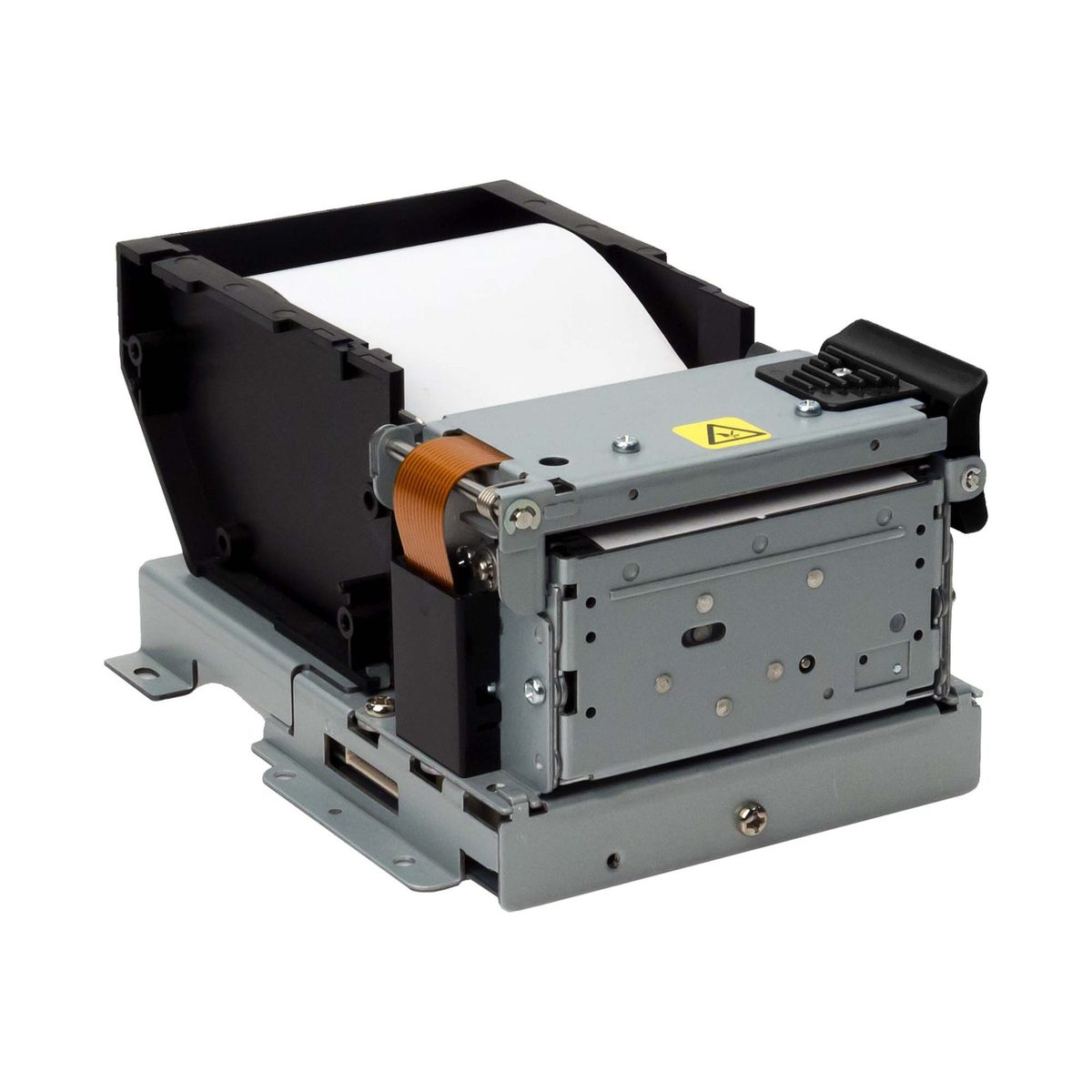

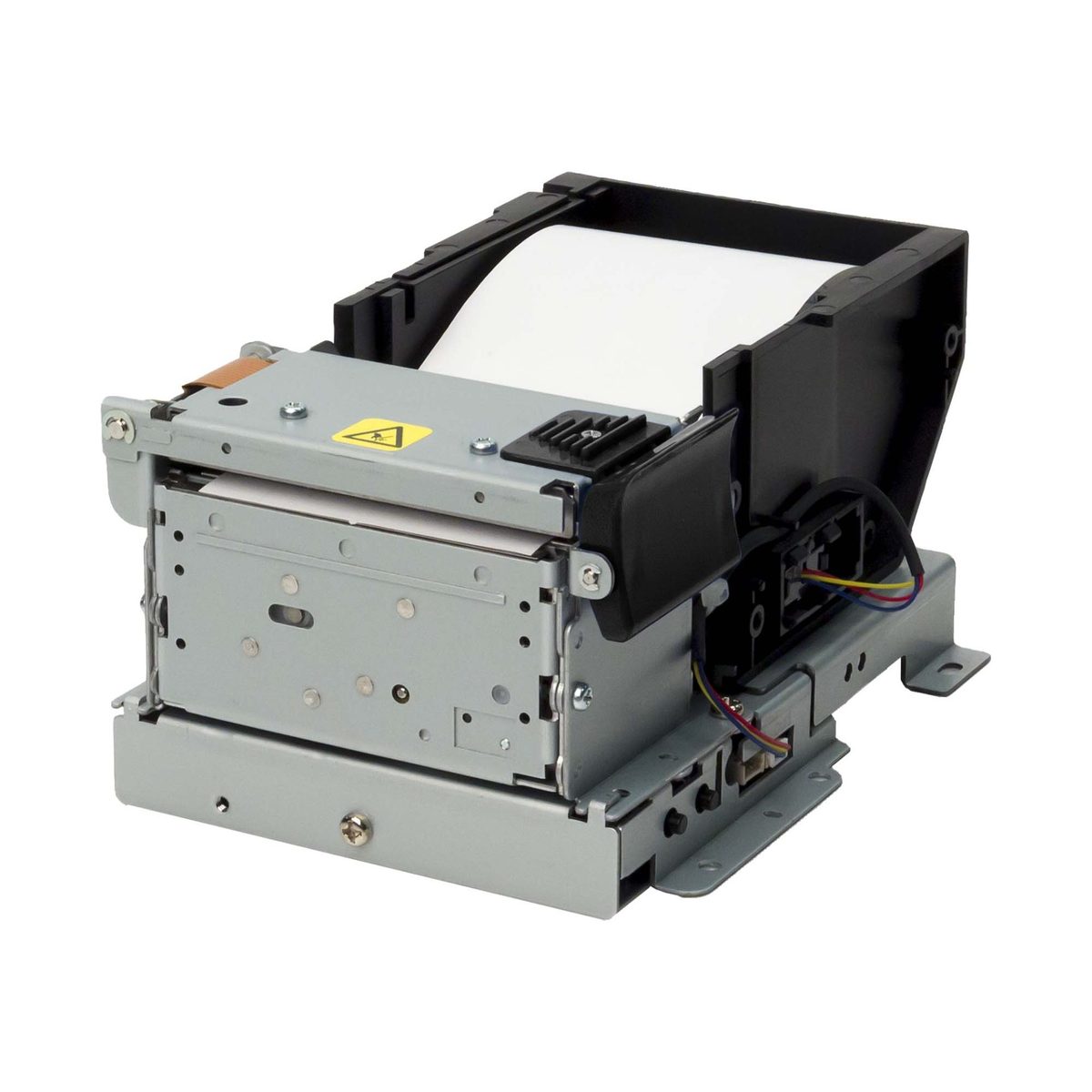

SK1-221SF2-Q-M-SP
SK1 · Kiosk 2" · Paper Basket · USB/Serial · Ext PS needed
For kiosks where space is a concern, the SK1-221 series printers offer a compact design that can fit into a variety of applications. Equipped with standard format (horizontal orientation) drop-in paper loading, the SK1-221 series is easy to set up and maintain. All SK1-221 models come with RS-232C and USB interfaces which integrate with many commonly used kiosk solutions.
PN 37963894 USB Serial
Technical Specifications
SK1-221SF2-Q-M-SP
Printer Method
Direct Line Thermal Printing
Print Speed
Max 250mm/sec
Resolution
8 dots/mm (203 dpi)
Paper Width
58mm, 60mm
Interface
Dual Serial (RS232C) & USB (V2.0 FULL SPEED)
Cutter
Full and partial cut (command selectable)
Operating Voltage
DC 24V
External Dimensions
SK1-22: 104 x 137 x 70 (W x H x D)
Reliability MCBF (Printer)
Print Head; Auto Cutter Life; 200 Million Lines; 150km; 2 Million Cuts
Bar Code
JAN8/13, CODE39, ITF, CODABAR, CODE128, UPC-A/E
Full Specifications
SK1-221SF2-Q-M-SP — Complete Specifications
| Specification | Detail |
|---|---|
| Printer Method | Direct Line Thermal Printing |
| Print Speed | Max 250mm/sec |
| Paper Width | 58mm, 60mm |
| Print Width | 54mm, 56mm |
| Paper Roll Holder | 83mm |
| Resolution | 8 dots/mm (203 dpi) |
| Font | 8x16, 12x24 dots |
| Character Types | PC437/820/852/857/858/860/863/865/866, WPC 1252 |
| Bar Code | JAN8/13, CODE39, ITF, CODABAR, CODE128, UPC-A/E |
| 2D Bar Code | QR, Maxicode, Micro PDF-417, PDF-417, DataMatrix |
| Interface | Dual Serial (RS232C) & USB (V2.0 FULL SPEED) |
| Cutter | Full and partial cut (command selectable) |
| Operating Temperature | -20oC to 60oC |
| Optimal Print Quality Temperature | 5oC to 40oC |
| Operating Humidity | 20 to 85% (non condensing) |
| Operating Voltage | DC 24V |
| External Dimensions | SK1-22: 104 x 137 x 70 (W x H x D) |
| Reliability MCBF (Printer) | Print Head Auto Cutter Life 200 Million Lines 150km 2 Million Cuts |
| Safety Standard | CE, FCC, VCCI |
| Warranty | 1 Year Warranty for Parts and Labor |
Source: official Star Micronics product data.
Key Features
4 Highlights
High Speed
Max 250mm/sec
High Reliability
MCBF: 200 Million Pulses; Guillotine Auto-Cutter: 2 Million Cuts
2 Inch Paper Width
Provides small width tickets or receipts to customers to fit your application
Easy to Integrate
SK1-22 (drop-in paper loading with low profile and small foot print)
