TSP143IV
TSP100IV · Liner-free Thermal Printer for Sticky Paper · Cutter · USB-C · Ethernet (LAN) · CloudPRNT · Android Open Accessory (AOA) · GRY · Ethernet and USB Cable · Int PS · EscPOS Emulation
Introducing the TSP143IV SK series from Star Micronics: the pinnacle of thermal linerless removable label printing in a sleek, compact form. As the market’s smallest 3-inch desktop sticky label printer, it blends advanced features like Android Open Accessory (AOA) support, dual-band wireless connectivity, and CloudPRNT Next technology with eco-friendly linerless labels. Ideal for a variety of applications, from food and beverage service (QSR) to delivery, this printer enhances efficiency with its repositionable labels that adhere to any surface without leaving residue. The TSP143IV SK is a step forward in printing technology and environmental responsibility, making it a perfect fit for modern businesses.
TSP143IV
TSP143IV — Complete Specifications
| Specification | Detail |
|---|---|
| Printer Method | Direct Line Thermal |
| Print Speed | Up to 180 mm/sec |
| Printer Case Color | Black (Gray) |
| Connectivity | TSP143IVUE SK Models: USB/LAN Dual Interface (USB-C and USB-A), CloudPRNT Next, AOA (Android Open Accessory support) TSP143IV SK X4 Models: USB-C, Ethernet (LAN), WLAN, Bluetooth, CloudPRNT Next, AOA (Android Open Accessory support) |
| Print Resolution | 203 dpi (8 dots per mm) |
| No. of Columns | Star Mode = 48 |
| Font Size | 12 x 24 |
| Character Set | ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
| International Code Pages | Star Mode=48 |
| Bar Codes | Extended barcode functionality - 9 versions / PDF 417, Maxicode Option |
| Line Spacing | 3 mm or 4 mm or programmable |
| Paper Width | 80 mm standard, 58 mm, and 40 mm with paper guides |
| Paper Thickness | 65 - 98 um |
| Paper Roll Diameter | Up to 83 mm |
| Paper Loading | "Drop-In & Print" |
| Paper-Out Sensor | Yes |
| Maximum Print Width | 80 mm paper = 72 mm, 58 mm paper = 50.8 mm, 40 mm paper = 34.5 mm |
| Top Margin | 5 mm default, changeable to 11 mm |
| Auto-Cutter | Guillotine (Partial Cut Only) |
| Sensors | Taken Paper End Cover Open |
| Logo Store Capacity | 512 KB Internal Printer Memory |
| Journal Capability | Available through Starmicronicscloud.com |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™ (Windows/Mac/Linux), USB Vendor Clss, CUPS Driver (Mac/Linux), Mac, Mac OS X, Linux™, StarPRNT SDK (iOS/Android/Windows Desktop/UWP), StarXpand SDK (React Native), Star WebPRNT Brower (Android), Star PassPRNT (iOS/Android/UWP) |
| Digitally Signed (WHQL) | Yes |
| Emulation Modes | Star Graphics Mode/StarPRNT |
| Peripheral Drive Circuit | 2 circuits, (24V max. 1A), 1 compulsion input |
| Power Consumption | Average 1.6 Amp. Printing, 0.1 Amp. Standby [Approx. 43W while printing; up to 53 W with a 1.5 A device connected. Approx 3.5 W in Standby;up to 13 W with a 1.5A device connected] |
| Operating Temperature | 5oC to 45oC |
| Operating Humidity | 10% - 90% RH (without condensation) |
| Storage Temperature | Temperature: -20oC to 60oC |
| Storage Humidity | 10% - 90% RH |
| Dimensions | 140 X 123 X 169 (w x h x d) mm |
| Weight | 1.3 kg |
| Safety and Regulatory Standards | UL, C-UL, TuV, FCC, VCCI, EN55022 {This is one part of FCC testing probably do not need to list it}, CE |
| Reliability MCBF | 23.5 Million Lines |
| Print Head | 75 km |
| Auto-Cutter Reliability | 800,000 cuts |
| Sustainability* | Eco Friendly Packaging |

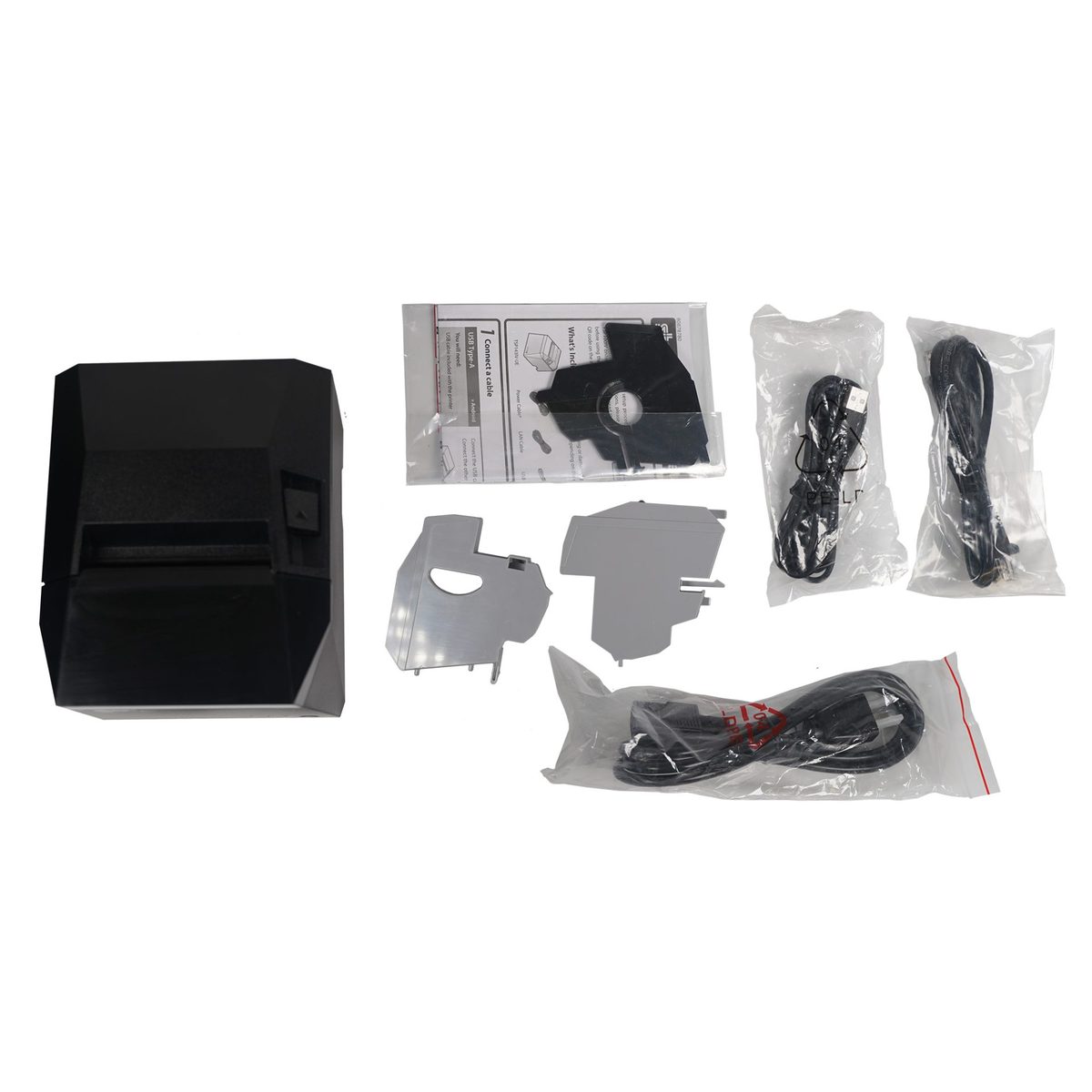

| What's in the Box | Power Cable LAN Cable (UE model only) USB Cable (C to A) Paper Roll Guide (58 mm) Paper Roll Guide A/B (39 mm) Rubber Feet x 2 Safety Instructions Easy Setup Guide |
| Warranty-Protected | The TSP143IV SK comes with a 2-year standard warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR® |
Source: official Star Micronics product data.
7 Highlights
Ultra-Compact and Stylish Design
The TSP143IV SK series offers a sleek, compact form with the smallest 3" sticky label footprint in the market, perfect for maximizing counter space.
Eco-Friendly with Linerless Labels
EnergyStar-certified and capable of printing repositionable linerless sticky labels, the TSP143IV SK series is an eco-conscious choice for businesses aiming to reduce waste.
Advanced Connectivity
The TSP143IV SK X4 includes USB, LAN, WLAN, and Bluetooth connectivity, while all models support Android Open Accessory (AOA) for seamless communication and power delivery to Android devices.
CloudPRNT Next
Both models feature CloudPRNT Next technology, delivering fast and reliable cloud printing through MQTT protocol, ideal for remote operations and large-scale environments.
Dual-Band Wireless
The TSP143IV SK X4 offers dual-band Wi-Fi (2.4GHz/5GHz) with quick and easy setup using Star's Quick Setup Utility or QR code.
Space-Saving Design
The compact design and internal power supply of the TSP143IV SK series ensure modern aesthetics and functional operation, even in tight spaces.
Warranty-Protected
The TSP143IV SK series includes a 2-year standard warranty with options to EXTEND-A-STAR® and SWAP-A-STAR®.
