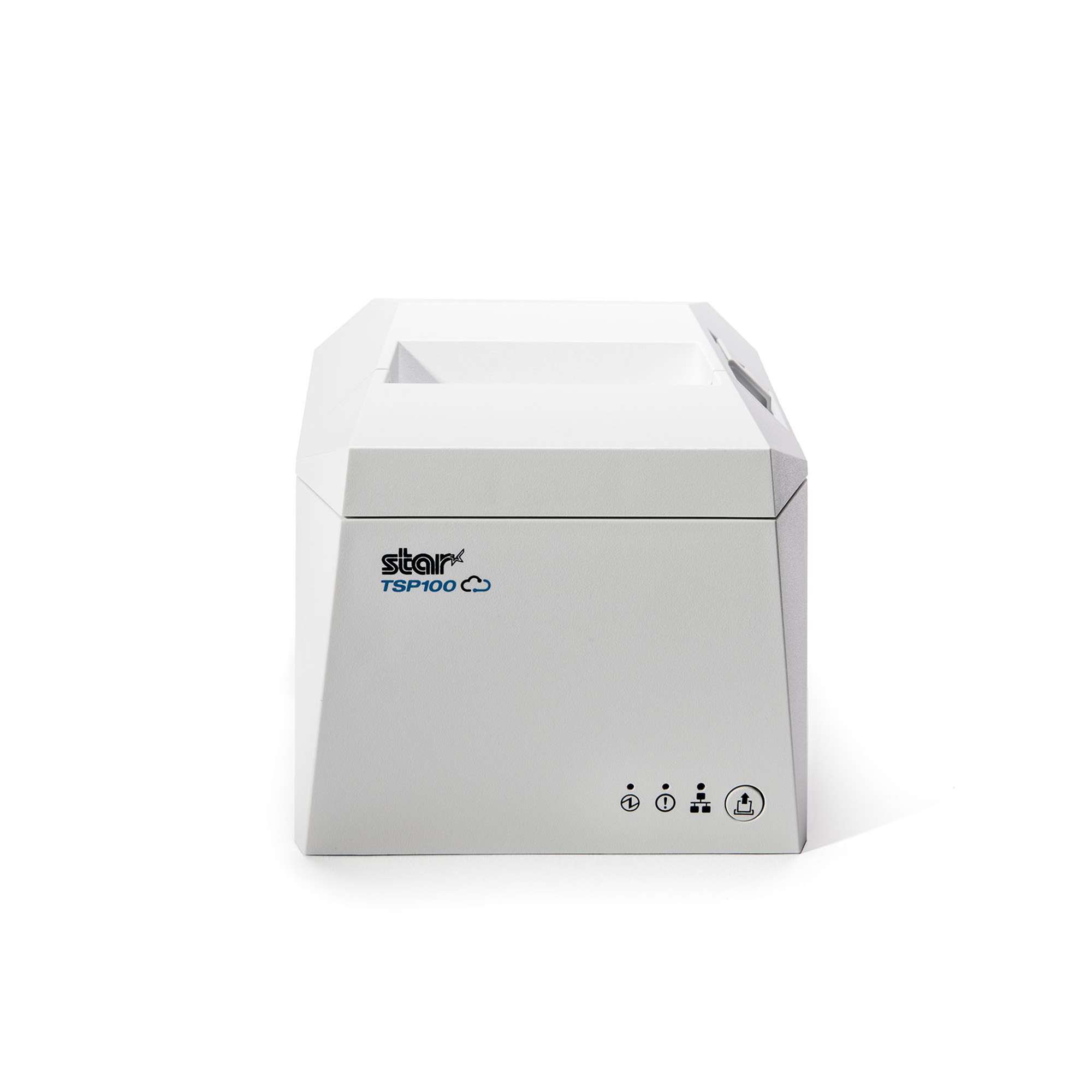

TSP143IV
TSP100IV · Thermal · Cutter · USB-C · Ethernet (LAN) · CloudPRNT · Android Open Accessory (AOA) · White · Ethernet and USB Cable · Int PS
The TSP143IV series thermal receipt printer from Star Micronics combines advanced technology with a sleek, compact design that’s 20% smaller than its predecessor. It offers four versatile connectivity options—USB, LAN, WLAN, and Bluetooth (X4 models only)—and ensures seamless compatibility with Windows, iOS, Android, and cloud-based applications. Featuring CloudPRNT Next for faster, more reliable cloud printing, dual-band WLAN with easy setup, and Android Open Accessory (AOA) support, the TSP143IV is designed for efficiency and adaptability. High-speed printing, EnergyStar certification, and access to Star Micronics Cloud Services make this printer the ideal solution for modern mPOS and POS environments.
TSP143IV
TSP143IV — Complete Specifications
| Specification | Detail |
|---|---|
| Printer Method | Direct Line Thermal |
| Print Speed | 250 mm/sec |
| Printer Case Color | White or Gray |
| Connectivity | TSP143IV UE Models: USB/LAN Dual Interface (USB-C and USB-A), Android Open Accessory (AOA), CloudPRNT Next (with updated firmware) TSP143IV X4 Models: USB-C, LAN, WLAN, and Bluetooth, Android Open Accessory (AOA), CloudPRNT Next |
| Print Resolution | 203 dpi (8 dots per mm) |
| No. of Columns | Star Mode = 48 |
| Font Size | 12 x 24 |
| Character Set | ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
| International Code Pages | Star Mode=48 |
| Bar Codes | Extended barcode functionality - 9 versions / PDF 417, Maxicode Option |
| Line Spacing | 3 mm or 4 mm or programmable |
| Paper Width | 80mm standard, 58mm with paper guide |
| Paper Thickness | 0.049 ~ 0.085 mm |
| Paper Roll Diameter | Up to 83 mm |
| Paper Loading | "Drop-In & Print" |
| Paper-Out Sensor | Yes |
| Maximum Print Width | 80mm paper = 72mm, 58mm paper = 50.8mm |
| Top Margin | 11 mm default |
| Auto-Cutter | Guillotine (Partial Cut Only) |
| Cover-Open Sensor | Yes |
| Logo Store Capacity | 512KB Internal Printer Memory |
| Journal Capability | Available through Starmicronicscloud.com |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™ (Windows/Mac/Linux), USB Vendor Clss, CUPS (Mac/Linux), Mac, Mac OS X, Linux™, StarPRNT SDK (iOS/Android/Windows Desktop/UWP), StarXpand SDK (React Native), Star WebPRNT Brower (Android), Star PassPRNT (iOS/Android/UWP) |
| Digitally Signed (WHQL) | Yes |
| Emulation Modes | Star Graphics Mode/StarPRNT |
| Peripheral Drive Circuit | 2 circuits, (24V max. 1A), 1 compulsion input |
| Power Consumption | Average 1.6 Amp. Printing, 0.1 Amp. Standby [Approx. 43W while printing; up to 53 W with a 1.5 A device connected. Approx 3.5 W in Standby;up to 13 W with a 1.5A device connected] |
| Operating Temperature | 5oC to 45oC |
| Operating Humidity | 10% - 90% RH (without condensation) |
| Storage Temperature | Temperature: -20oC to 60oC |
| Storage Humidity | 10% - 90% RH |
| Dimensions | 140 X 123 X 169 (w x h x d)mm |
| Weight | 1.3kg |
| Safety and Regulatory Standards | UL, C-UL, TuV, FCC, VCCI, EN55022, CE |
| Reliability MCBF | 60 Million Lines |
| Print Head | 100km |
| Auto-Cutter Reliability | 2 Million Cuts |
| Sustainability* | Eco Friendly Packaging |
| What's in the Box | Power Cable LAN Cable (UE model only) USB Cable Paper Guide Rubber Feet Safety Instructions Easy Setup Guide |
| Warranty-Protected | The TSP143IV comes with a 2-year standard warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR® |
Source: official Star Micronics product data.
7 Highlights
Compact and Modern Design
About 20% smaller than the TSP143III, the TSP143IV can be wall-mounted vertically or placed on a desktop
AOA Technology
Both TSP143IVUE and TSP143IV X4 models feature Android Open Accessory (AOA) protocol, enabling smooth communication and power delivery to Android devices
CloudPRNT Next
Both models support Star’s CloudPRNT Next technology, offering faster, more reliable cloud-based printing through MQTT protocol
Connectivity Options
The TSP143IV X4 includes USB, LAN, WLAN, and Bluetooth connectivity, while the TSP143IVUE features dual USB/LAN interfaces
Star Cloud Ready
Connect to any cloud application that supports Star’s CloudPRNT technology and also access Star Micronics Cloud Services for device monitoring, custom-designed coupons, and more
Warranty-Protected
The TSP143IV comes with a 2-year standard warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR®
Compatible with Previous Versions
Easily swap out your previous TSP100s with the new TSP143IV
