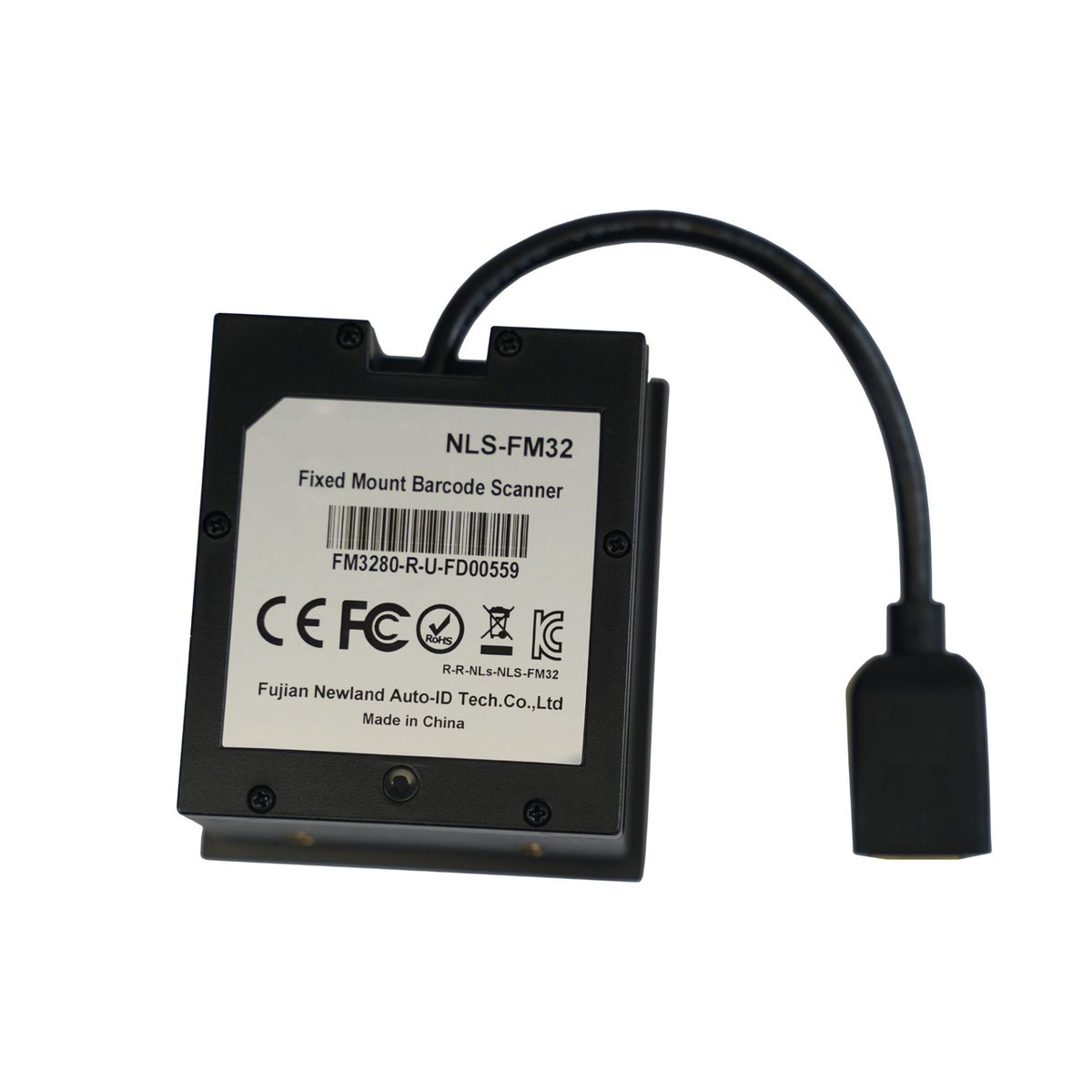

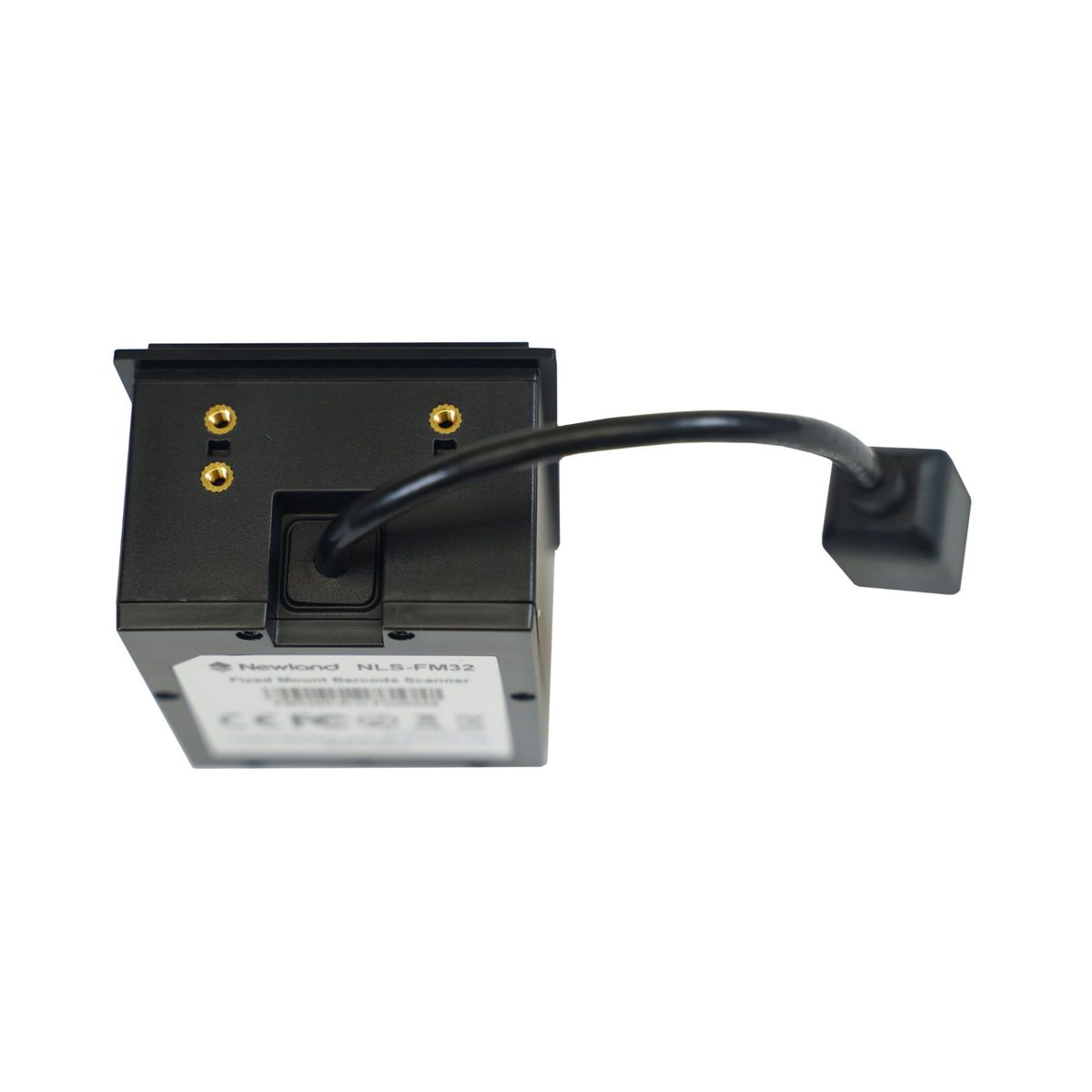

NLS-FM3280-R-U
Scanner · Kiosk · High Density 1D/2D Imager · Fast Reading · IP65 · USB Cable · Black
The NLS-FM3280 kiosk barcode scanner provides fast, close-range scanning for customer-facing self-service environments. Designed for fixed-mount integration, it reads printed and mobile 1D and 2D barcodes with hands-free operation and responsive presentation scanning. Its wide field of view and soft illumination make it well-suited for retail self-checkout kiosks, ticketing stations, parking systems, hospitality kiosks, loyalty programs, and library self-service applications. Compact and easy to integrate, the FM3280 helps support fast, intuitive kiosk workflows in high-traffic environments.
NLS-FM3280-R-U
NLS-FM3280-R-U — Complete Specifications
| Specification | Detail |
|---|---|
| Model | NLS-FM3280-R-U |
| Product Type | Fixed-Mount Kiosk Barcode Scanner |
| Image Sensor | 1280 × 1088 CMOS |
| Illumination | 3000K White LED |
| Resolution | ≥3mil |
| 2D Symbologies | PDF417, Data Matrix, QR Code, Micro QR, Aztec, and more |
| 1D Symbologies | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, Code 39, ITF, MSI Plessey, GS1 Databar, and more |
| Postal Codes | USPS Postnet, Intelligent Mail, Royal Mail, KIX Post, Australia Post, Japan Post |
| Typical Depth of Field | Up to 310mm depending on barcode type and size |
| Scan Window | 45mm × 45mm |
| Scan Modes | Sense Mode, Continuous Mode, Command Mode |
| Scan Angle | Pitch: ±60°, Roll: 360°, Skew: ±60° |
| Field of View | Horizontal: 58.2° | Vertical: 66° |
| Minimum Symbol Contrast | 25% |
| Connectivity | USB, RS-232 |
| Operating Voltage | 5–24VDC ±5% |
| Current @ 5VDC | 220mA (Typical) |
| Notification | Beeper |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5%–95% (Non-Condensing) |
| ESD Protection | ±15KV Air Discharge | ±8KV Direct Discharge |
| Sealing | IP67 (excluding interface) |
| Dimensions | 78.7(W) × 47.7(D) × 67.7(H) mm |
| Weight | 132g |
| Certifications | FCC Part 15 Class B, CE EMC Class B, RoHS |
| Included in Box | Scanner, RJ45-to-USB-A Cable, Quick Start Guide |
| Color | Black |
Source: official Star Micronics product data.
8 Highlights
Close-Range Presentation Scanning
Allows customers to quickly scan barcodes without precise positioning.
Wide Field of View
Makes barcode capture faster and easier in self-service environments.
Reads Mobile and Printed Barcodes
Supports digital tickets, loyalty apps, payment codes, and printed labels.
Hands-Free Scanning
Helps improve transaction speed and reduce customer interaction time.
IR and Light Trigger Sensors
Automatically activates scanning when a barcode is presented.
Soft Illumination
Suitable for front-facing kiosk installations and customer-facing environments.
Reads High-Density and Low-Quality Barcodes
Improves scan reliability for damaged, faded, or difficult-to-read barcodes.
Compact Fixed-Mount Design
Easily integrates into kiosks, terminals, and self-service systems.
