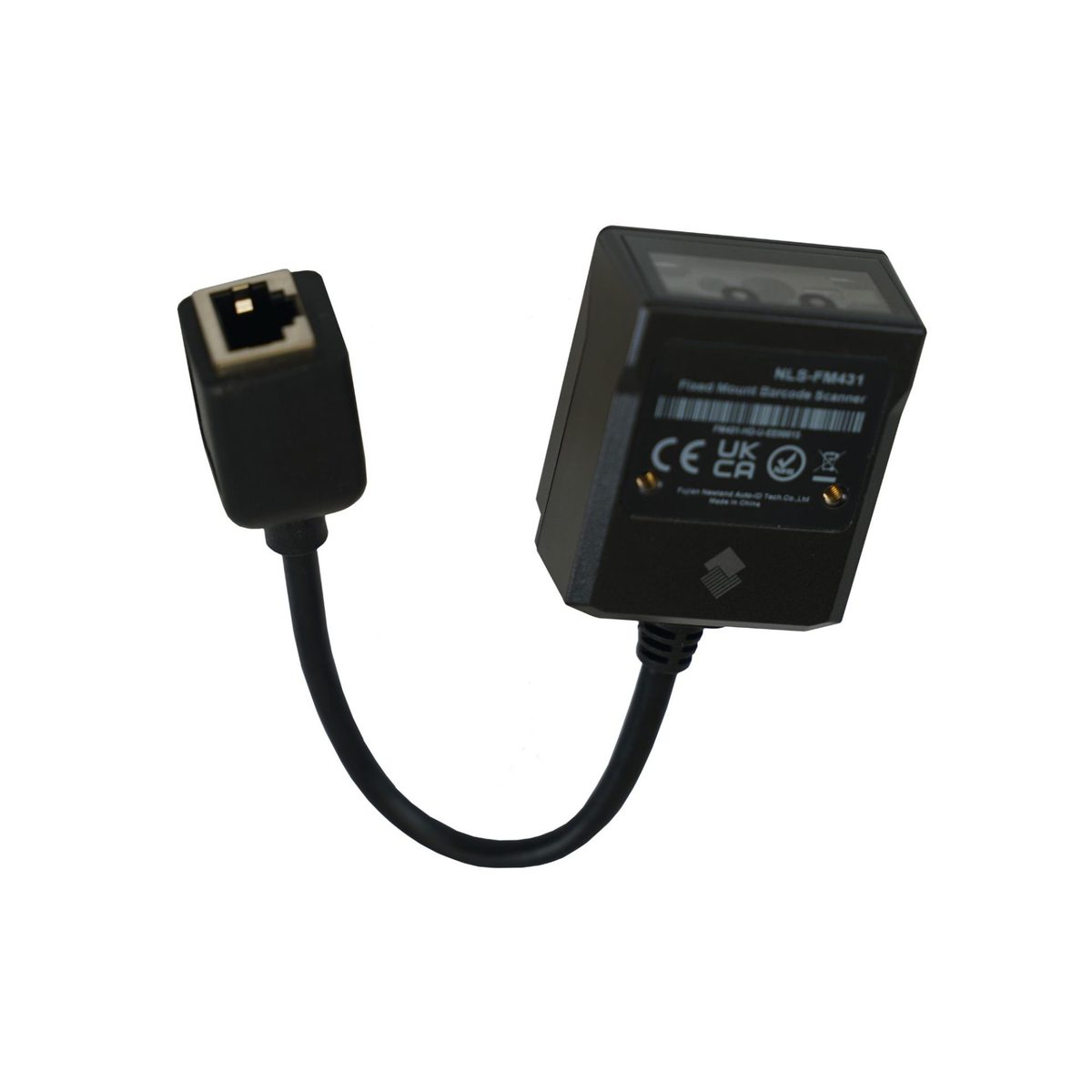

NLS-FM431-SR-U
Scanner · Kiosk · Compact 1D/2D Imager · Long Reading Distance · IP54 · USB Cable · Black
The NLS-FM431 kiosk barcode scanner delivers fast, long-range scanning for high-throughput self-service and warehouse environments. Designed for fixed-mount installation, it reads printed and mobile 1D and 2D barcodes with reliable performance across damaged, low-contrast, and difficult-to-read labels. Its extended scanning range and enhanced motion tolerance make it well-suited for parcel lockers, warehouse pickup stations, inventory kiosks, bulk retail environments, and logistics workflows where larger or harder-to-reach barcodes are common. Compact and easy to deploy, the FM431 helps support fast, reliable barcode scanning across demanding kiosk and self-service applications.
NLS-FM431-SR-U
NLS-FM431-SR-U — Complete Specifications
| Specification | Detail |
|---|---|
| Model | NLS-FM431-SR-U |
| Product Type | Fixed-Mount Kiosk Barcode Scanner |
| Image Sensor | 1280 × 800 CMOS |
| Illumination | 3000K White LED |
| Aiming | 518nm Green LED, 650nm Red Laser Aimer |
| Resolution | ≥3mil |
| 2D Symbologies | PDF417, QR Code, Data Matrix, Aztec, Micro QR, Micro PDF417, GM Code, Code One, and more |
| 1D Symbologies | Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Code 39, Codabar, Code 93, GS1 Databar, ISBN, ISSN, MSI-Plessey, and more |
| Postal Codes | USPS Postnet, Intelligent Mail, Royal Mail, KIX Post, Australia Post, Japan Post |
| Typical Depth of Field | Up to 460mm depending on barcode type and size |
| Motion Tolerance | 3.5m/s |
| Scan Angle | Roll: 360°, Pitch: ±55°, Skew: ±55° |
| Field of View | Horizontal: 51° | Vertical: 32° |
| Minimum Symbol Contrast | 25% |
| Connectivity | USB, RS-232 |
| Drop Resistance | 1.5m |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%–95% (Non-Condensing) |
| ESD Protection | ±15KV Air Discharge | ±8KV Direct Discharge |
| Sealing | IP54 |
| Dimensions | 41.5(W) × 49.5(D) × 24.7(H) mm |
| Weight | 56g |
| Certifications | FCC Part 15 Class B, CE EMC Class B, RoHS |

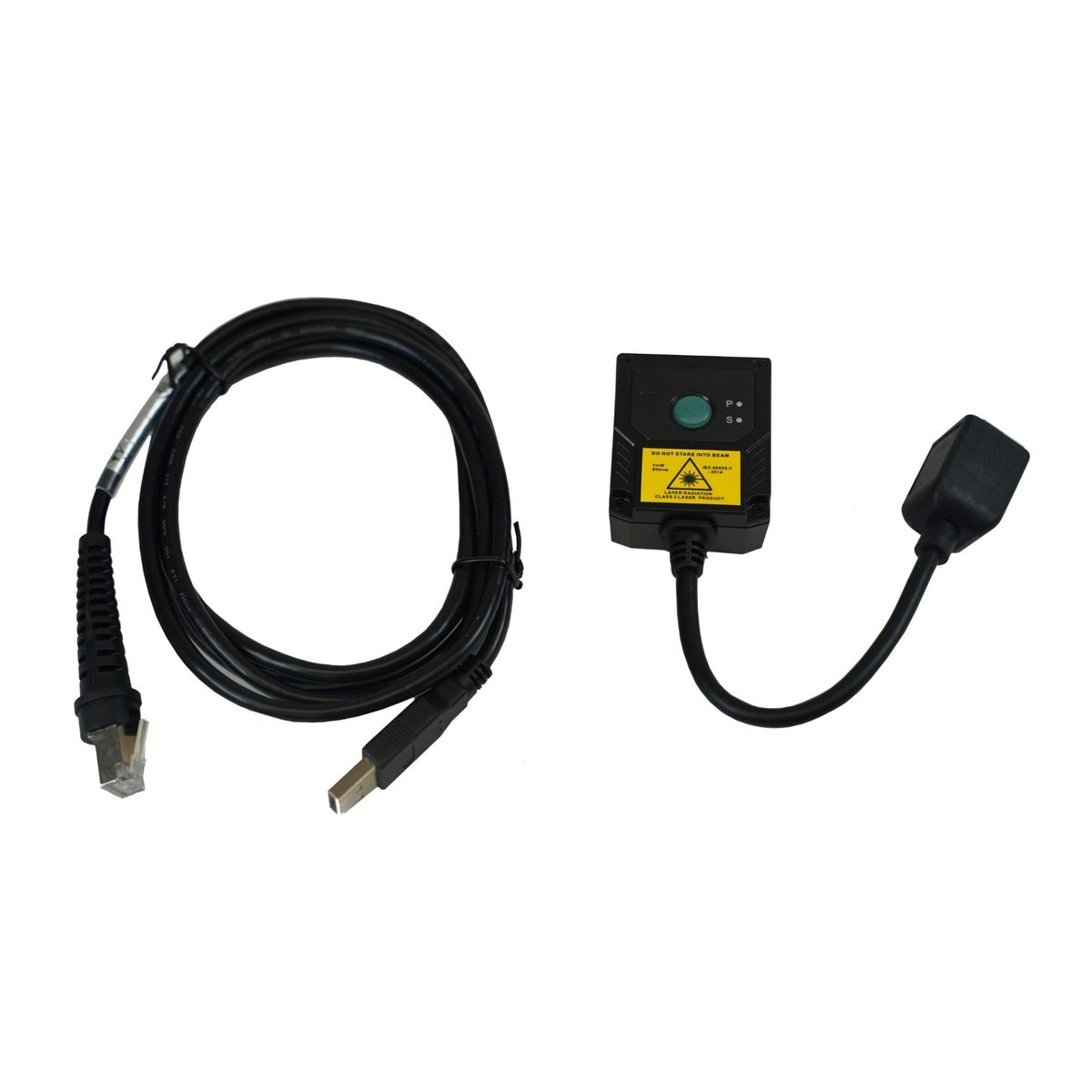

| Included in Box | Scanner, RJ45-to-USB-A Cable, Quick Start Guide |
| Color | Black |
Source: official Star Micronics product data.
8 Highlights
Long-Range Barcode Scanning
Captures large and difficult-to-reach barcodes in warehouse, parcel locker, and bulk retail environments.
Reads Mobile and Printed Barcodes
Supports scanning from smartphones, printed labels, tickets, and inventory barcodes.
Enhanced Motion Tolerance
Maintains reliable barcode capture in fast-moving, high-throughput scanning environments.
Reads Damaged and Low-Quality Barcodes
Improves scanning reliability for warped, faded, low-contrast, and poorly printed barcodes.
Dual-Aimer System
Provides precise barcode targeting for faster and more accurate scanning.
Automatic Exposure Control
Adjusts illumination automatically to help maintain scanning performance in varying lighting conditions.
Compact Fixed-Mount Design
Supports embedded installation in kiosks, parcel lockers, and self-service terminals.
USB and RS-232 Connectivity
Supports deployment across kiosk, warehouse, and industrial scanning environments.
