This product has been discontinued. We recommend the
ZD621
as the current-generation replacement. Contact us for upgrade options.
Desktop

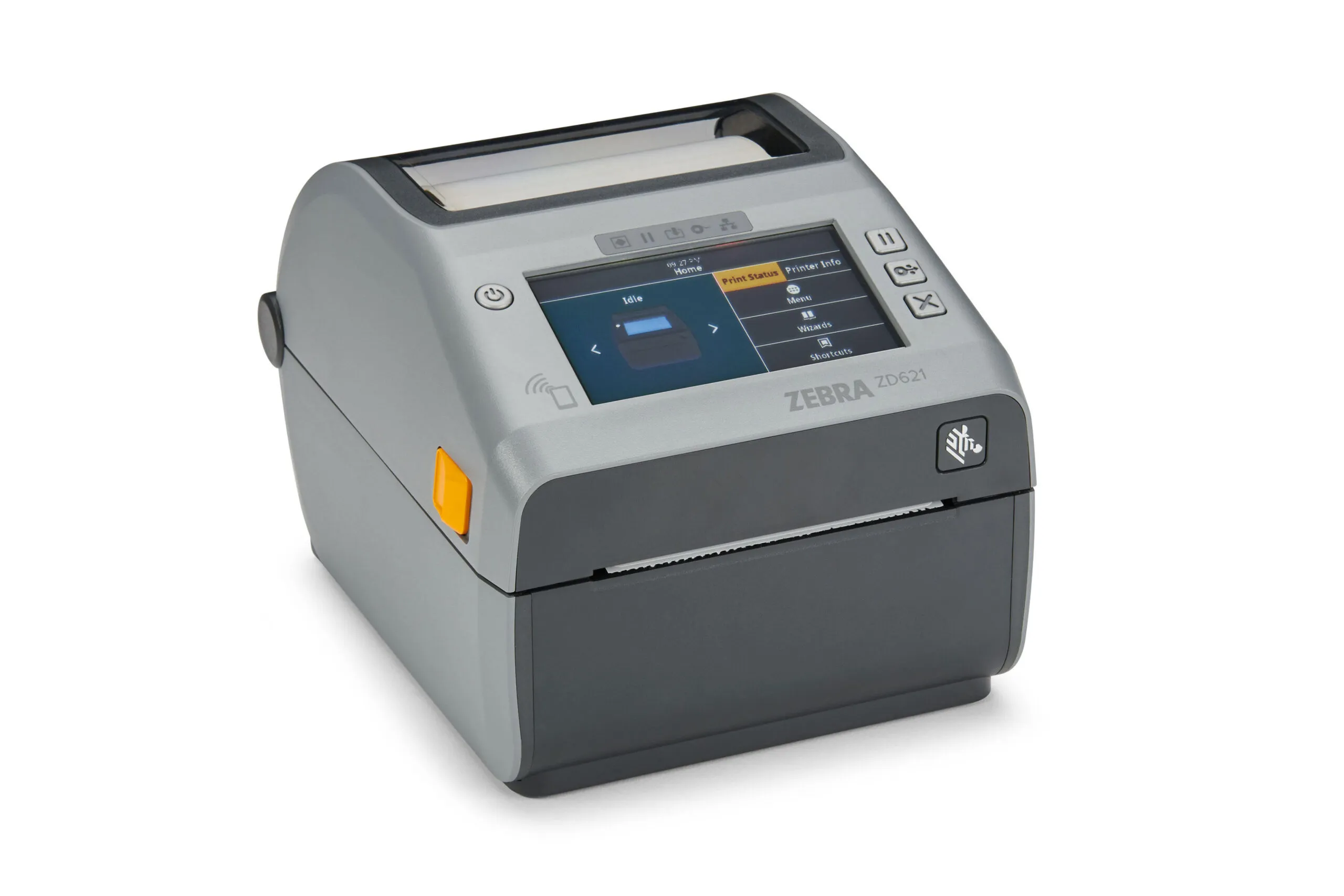

ZD600 Series
Premium Desktop Printer
The ZD600 Series delivers premium features, maximum performance and unmatched security for years of superior printing. Easy to operate, they include Zebra's exclusive Print DNA software suite for simple setup, management and security. Choose from direct thermal, thermal transfer, healthcare and RFID models (ZD621, ZD621R, ZD611, ZD611R).
Key Features
ZD600 Series
Print DNA Software
Zebra's exclusive software suite makes setup, management and security effortless
PrintSecure
Industry-first printer security solution prevents costly cyberattacks and downtime
RFID Models
ZD621R and ZD611R offer integrated UHF RFID encoding for smart label applications
8 ips Print Speed
Up to 8 inches per second at 203 dpi for high-throughput label production
Healthcare Models
IEC60601-1 certified power supply and disinfectant-ready design
OpenACCESS Design
Easy media loading with dual-wall frame construction for durability
Technical Specifications
ZD600 Series
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm), 300 dpi (12 dots/mm) optional |
| Max Print Width | 4.09 in./104 mm (203 dpi), 4.27 in./108 mm (300 dpi) |
| Max Print Speed | 8 ips / 203 mm/s (203 dpi), 6 ips / 152 mm/s (300 dpi) |
| Memory | 512 MB Flash, 256 MB SDRAM |
| Connectivity | Ethernet, Serial, USB 2.0, USB Host |
| Models | ZD621, ZD621R, ZD611, ZD611R |
| Languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| OS | Link-OS |
| Warranty | 2 years |
Ideal Applications
ZD600 Series
- Retail labeling
- Healthcare wristbands
- Shipping/receiving
- Asset tracking
- Compliance labeling
Full Specifications
Complete Specification Sheet
| Specification | Value |
|---|---|
| Physical Characteristics | |
| Dimension | ZD620d: 8.7 in. L x 7.0 in. W x 5.9 in. H 221 mm L x 177 mm W x 151 mm H ZD620t: 10.5 in. L x 8.0 in. W x 7.5 in. H 267 mm L x 202 mm W x 192 mm H |
| Weight | ZD620d: 3.6 lb/ 1.6 kg ZD620t: 5.3 lb/2.4 kg |
| Printer Specifications | |
| Operating System | Link-OS™ |
| Resolution | 203 dpi/8 dots per mm Optional 300 dpi/12 dots per mm Resolution can be factory installed or changed on site via accessory kits. Resolution can be changed from 300 dpi to 203 dpi, as well as from 203 dpi to 300 dpi |
| Memory | 512 MB Flash; 256 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi 4.27 in./108 mm for 300 dpi |
| Maximum Print Speed | 8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi) |
| Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor |
| Firmware | ZPL II; EPL 2; XML; ZBI |
| Media and Ribbon Characteristics | |
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | ZD620t — 0.585 in./15 mm to 4.65 in./118 mm ZD620d — 0.585 in./15 mm to 4.25 in./108 mm |
| Media Roll Size | Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in.(25.4 mm) standard, 1.5 in. (38.1 mm), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters |
| Media Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands, linerless media* * For use only with linerless printer model |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Ribbon Standard Length | 984 ft. (300 m); 244 ft. (74 m) |
| Ribbon Ratio | 1:4 media to ribbon (300 m) 1:1 media to ribbon (74 m) |
| Ribbon Width | 1.33 in./33.8 mm — 4.3 in./109.2 mm |
| Ribbon Core I.D. | 300 meter ribbon 1 in./25.4 mm 74 meter ribbon 0.5 in./12.7 mm |
| Operating Characteristics | |
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified; optional 2750 mAH battery |
| Media Handling | Factory installed dispenser — label peel and present with label present sensor Factory installed cutter Field installable aftermarket kits also available |
| Communications | Factory installed wireless radio: 802.11ac Wi-Fi and Bluetooth 4.1 |
| Battery | Provides power to the printer to support a full shift of printing at maximum print speed. Supports all media handling options |
| Keyboard Display Unit | ZKDU keyboard display units for stand-alone printing solutions |
| Media Locking Cabinet | Mechanical lock with 2 keys; Kensington™ lock slot; available on ZD620d Healthcare only |
| Carrying Case | Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application |
| Mounting Plate | Optional accessory to secure ZD Series printers to countertops or shelves |
| Enclosed Power Supply | Attached power supply accessory for cord-free installation |
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM |
| Options and Accessories | |
| Media Handling | Factory installed dispenser — label peel and present with label present sensor Factory installed cutter Field installable aftermarket kits also available |
| Communications | Factory installed wireless radio: 802.11ac Wi-Fi and Bluetooth 4.1 |
| Battery | Provides power to the printer to support a full shift of printing at maximum print speed. Supports all media handling options |
| Keyboard Display Unit | ZKDU keyboard display units for stand-alone printing solutions |
| Media Locking Cabinet | Mechanical lock with 2 keys; Kensington™ lock slot; available on ZD620d Healthcare only |
| Carrying Case | Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application |
| Mounting Plate | Optional accessory to secure ZD Series printers to countertops or shelves |
| Enclosed Power Supply | Attached power supply accessory for cord-free installation |
| Fonts/Graphics/Symbologies | |
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM |
