MG-S8200 US
SCALE · USB · BLE · LEGAL FOR TRADE IN US (NTEP) · 8200 g X 1g - Class II (g) Class III (oz · lbs) · AC ADAPTER USB CABLE INCLUDED

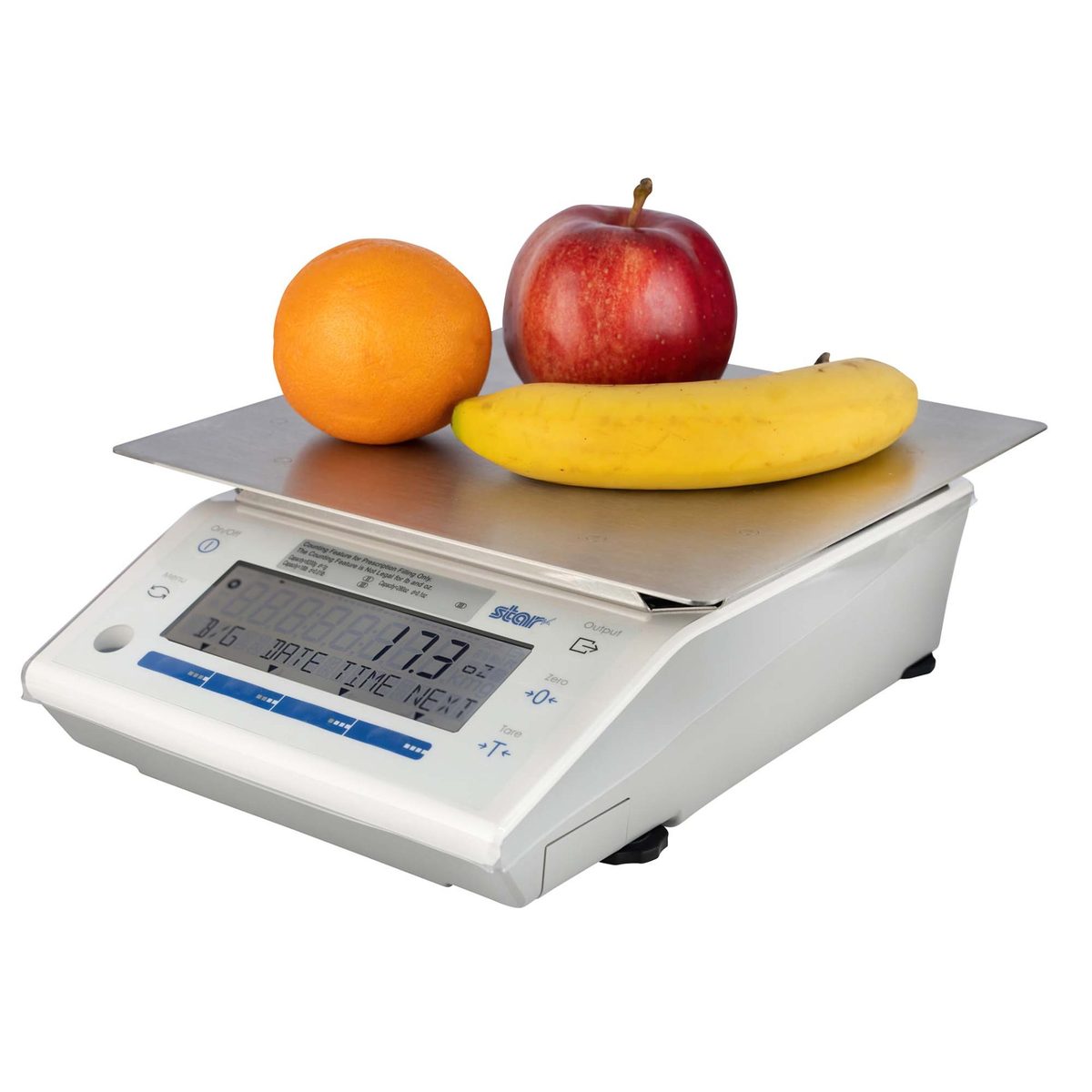

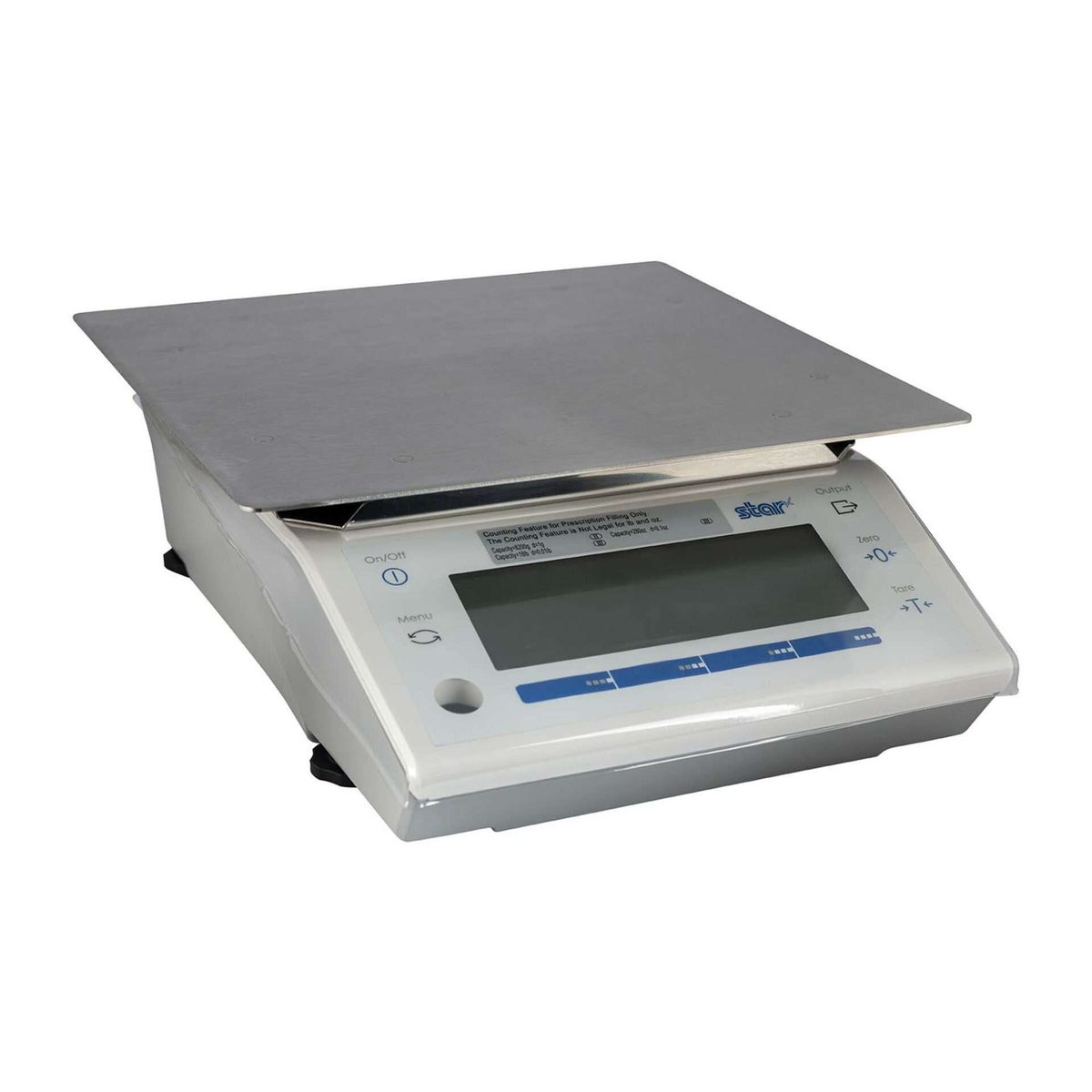

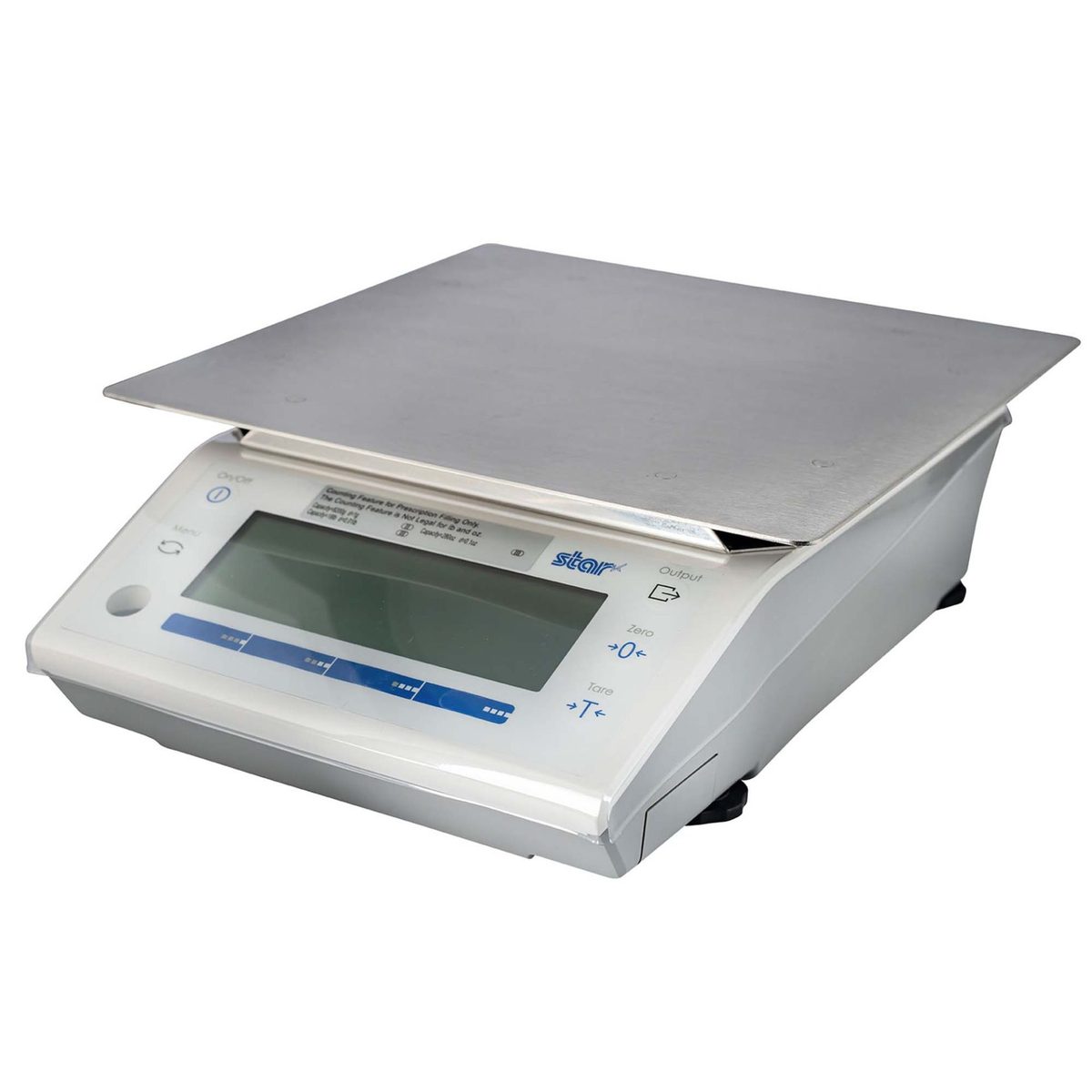

The NTEP-certified mG-S8200 is ideal for large-capacity measurements. The largest capacity of three of Star’s mG-Scales scales, the mG-S8200 can weigh small-scale inventory, produce, and some deli products. The capacity reaches up to 8200 g and measures in 1.0 g increments. Available with Extended Platter to weigh more items at one time. The platter measures 8.5” x 9” (WxL) with a stainless steel finish and is easy to install. Designed for modern retail, the POS scale is compatible with Windows, Android, and iOS and features interfaces including Bluetooth, USB, and serial.
MG-S8200 US
MG-S8200 US — Complete Specifications
| Specification | Detail |
|---|---|
| NTEP Certification | Legal for Trade |
| Max Capacity | 8200g, 18lb |
| Readability | 1.0g |

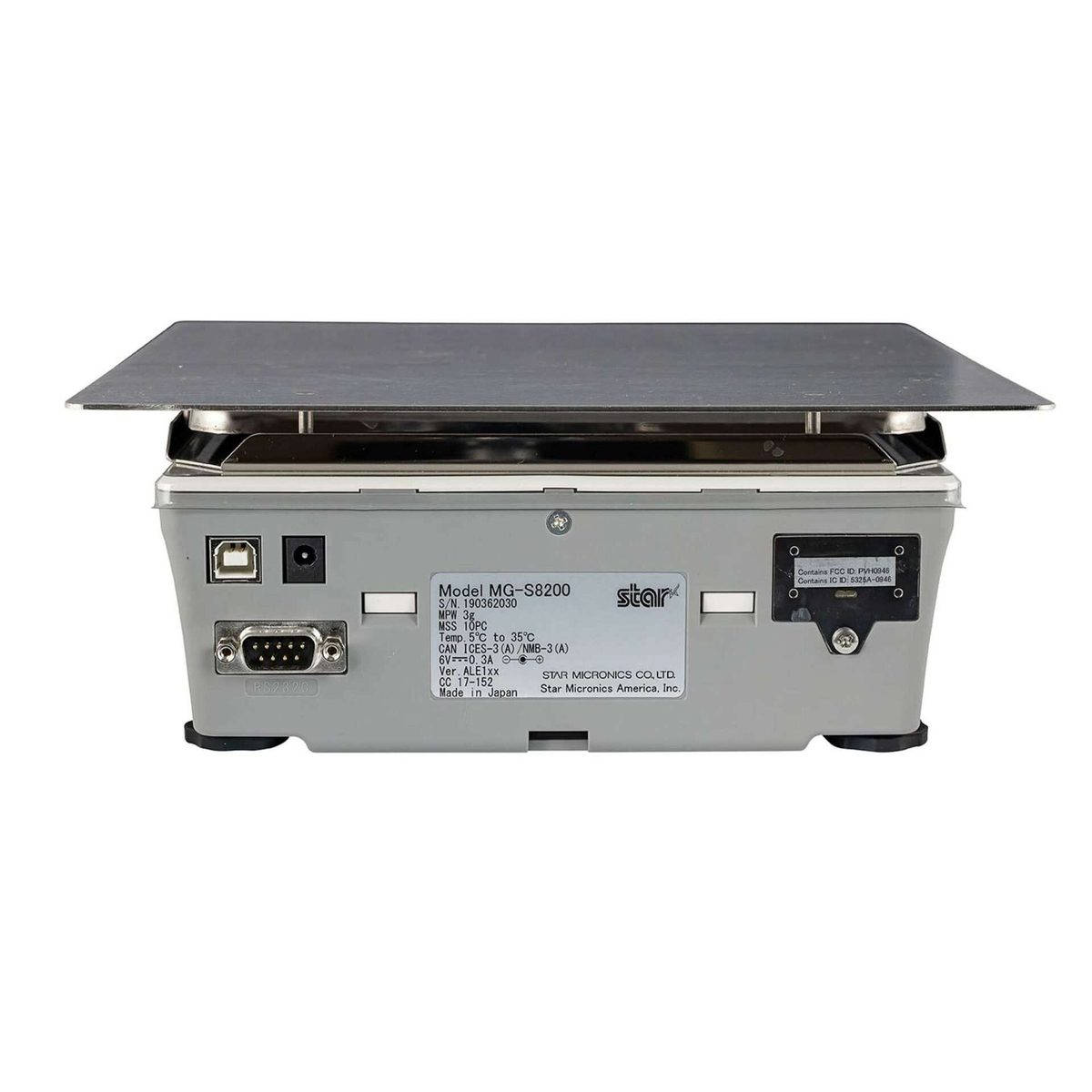

| Connectivity | Bluetooth v4.0, USB, Serial |
| Default Unit | Pounds (lb) |
| Unit Options | g (Gram), LB (pound), OZ (ounce), GN (grain), DWT (penny weight) |
| Class | II |
| Verification Intervals | 1.0g |
| Calibration | External |
| Power Supply | External AC Adapter (included), AA Battery Operated, or USB-bus powered |
| Stabilization Time | 1.6 sec. |
| Software Support | iOS SDK (BLE), Android SDK (BLE), Windows SDK (USB) |
| Overload Sensor | Standard |
| Tare Function | Standard |
| Zero Tracking | Standard |
| Counting Mode | Standard (min. piece weight 0.03g) |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, |
| Operating Conditions | Temperature: 5oC to 35oC Humidity: 0% - 85% RH (without condensation) |
| Dimensions | 190 X 260 X 85 (w x h x d)mm |
| Weighing Pan Dimensions | 180mm x 160mm (w x h) |
| Safety Standards | UL, C-UL, TuV, FCC, VCCI, EN55022, CE |
| Accessories Included | Square base pan, USB-B Cable, AC Adapter, Operations Manual, |
Source: official Star Micronics product data.
8 Highlights
NTEP Certified
Legal for Trade, meets 2018 requirements
Future-Proof
Connect one scale with either Serial, USB, or Bluetooth
Windshield
For protection during sensitive measurements
Mobile Power Supply
Battery powered for mobile situations
Unique Tuning Fork
Patented Tuning Fork design for NTEP requirements
Easy User Experience
Simple to connect and operate
Tare Function
Able to measure products in a container
Counting Function
Able to count products by weight
